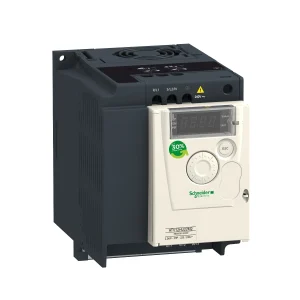

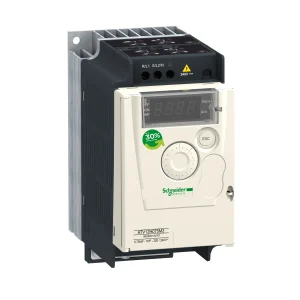

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings. · · · This Altivar 12 variable speed drive can feed single phase asynchronous motors. · · It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. · · It is designed with heatsink for normal environments and fan-cooled enclosure. · · Transient overtorque function prevents stoppages by unjamming the machine with extra torque, when needed, this reduces downtime and maintenance costs. · · It features underload and overload detection, this contribute to protect your installation. · · The Altivar 12 drive integrates as standard the Modbus communication protocol, which can be accessed via the RJ45 connector located on the underside of the drive. · · Shock resistance: 15gn · · Supply frequency: 50 – 60Hz · · It is designed for simple industry and commercial machines and appliances, such as conveyors, pumps, extractors, access barriers and treadmills. · · IP20 Degree of protection

Schneider 3 Phase compact synchronous/asynchronous motors variable speed drive built specifically for complex machines. This starter is assembled with a heat sink included as well as an integrated bypass function. The display on this soft starter features 1 green LED (signalling CANopen run) and 2 red LEDs (1 signalling CANopen error, 1 signalling drive fault). · · · This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. · · Its compact form factor allows vertical stacking of drives inside machine frames. · · It works at a rated power up to 1.5kW / 2hp and a rated voltage from 380V to 500V AC. · · Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. · · It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. · · Vibration resistance: 1gn · · Shock resistance: 15gn · · Supply frequency: 50 – 60Hz · · Ambient operating temperature: -10°C to 50°C · · IP20 Degree of protection
