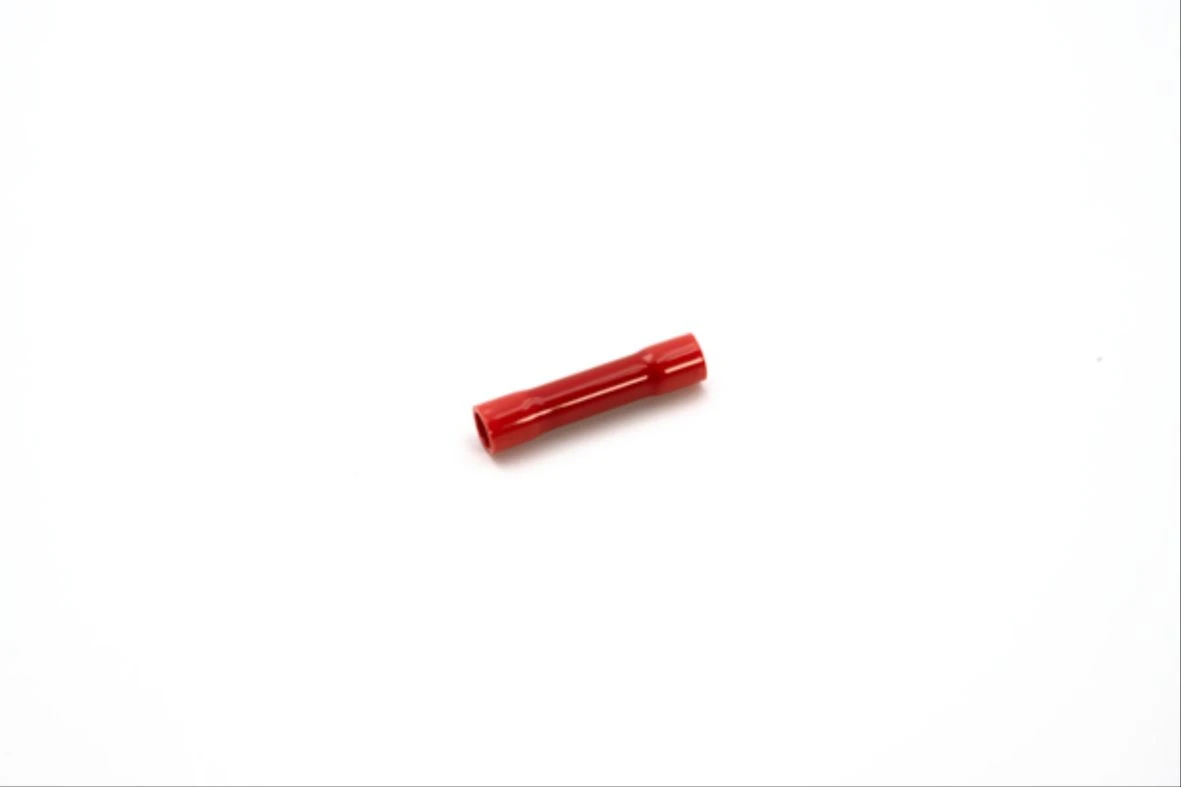

0.25mm²-1.5mm² PVC Insulated Butt Connector Red
0.25mm²-1.5mm² PVC Insulated Butt Connector Red
0.25mm²-1.5mm² PVC Insulated Butt Connector Red - Image 2
0.25mm²-1.5mm² PVC Insulated Butt Connector Red - Image 3

0.25mm²-1.5mm² PVC Insulated Butt Connector Red

£0.11 Incl. VAT

0.25mm²-1.5mm² PVC insulated butt connector red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility

700 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PL03-M Categories: , , Brand: Part Number: 2500221820

Description

Technical Specifications  Technical Specifications Crimp splices for copper conductor Sleeve form Long Voltage row Up to 600 V Material Copper Insulation Polyvinyl chloride (PVC) Type of connection Percussion connector Nominal cross section 0.25 – 1.5 mm² Nominal current – A Number of branches – Colour insulation Red Model Standard version Surface protection Tinned AWG-range 22 – 16 For pull protected connections No Suitable for solid cores No Oil stop/centre bar Yes Suitable for fine strand conductors Yes Suitable for flat conductors No Suitable for insulated varnish No Suitable for high temperatures (to 650 °C) No Suitable for round conductors Yes Useful for stranded conductors Yes · Technical Data Sheet – Click to Download
