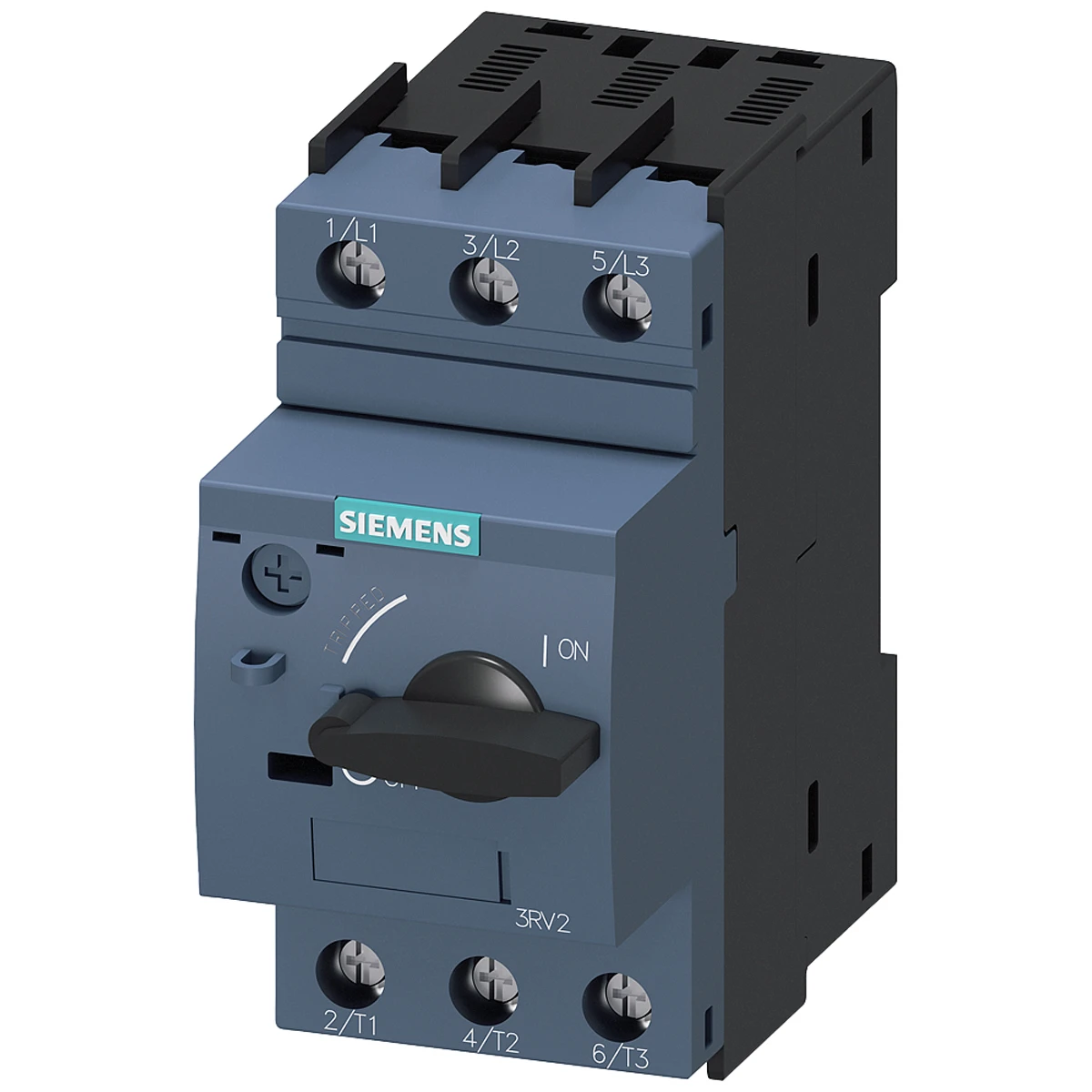

Siemens 045-063A Class10 Screw Terminal
Siemens 045-063A Class10 Screw Terminal
Siemens 045-063A Class10 Screw Terminal - Image 2
Siemens 045-063A Class10 Screw Terminal - Image 3

Siemens 045-063A Class10 Screw Terminal

£67.31 Incl. VAT

Siemens size S00 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Screw terminals & spring-type terminals available. · · Manual motor controllers. · · Self-protected combination motor controller (Type E). · · IP20 protection rating. · · 690V Operating voltage. · · CLASS-10 trip class. · · -20 to 60°C Operating temperature. · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2011-0GA10 Categories: , , , Brand: Product Code: 1050391767

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Switch off technique Magnetic Type of control element Rotating button Degree of protection (IP rating) IP20 Type of electrical connection of main circuit Screw connection Device construction Suitable for fixed installation Number of poles 3 Width 45 mm Rated permanent current Iu 0.63 A Rated operation power at AC-3, 400 V 0.18 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Rated operation power at AC-3, 230 V 0.09 kW Height 97 mm Depth 97 mm Overload release current setting 0.45 – 0.63 A Rated operating voltage 690 – 690 V Adjustment range undelayed short-circuit release 8.2 – 8.2 A With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes With thermal overload protection Yes · Technical Data Sheet – Click to Download
