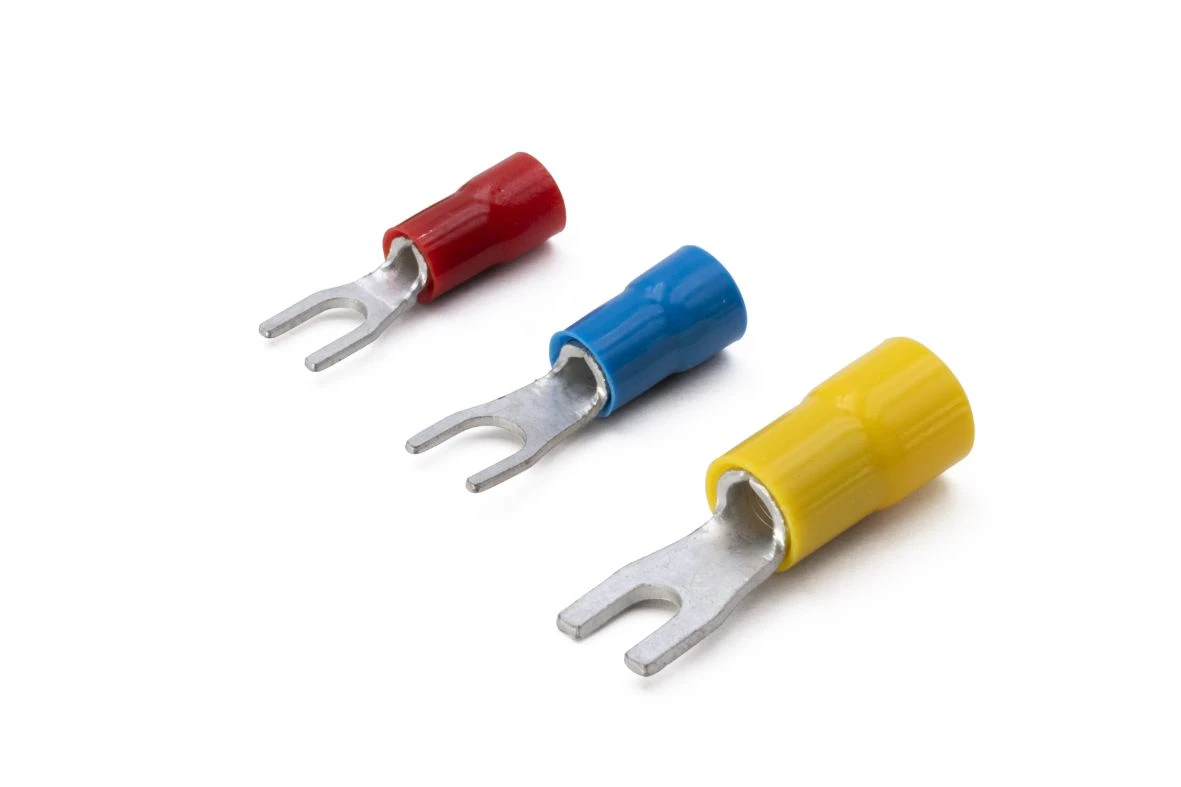

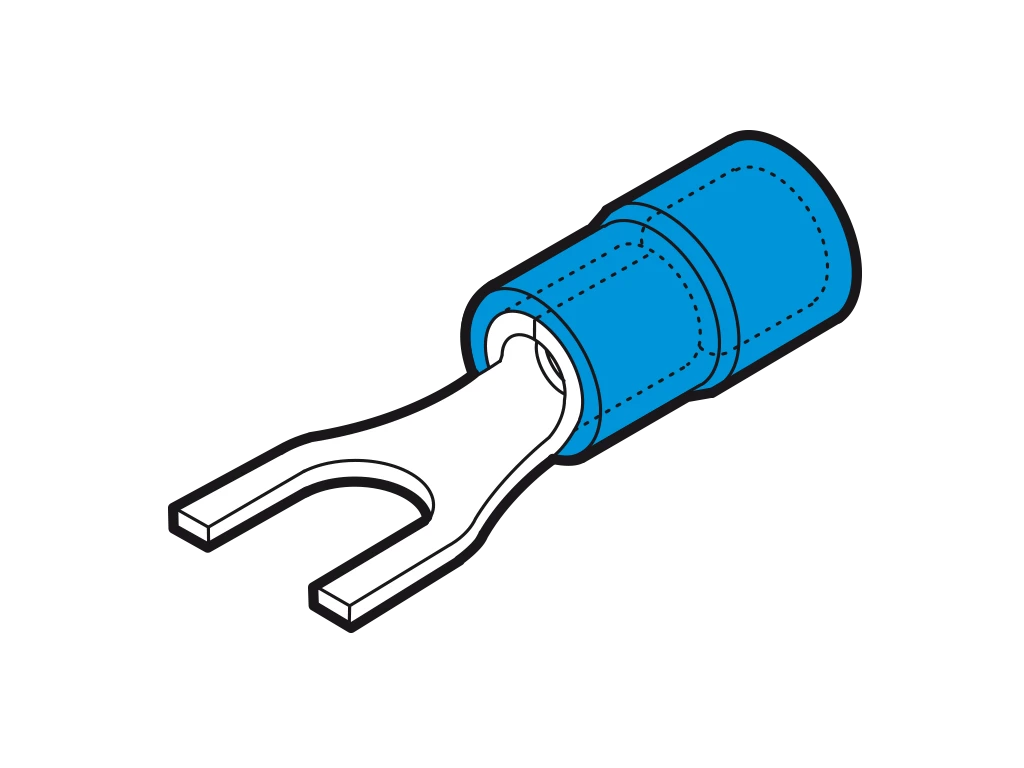

1.5mm²-2.5mm² Fork Terminal 3.2mm Blue [Pack of 100]
1.5mm²-2.5mm² Fork Terminal 3.2mm Blue [Pack of 100]
1.5mm²-2.5mm² Fork Terminal 3.2mm Blue [Pack of 100] - Image 2
1.5mm²-2.5mm² Fork Terminal 3.2mm Blue [Pack of 100] - Image 3
1.5mm²-2.5mm² Fork Terminal 3.2mm Blue [Pack of 100] - Image 4

1.5mm²-2.5mm² Fork Terminal 3.2mm Blue [Pack of 100]

£0.07 Incl. VAT

1.5mm²-2.5mm² PVC insulated fork terminal 3.2mm fork width blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Diameter: 4.9 mm · · Length Min Max: 19.6 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 486A EEC 73/23 UNI EN 1652

8600 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-U3 Categories: , , Brand: Part Number: 2500221870

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Colour insulation Blue Sleeve form Short Material Copper Surface protection Tinned Insulation Polyvinyl chloride (PVC) Flange shape Fork shape Bolt dimension (metric) 3.5 Max. current (Imax) – A Suitable for high temperatures (to 650 °C) No Suitable for solid cores No According to DIN No Useful for stranded conductors Yes Suitable for insulated varnish No Suitable for fine strand conductors Yes Nominal cross section 1.5 – 2.5 mm² AWG-range 16 – 14 Suitable for round conductors Yes Suitable for flat conductors No Reel packaging No For pull protected connections No
