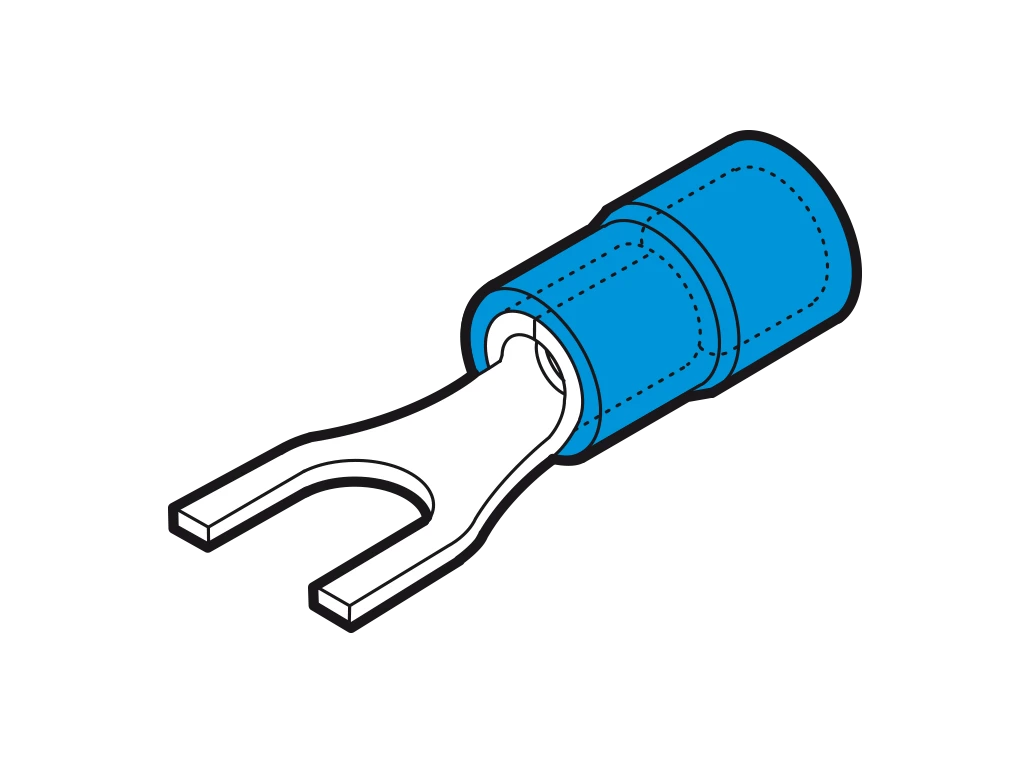

Cembre 1.5mm²-2.5mm² fork terminal 6.4mm blue [Pack of 100]
Cembre 1.5mm²-2.5mm² fork terminal 6.4mm blue [Pack of 100]
Cembre 1.5mm²-2.5mm² fork terminal 6.4mm blue [Pack of 100] - Image 2
Cembre 1.5mm²-2.5mm² fork terminal 6.4mm blue [Pack of 100] - Image 3
Cembre 1.5mm²-2.5mm² fork terminal 6.4mm blue [Pack of 100] - Image 4

Cembre 1.5mm²-2.5mm² fork terminal 6.4mm blue [Pack of 100]

£0.11 Incl. VAT

1.5mm²-2.5mm² PVC insulated fork terminal 6.4mm fork width blue · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BF-U6 Categories: , , Brand: Product Code: 2500221890

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Colour insulation Blue Material Copper Flange shape Fork shape Surface protection Tinned Insulation Polyvinyl chloride (PVC) Max. current (Imax) – A Bolt dimension (metric) 6 Nominal cross section 1.5 – 2.5 mm² For pull protected connections No Reel packaging No Suitable for solid cores No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for insulated varnish No · Technical Data Sheet – Click to Download
