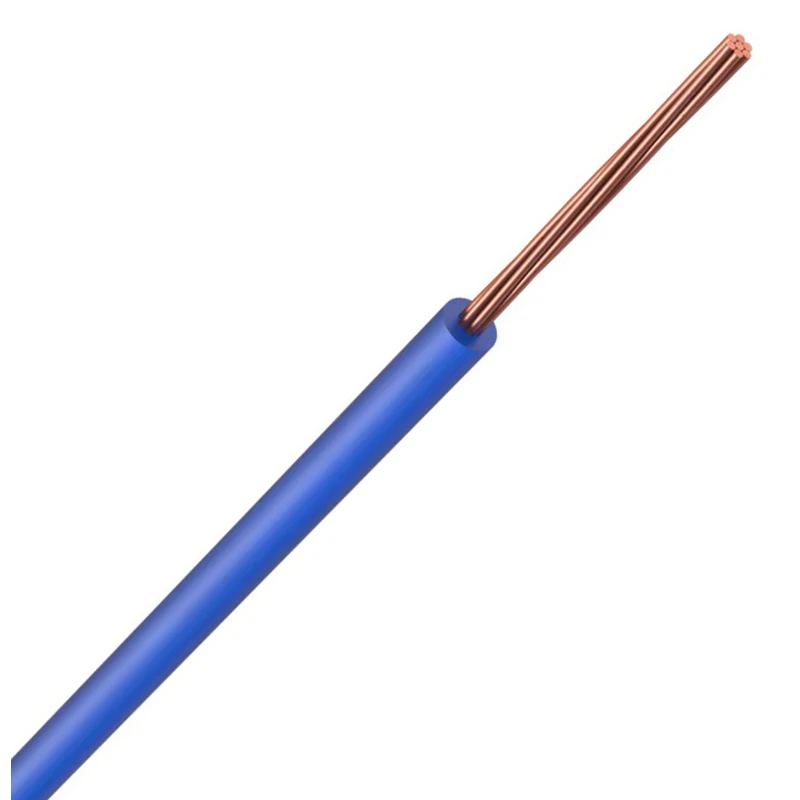

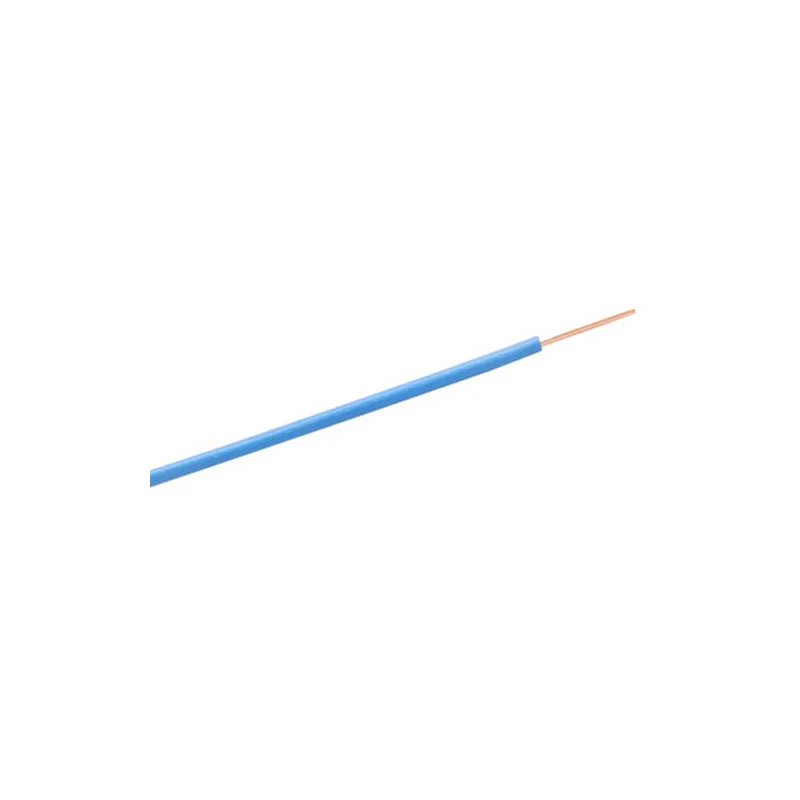

Commodity Cables 6491X 1.5mm² Blue PVC Basec Cable Single 1-Core

Brand: Commodity CablesProduct code: 6491X-1.5-BLU100 CABLE-RXGo Magpie Ref: 5060062301925

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X1.5 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sys · · · Cable Size: 1.5mm · · Colour: Blue · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

£43.56inc VAT£36.30 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Sheath colour Blue Core colour Blue Conductor material Copper Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 750 V Min. permitted bending radius, stationary application/permanent installation 18 mm Max. conductor temperature 70 °C Outer diameter approx. 3 mm Nominal voltage U0 450 V Number of cores 1 Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Twisted cores No · Technical Data Sheet – Click to Download
