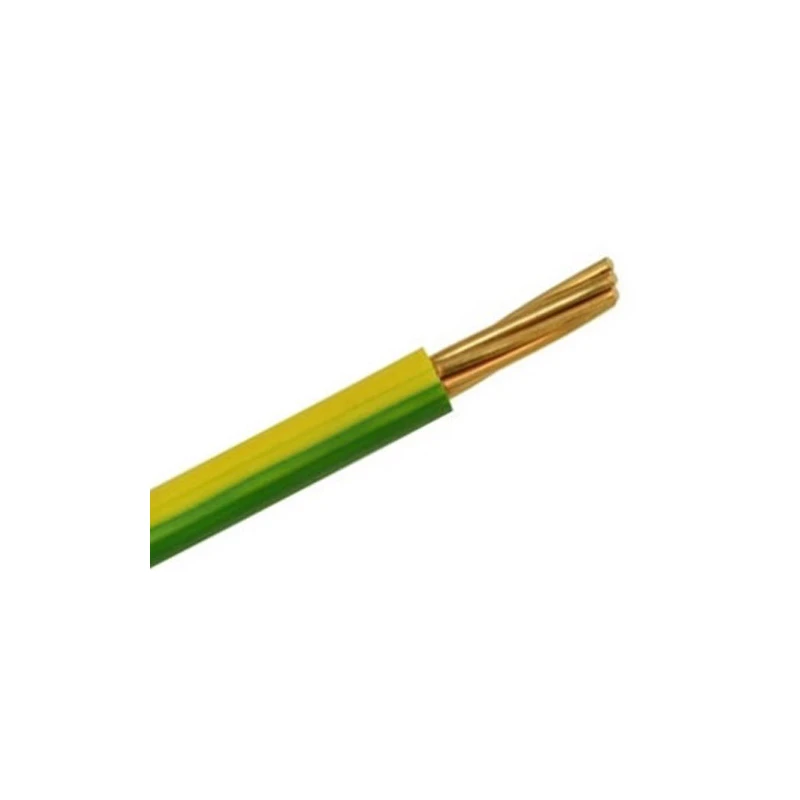

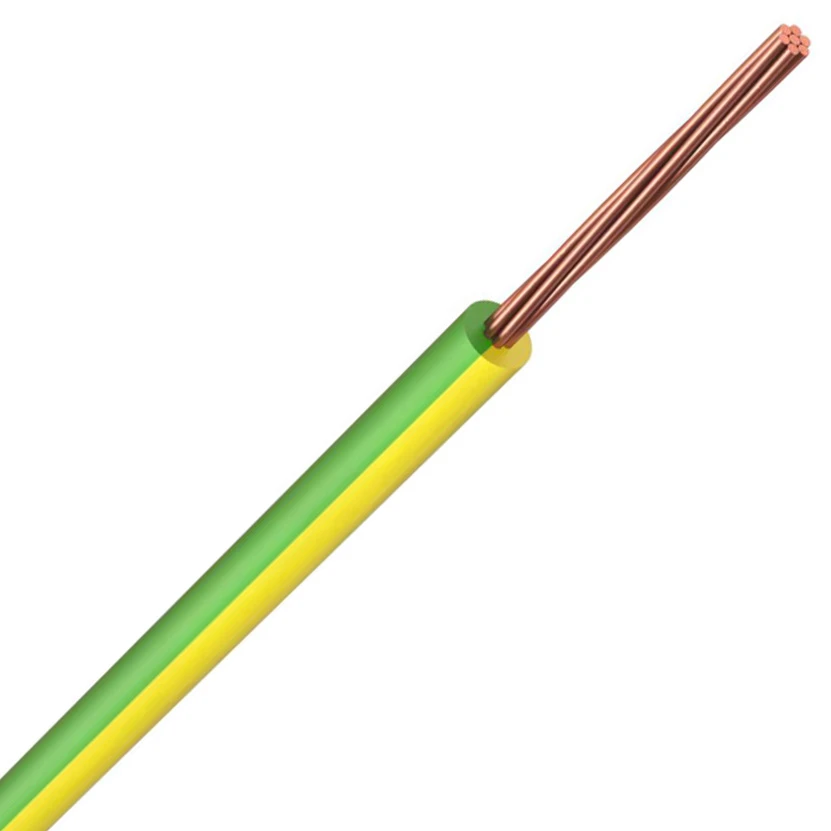

Commodity Cables 6491X 1.5mm² Green/Yellow PVC Basec Cable Single 1-Core
Commodity Cables 6491X 1.5mm² Green/Yellow PVC Basec Cable Single 1-Core
Commodity Cables 6491X 1.5mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 2
Commodity Cables 6491X 1.5mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 3
Commodity Cables 6491X 1.5mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 4

Commodity Cables 6491X 1.5mm² Green/Yellow PVC Basec Cable Single 1-Core

Pack of 100

£38.28 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X1.5 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sys · · · Cable Size: 1.5mm · · Colour: Green/Yellow · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-1.5-G/Y100 CABLE-RX Categories: , Brand: Product Code: 2500003435

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Sheath colour Blue Core colour Blue Sheath material Polyvinyl chloride (PVC) Conductor material Copper Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Core identification Colour Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 750 V Conductor Diameter 1.5 mm Number of cores 1 Nominal voltage U0 450 V Min. permitted bending radius, stationary application/permanent installation 18 mm Max. conductor temperature 70 °C Outer diameter approx. 3 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Twisted cores No · Technical Data Sheet – Click to Download
