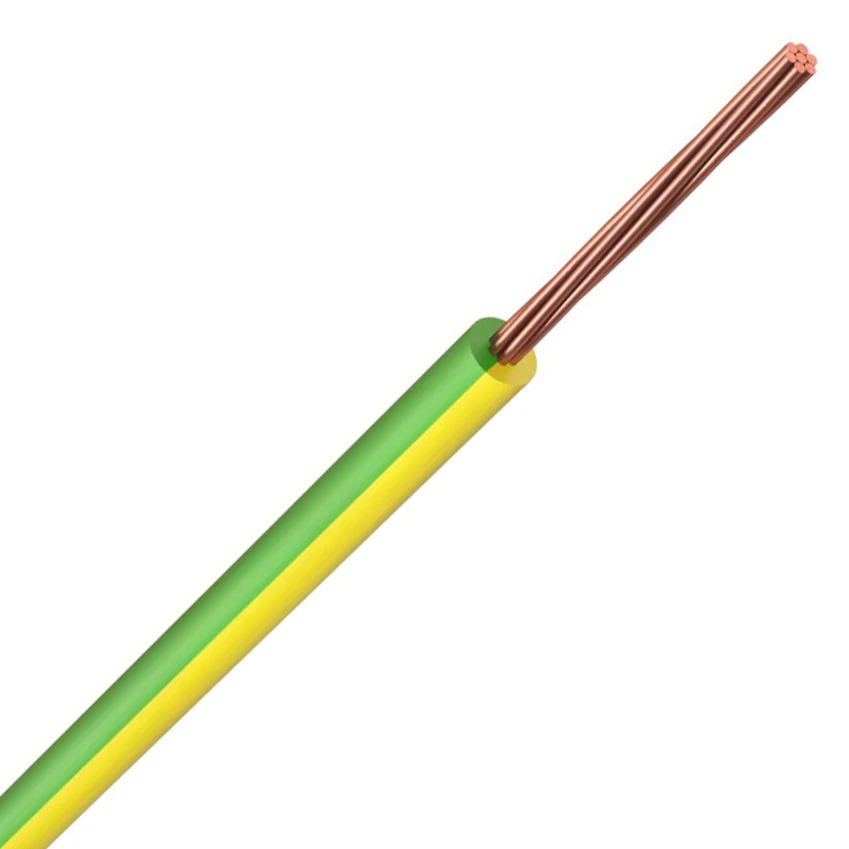

Commodity Cables 6491X 16.0mm² Green/Yellow PVC Basec Cable Single 1-Core
Commodity Cables 6491X 16.0mm² Green/Yellow PVC Basec Cable Single 1-Core
Commodity Cables 6491X 16.0mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 2
Commodity Cables 6491X 16.0mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 3
Commodity Cables 6491X 16.0mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 4

Commodity Cables 6491X 16.0mm² Green/Yellow PVC Basec Cable Single 1-Core

Pack of 100

£411.84 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X16.0 is a General Purpose Single Core Cable for use in conduit and trunking. 6491X Cable also known as H07-U and H07-R is a plain annealed copper stranded circular conductor. It is installed in surface mounted or embedded conduit or similar closed sy · · · Cable Size: 16.0mm · · Colour: Green/Yellow · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-16.0-G/Y100 CABL-RX Categories: , Brand: Product Code: 2500003530

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Sheath colour Brown Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Conductor Diameter 16 mm Nominal cross sectional area of conductor 16 mm² Nominal voltage U 750 V Nominal voltage U0 450 V Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 42 mm Outer diameter approx. 6.9 mm Number of cores 1 Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
