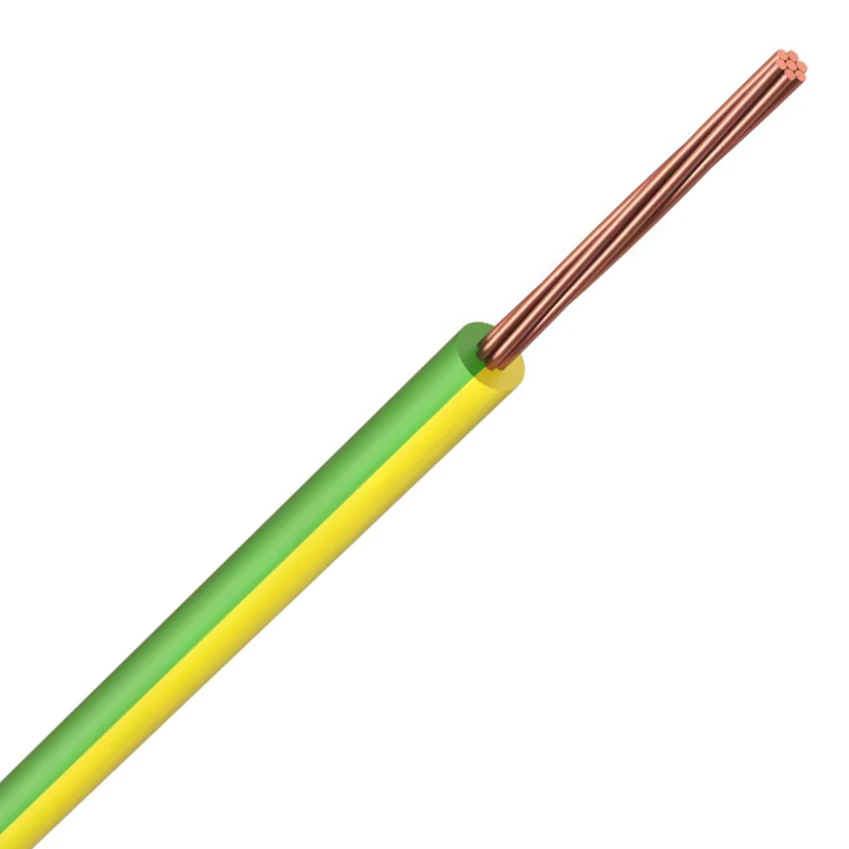

Commodity Cables 6491X 2.5mm² Green/Yellow PVC Basec Cable Single 1-Core
Commodity Cables 6491X 2.5mm² Green/Yellow PVC Basec Cable Single 1-Core
Commodity Cables 6491X 2.5mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 2
Commodity Cables 6491X 2.5mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 3
Commodity Cables 6491X 2.5mm² Green/Yellow PVC Basec Cable Single 1-Core - Image 4

Commodity Cables 6491X 2.5mm² Green/Yellow PVC Basec Cable Single 1-Core

Pack of 100

£56.76 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. Solid conduit wire 450/750V voltage rated. · · · Cable Size: 2.5mm · · Colour: Green/Yellow · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-2.5-G/Y100 CABLE-RX Categories: , Brand: Product Code: 2500003436

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Sheath colour Blue Core colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Sheath material Polyvinyl chloride (PVC) Core identification Colour Nominal cross sectional area of conductor 2.5 mm² Nominal voltage U 750 V Conductor Diameter 2.5 mm Number of cores 1 Nominal voltage U0 450 V Min. permitted bending radius, stationary application/permanent installation 22 mm Max. conductor temperature 70 °C Outer diameter approx. 3.6 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Twisted cores No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
