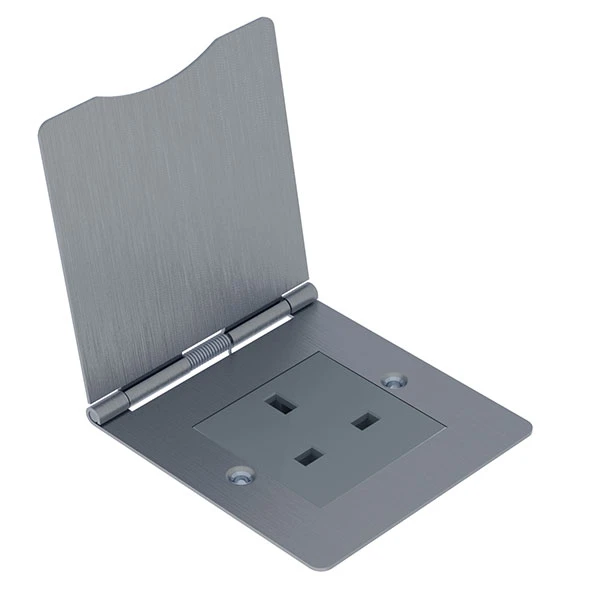

BG 1 Gang 13A Floor Socket Outlet

The flat profile of the SBS24G/FR ensures it can be embedded into a floor discreetly and easily, and its easy-to-maintain brushed stainless-steel finish gives a quality appearance for when it isn’t hidden from view. Suitable for a huge range of both commercial and domestic applications, it features two standard 3-pin sockets and is rated at 13A for greatest versatility.Fitted onto the frame is a spring-loaded cover so that the socket is protection from dirt and other particle ingress when not in use. With the front-plate held on by matching screws one can be sure of a secure, sleek finish, and the socket itself can be easily retrofitted into existing backboxes (minimum 25mm depth required). The socket also has backed out captive terminal screws to aid installation further. Twin earth terminals are fitted to facilitate a double earth connection, for when a high-integrity installation is required. · · · With spring hinged cover · · Manufactured to BS 1363 Part 2 · · Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008 · · Minimum mounting box depth 25mm
