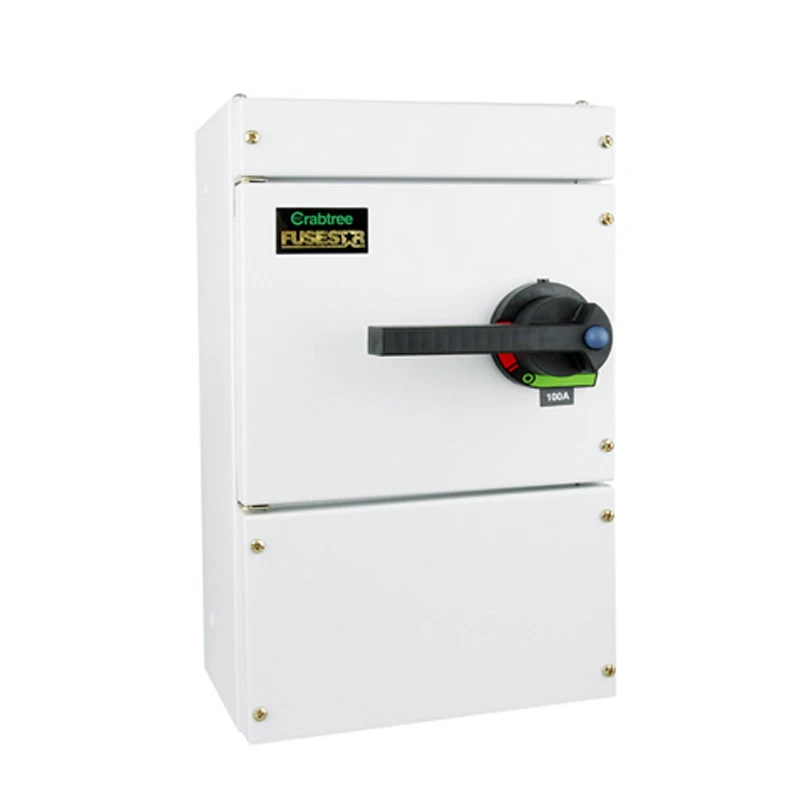

Crabtree 100A 3P+N Fuse Combination Unit c/w Fuses
Crabtree 100A 3P+N Fuse Combination Unit c/w Fuses

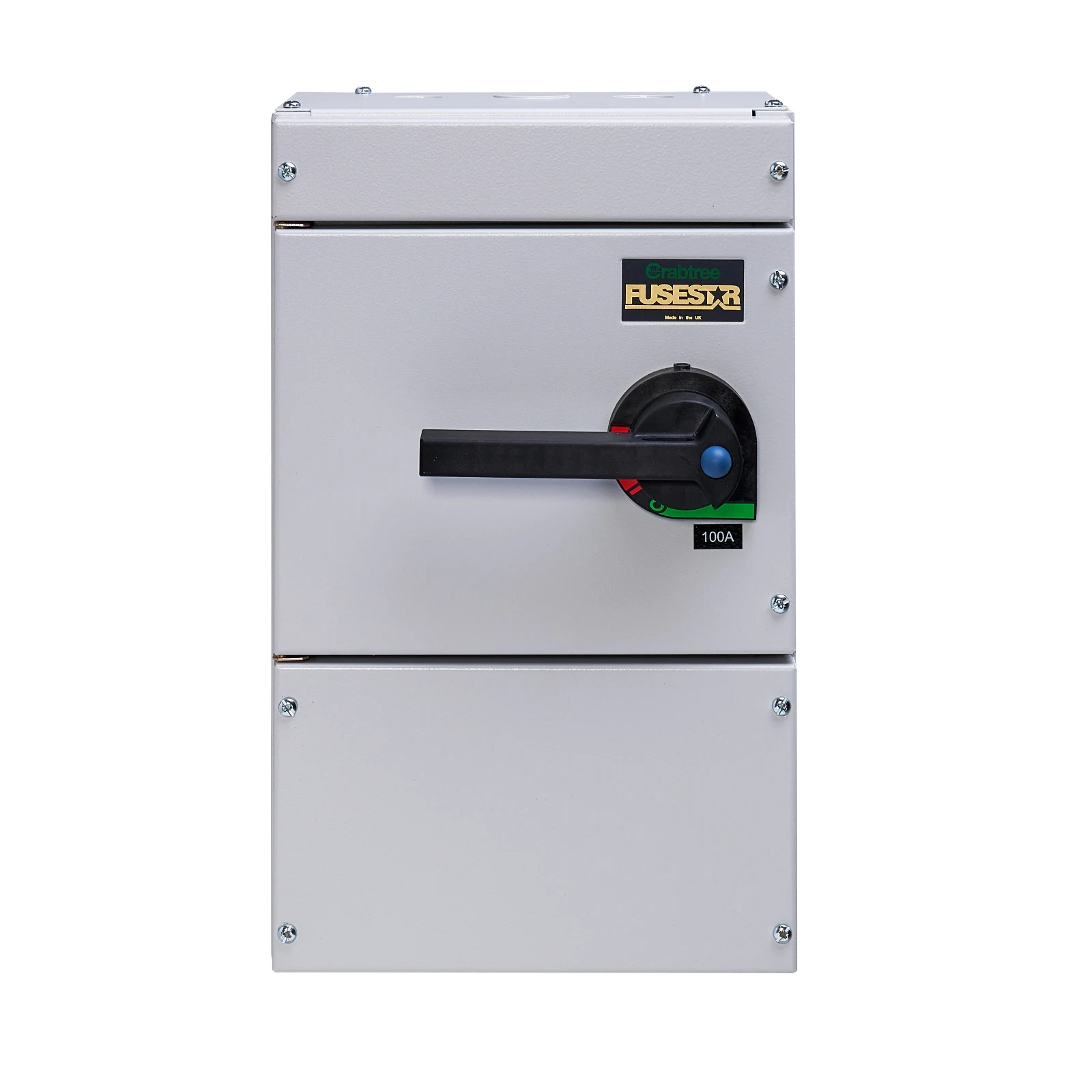

Crabtree 100A 3P+N Fuse Combination Unit c/w Fuses - Image 2
Crabtree 100A 3P+N Fuse Combination Unit c/w Fuses - Image 3

Crabtree 100A 3P+N Fuse Combination Unit c/w Fuses

£422.23 Incl. VAT

The Crabtree Fuse Consumer Unit is designed to exceed the requirements of EN 60947-3 and IEC 947-3, to ensure quality and competitiveness. Suitable for isolation of circuits, with a utilisation category AC23A and a Fused short-circuit capacity of 80kA. Th · · · Supplied with 100A fuses. · · Painted RAL 7035 steel enclosure 425mmH x 263mmW x 188mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 70mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (19100CSB) is required. · · Frequency rating 50/60 Hz · · Handle padlocking facility locks switch & door in off position · · Fused Short Circuit, 80kA RMS · · Switching speed totally operator independent · · Handle padlockable on or off

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 191003NF Categories: , , Brand: Product Code: 2500055397

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Number of poles 3 Rated permanent current Iu 100 A Conditioned rated short-circuit current Iq 20 kA Rated operation power at AC-23, 400 V 37 kW Rated short-time withstand current lcw 1.5 kA Max. rated operation voltage Ue AC 415 V Suitable for busbar mounting No Motor drive integrated No Version as main switch Yes Version as emergency stop installation No Version as safety switch No With error protection No Motor drive optional No Equipped with connectors Yes · Technical Data Sheet – Click to Download
