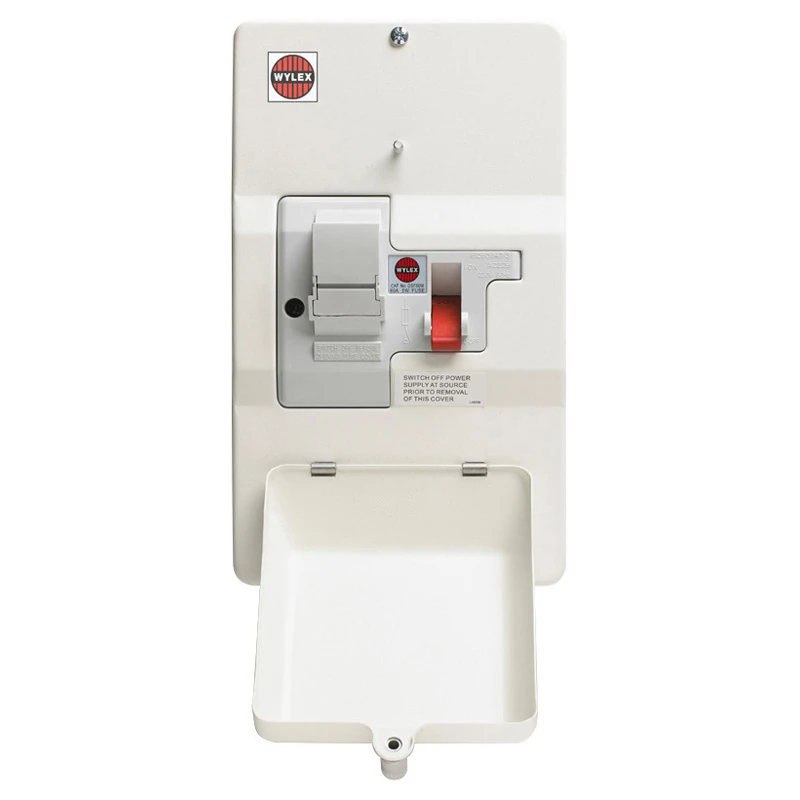

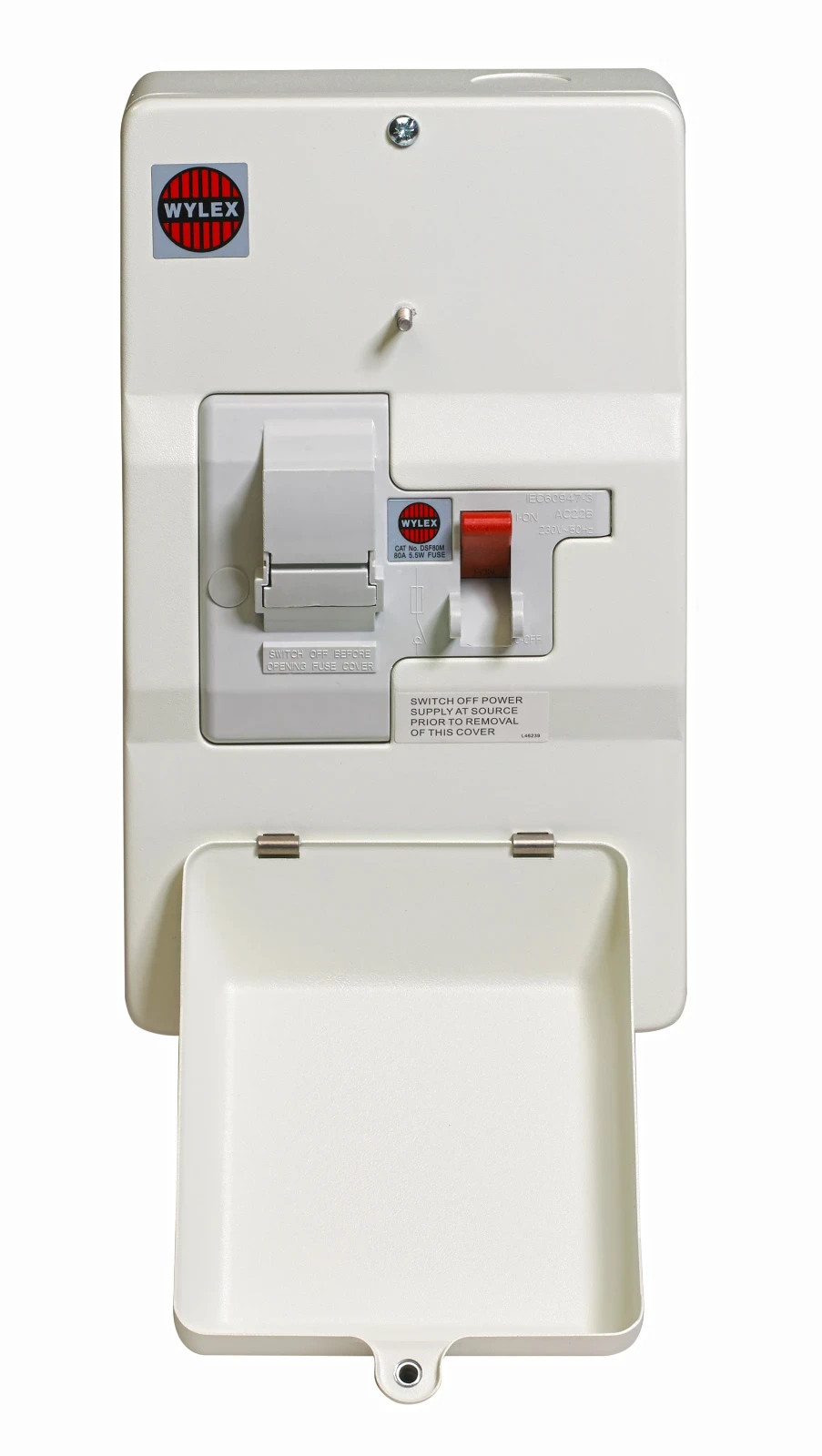

100A DP, Metal Enclosed, Domestic Switch Fuse with 80A Fuse Fitted
100A DP, Metal Enclosed, Domestic Switch Fuse with 80A Fuse Fitted
100A DP, Metal Enclosed, Domestic Switch Fuse with 80A Fuse Fitted - Image 2
100A DP, Metal Enclosed, Domestic Switch Fuse with 80A Fuse Fitted - Image 3

100A DP, Metal Enclosed, Domestic Switch Fuse with 80A Fuse Fitted

£100.03 Incl. VAT

A Switch Fuse Unit enclosed in a robust all metal enclosure, suitable for use with the domestic household premises. Metal door and robust metal enclosure, 1mm thick steel with low smoke and fume epoxy paint finish, live and neutral cable capacity 16mm² minimum and 35mm² maximum and 16mm earth terminating point inside enclosure. · · · Domestic switch fuse (cw 80A fuse) · · Double pole lockable switch mechanism · · All metal enclosure · · For the connection of sub mains or system extensions

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DSF80M Categories: , , Brand: Part Number: 2500826791

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Conditioned rated short-circuit current Iq 16 kA Max. rated operation voltage Ue AC 400 V Number of poles 2 Rated permanent current Iu 100 A Rated operating voltage 230 – 400 V Suitable for distribution board installation No Version as main switch No Interlockable No Version as maintenance-/service switch Yes Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download
