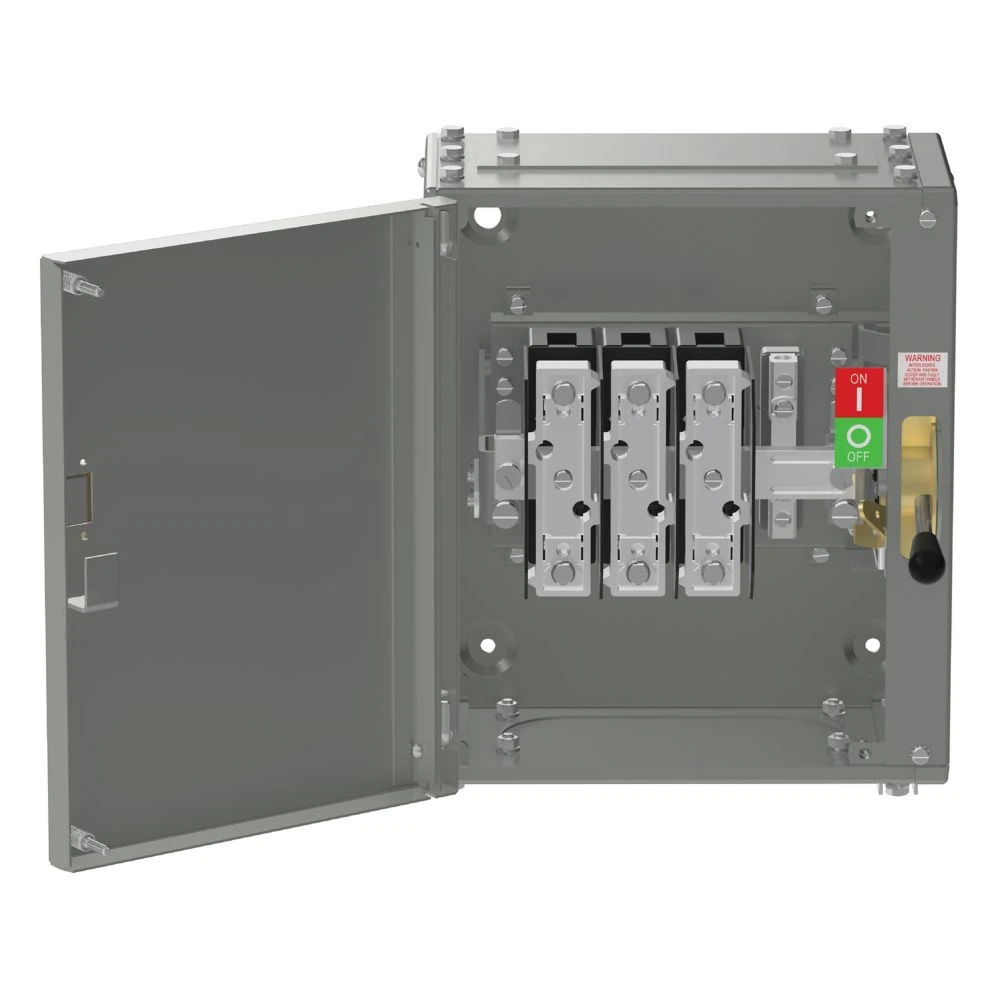

100A Triple Pole And Neutral Glasgow Switch-Disconnector Surface-Mounted Ral 7004

The Eaton 103GN is a 100A, 415V, TPN fuse switch disconnector. It is part of the Eaton Glasgow range of fuse switch disconnectors, which are known for their quality, trust and reliability. The 103GN is a modular solution, whereby the enclosure and fuselink or switchlink are ordered separately. This allows for installation flexibility by pairing the required fuselink or switchlink with the necessary enclosure.The 103GN meets the constructional requirements for isolation of and are type tested to BS EN 60947-3. Conditional short circuit current rating tests at a value of 80kA rms Ue 415V have been carried out with Eaton HRC fuses fitted.The 103GN is a versatile and reliable fuse switch disconnector that is ideal for a wide range of applications. It is easy to install and maintain, and it is backed by Eaton’s comprehensive warranty. · · · 100A rating · · 415V voltage · · TPN fuse type · · Modular design · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Mechanical durability: 15 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.7Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)
