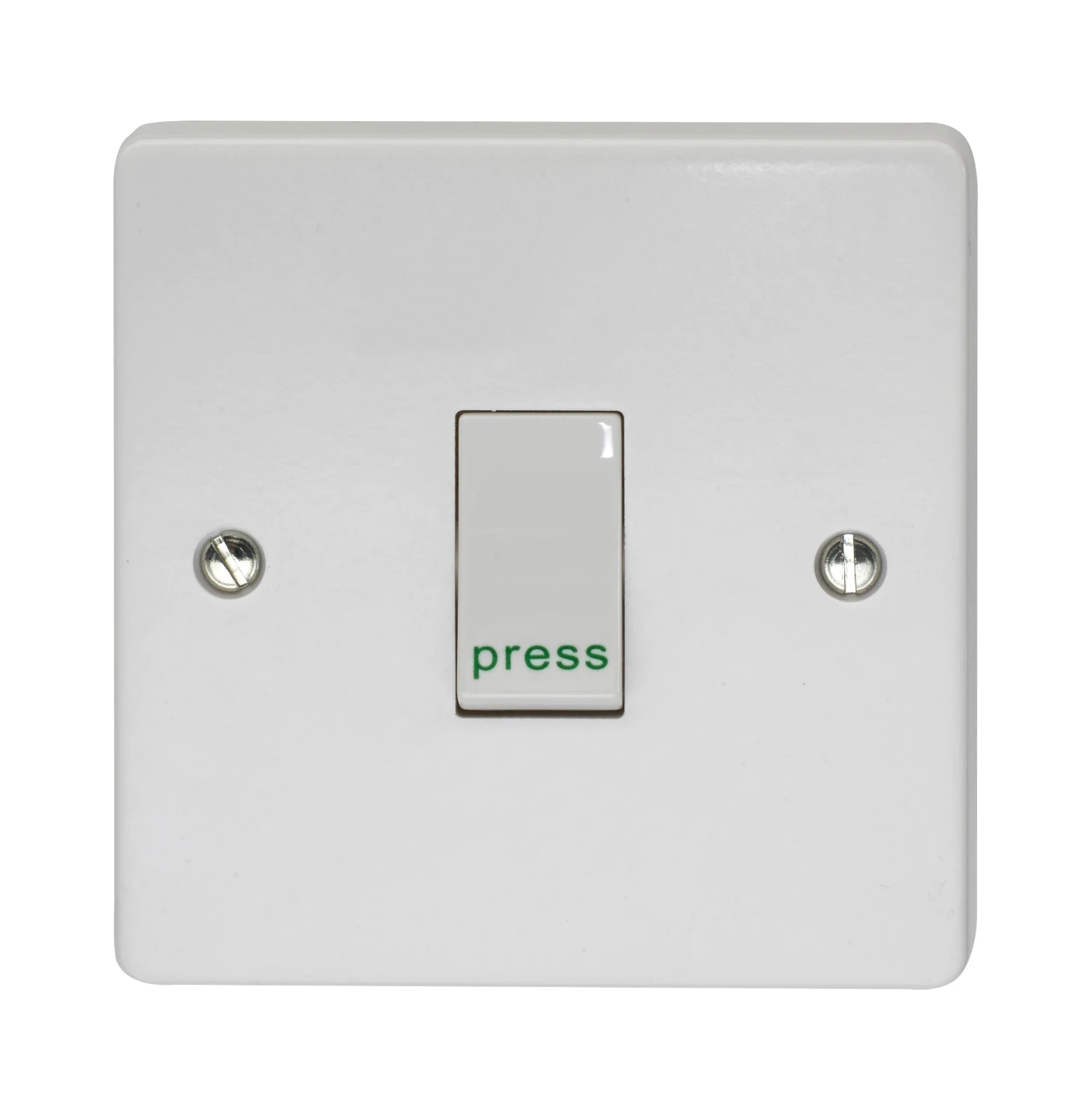

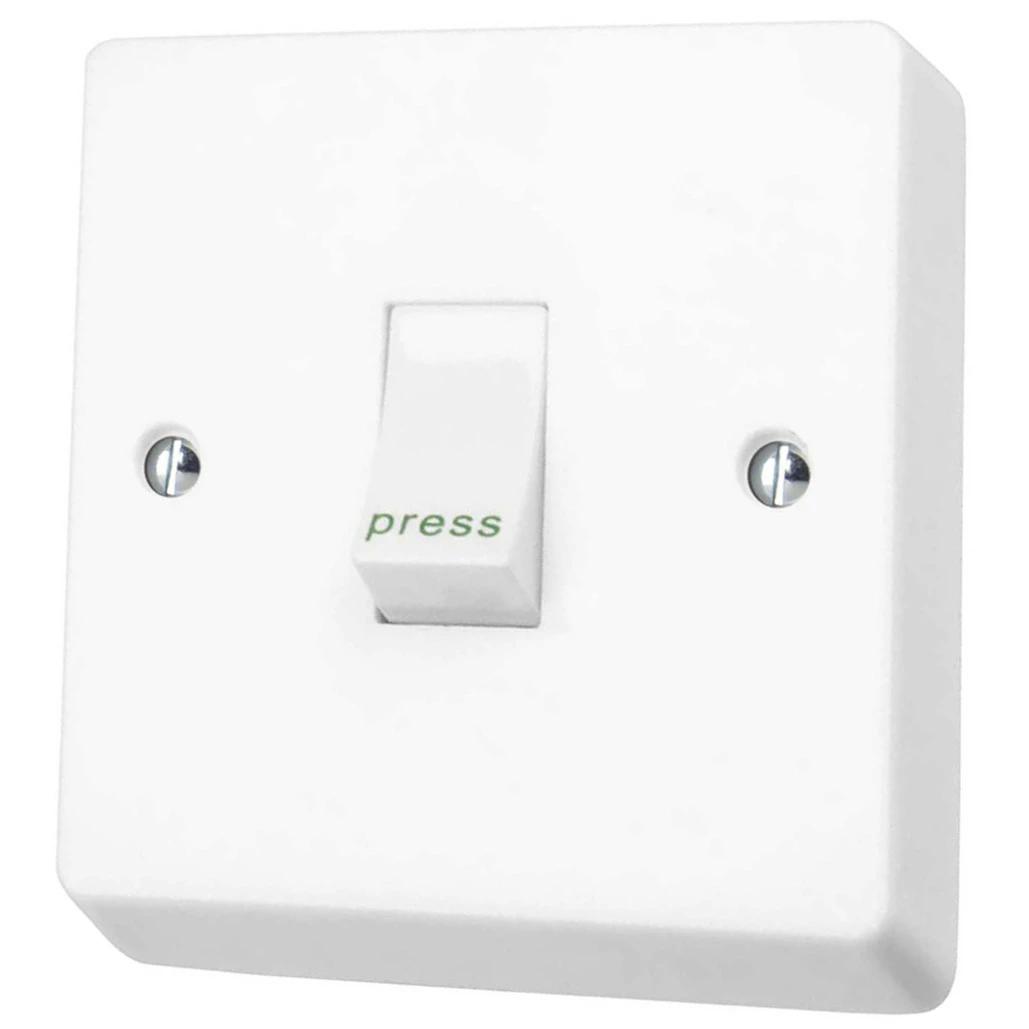

10A 1 Gang 2 Way Retractive Switch Printed ‘Press’
£6.88 Incl. VAT
Capital power and control accessories are fully design co-ordinated to offer consistent styling and inherent safety features across a broad range of applications. The range of socket outlets, fused connection units and switches is complemented by products which cater for specific applications such as cooker control units, shaver units, fan control switches and shower control switches. · · · Retractive Switch Action · · 2 Way · · Number of Gangs: Single Gang · · Marked press · · Manufactured according to BS EN 60669-1 · · Unique labyrinth switch design minimises visible arc flash and prevents front access to live parts · · Positive drive switch action prevents balancing between the ON and OFF position · · Minimum installation depth of 35mm is required · · Retractive switches can be wired either normally open (N/O) or normally closed (N/C) circuits
Out of stock
Description
Technical Specifications Technical Specifications Switch Material Plastic Colour White Surface finish Glossy Minimum depth of back box 16 mm Number of module spaces (modular system) 0 Number of rockers/gangs 1 Width of device 86 mm Height of device 86 mm Rated current 10 A Nominal voltage 250 V Feedback-signal contact No Push button switch Yes Washing machine switch No With mounting plate Yes Halogen free Yes · Technical Data Sheet – Click to Download
