Description

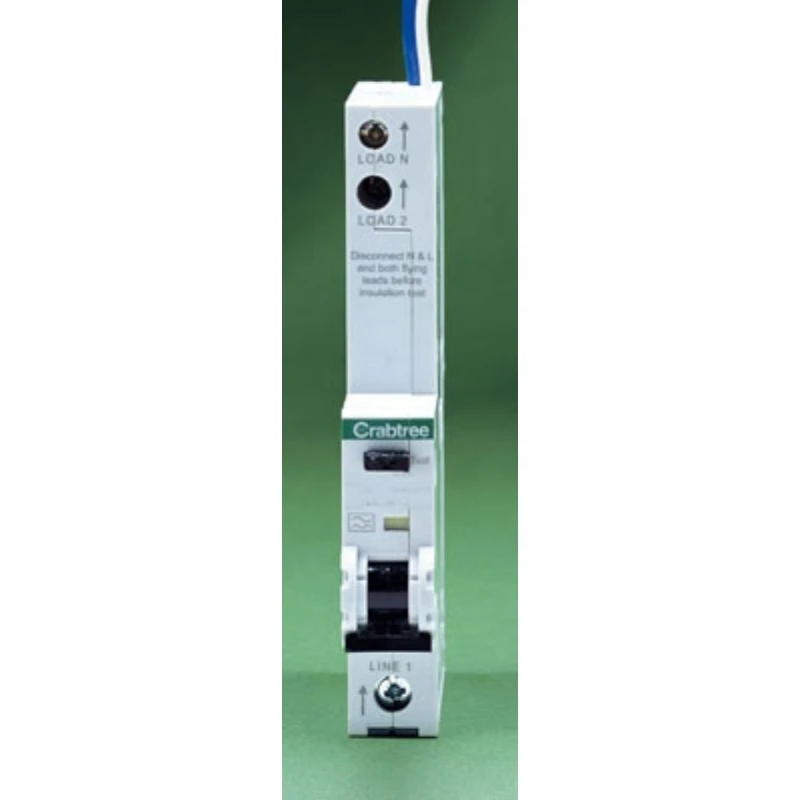

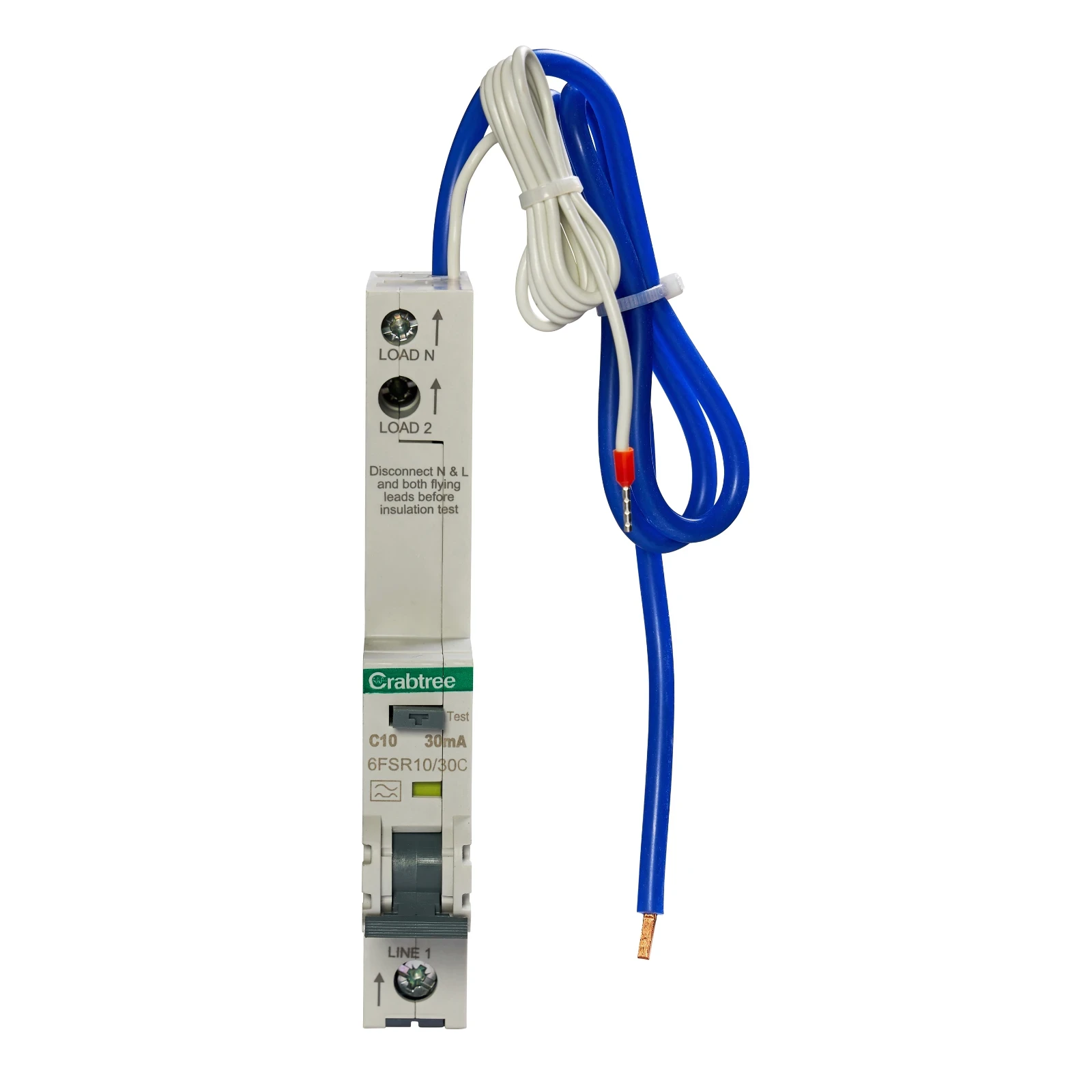

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) C Recess depth 74 mm Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Over voltage category 3 Number of poles (total) 2 Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Width in number of modular spacings 1 Rated voltage 230 V Rated current 10 A Number of protected poles 1 Current limiting class 3 Rated insulation voltage Ui 400 V Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No With interlocking device No Flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
