11-16A Class10 Screw Terminal
£73.18 Incl. VAT

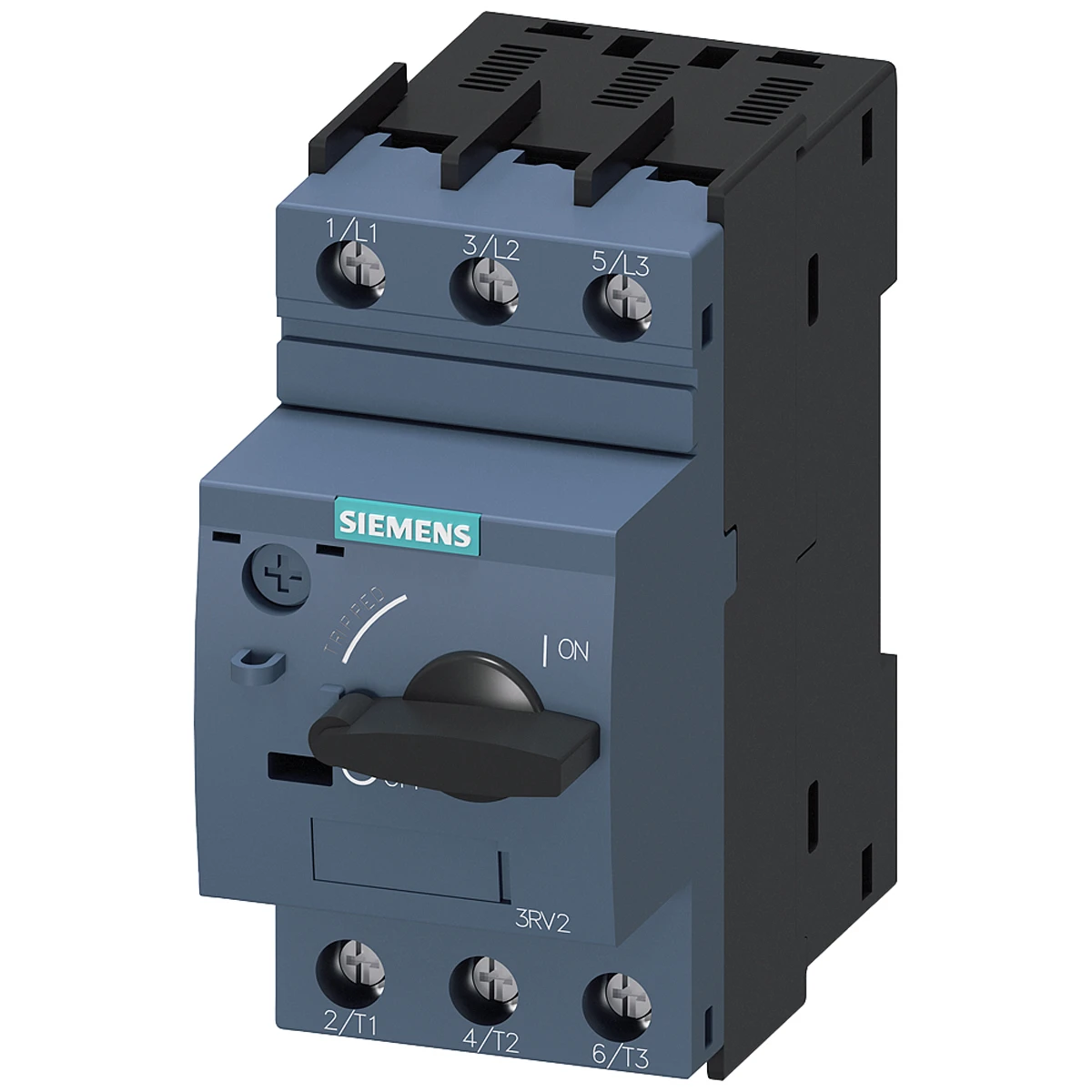

Siemens size S00 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Adjustable pick-up value current of overload release: 1.1 – 1.6A · · Response value current: 21A · · Screw clamp terminals: 2x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Tightening torque: 0.8 – 1.2Nm · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Degree of protection (IP rating) IP20 Type of control element Rotating button Switch off technique Magnetic Type of electrical connection of main circuit Screw connection Device construction Built-in device fixed built-in technique Width 45 mm Depth 97 mm Number of poles 3 Rated operation power at AC-3, 230 V 0.25 kW Rated operating voltage 690 – 690 V Adjustment range undelayed short-circuit release 21 – 21 A Overload release current setting 1.1 – 1.6 A Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Rated permanent current Iu 1.6 A Rated operation power at AC-3, 400 V 0.55 kW Height 97 mm With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download
