11 Motherboard Mini Itx Iphoner 16 Am4 Combo Gaming X99 Motherboard Mobile Phone Motherboard Laptop Motherboard With Cpu and Ram

Description

Product description

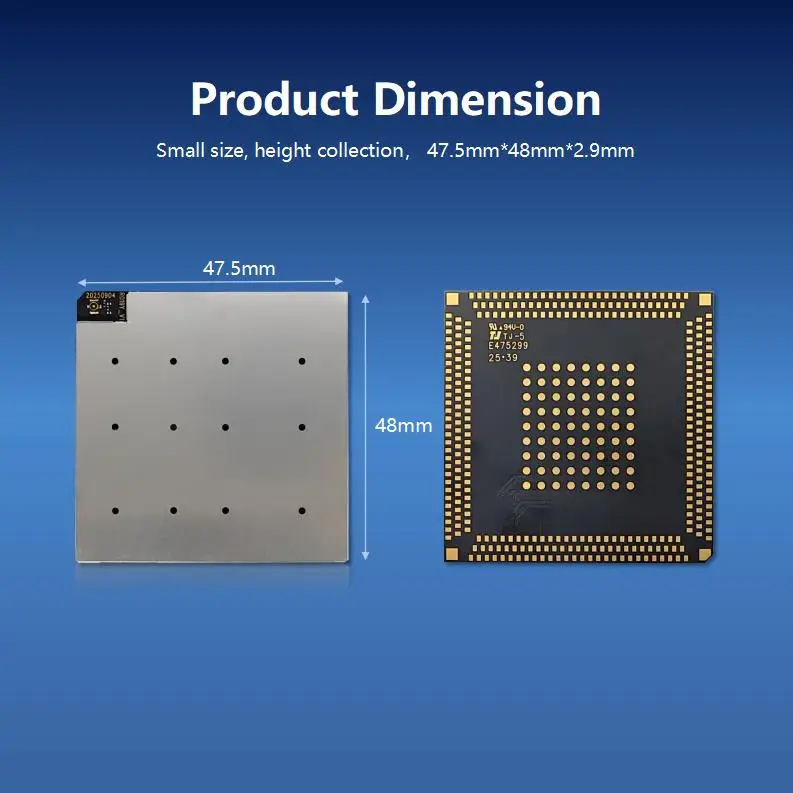

Specification Model 11 Motherboard Mini Itx Iphoner 16 Am4 Combo Gaming X99 Motherboard Mobile Phone Motherboard Laptop Motherboard With Cpu and Ram R019P Specification Basic Functions Encapsulation 8.6+0.1g CPU MT8371 ARM Cortex-A78*2+Cortex-A55*6 8core @2.2GHz(Max) GPU Mali-G57 MC2 Memory UFS3.1/eMMC5.1，LPDDR4X/LPDDR5. Demensions(mm) 47.5mm*48mm*2.9mm Wi-Fi 6 Support 802.11 a/b/g/n/ac/2.4G/5G/6, BT 5.0 BR/EDR/BLE OS Android 15 Working voltage 3.4~4.2V Operation temperature -25°C-+60°C Weight 8.6+0.1g Video Video coding 4K 30fps encoding /4K 60fps decoding, H.265/H.264 Interface LCD 1*4-Lane MIPl DSl port, max support 1920×1080@60fps 1*4-Lane EDP Camera 2 * 4-Lane MlPl CSl port, each Lane The maximum speed can reach 2.5Gbps 16MP + 16MP @ 30 FPS UART 4* UART Serial Ports, Max 4Mbps: 1 four-wire serial port supporting RTS/CTS hardware flow control; 1 two-wire serial port; 1 two-wire debug serial port I2C 9 sets of l2C interfaces, applicable to peripherals such as TP Camera and Sensor USB 2 sets of USB3.0 (HS) interfaces, max data transfer rate 480 Mbps,supporting USB OTG; 3 sets of USB2.0 SDIO 2x SD3.0, 4bit SDlO, SD card supports hot swapping GPIO 23 GPIO ISP MIPl CS1-2((supports face detection)) Speaker Support external power amplifier 1W on 80 load in Class-D mode Keys Power on/off /Reset Certification Certification ROHS*/CCC*/SRRC*/NAL*/CE*/FCC*/TSCA*/JATE*/TELEC* Product Description
