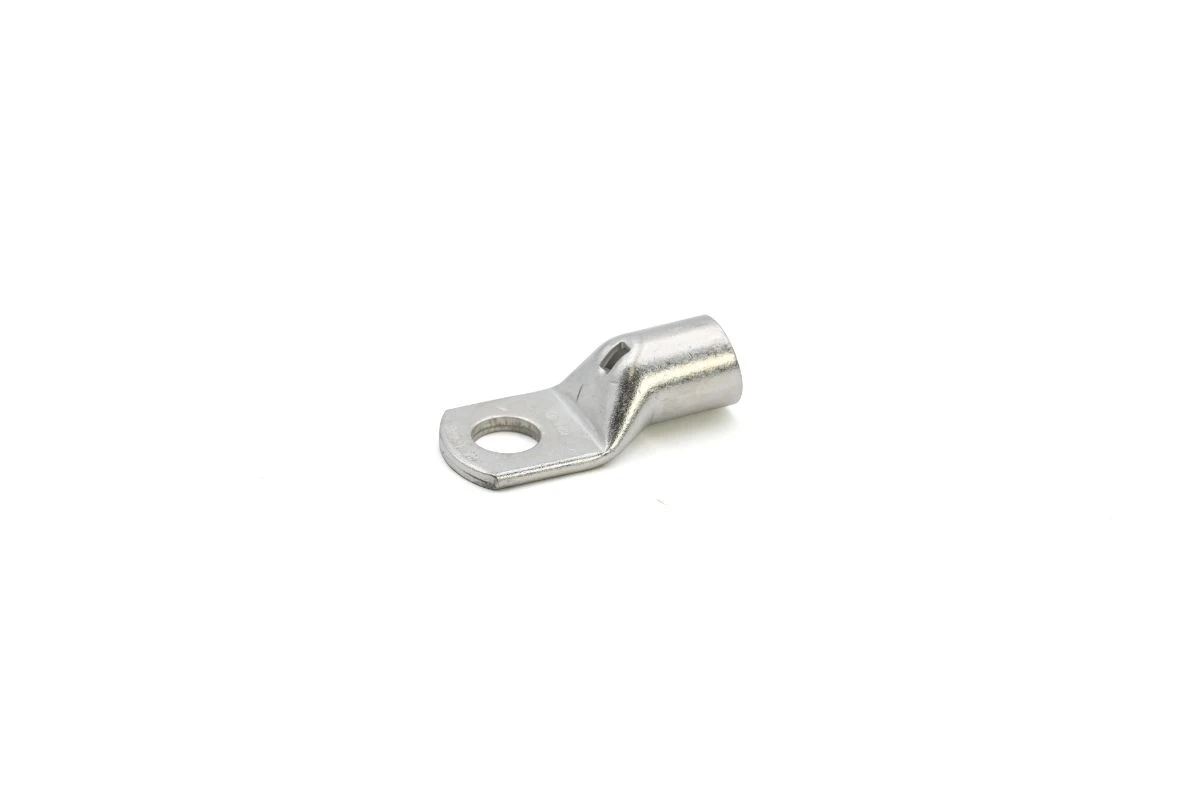

Cembre 120mm² Copper lug flexible M10 [Pack of 25]
£6.08 Incl. VAT
120mm² Copper tube crimping lug for extra flexible copper conductor M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 21 mm · · Diameter: 16.5 mm · · Length Min Max: 57.5 mm · · Width: 30 mm
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) AWG size 250 kcmil Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Bolt dimension (metric) 10 With sight-hole Yes Nominal cross section 120 mm² Insulated No Slender flange model No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573513
