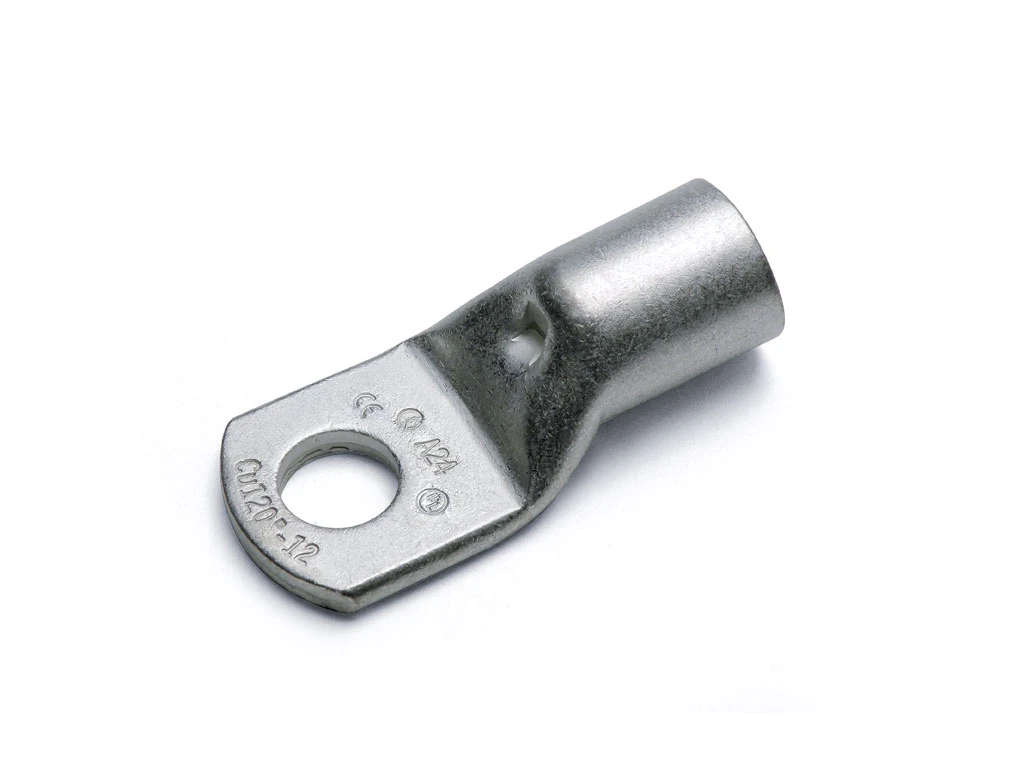

120mm² Copper Lug M16 stud [Pack of 25]
120mm² Copper Lug M16 stud [Pack of 25]
120mm² Copper Lug M16 stud [Pack of 25] - Image 2
120mm² Copper Lug M16 stud [Pack of 25] - Image 3
120mm² Copper Lug M16 stud [Pack of 25] - Image 4

120mm² Copper Lug M16 stud [Pack of 25]

£4.54 Incl. VAT

120mm² Copper tube crimping lug M16 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 34 mm · · Diameter: 15.2 mm · · Length Min Max: 71 mm · · Width: 28.5 mm

40 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A24-M16 Categories: , , Brand: Part Number: 2500006130

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Conductor category Class 5 = flexible Surface protection Tinned AWG size 000 Flange shape Ring shape Bolt dimension (metric) 16 Number of fixing holes 1 Nominal cross section 120 mm² Insulated No With sight-hole Yes Slender flange model No
