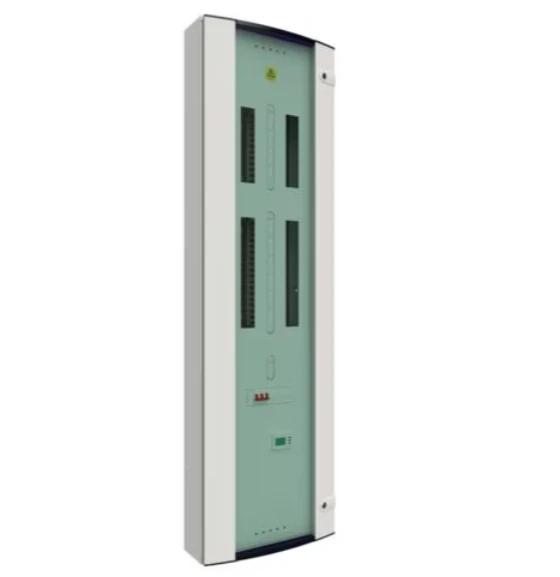

125A Power/Lighting Board 12/8 Way Pan Assemblies Modbus Comms

Distribution boards conforming to BS EN 61439-3 , with split metered sections to separately monitor small power and lighting circuits. Complete with a factory fitted 125A TP switch disconnector, MID approved energy meter and CT’s. Suitable for tenant billing if required. Meter communication is via Modbus RS 485. Power & lighting distribution boards are specifically aimed at commercial building applications to aid compliance with current building regulation – Part L2. P&L boards provide two separate monitored groups of protection devices within a single distribution board and from a single main supply. Advanced features provide a choice of two modes of operation in this board. The orientation of load type labelling can be reversed if requires e.g Lighting circuits at the bottom of the board. This feature retains the correct load labelling when viewed directly on the meter to ensure simple visualisation of energy data directly on the meter. Load data is labelled on the meter, SP (Small Power), LL (Lighting) and Sys (System power i.e total board load). · · · Frequency 50 Hz · · Colour light grey · · Material Steel · · Type of door closing Quarter turn lock
