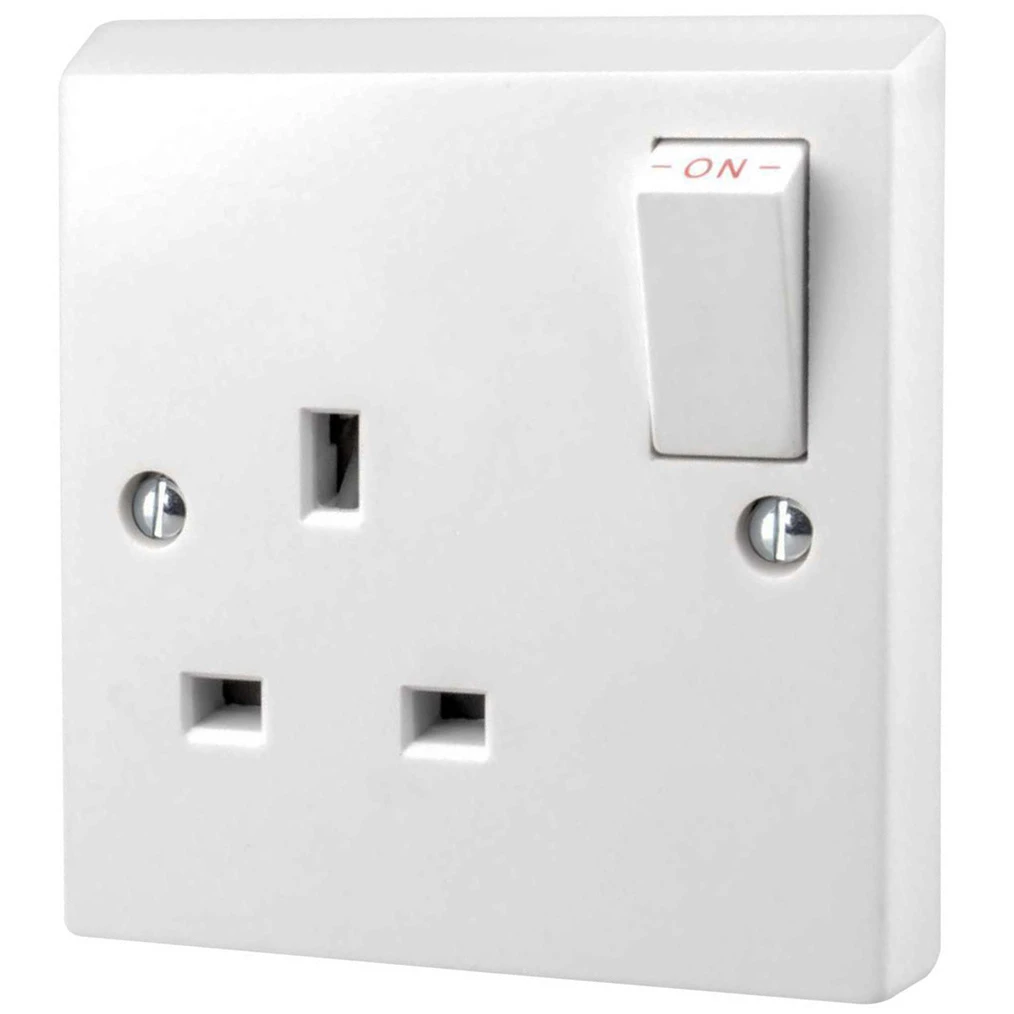

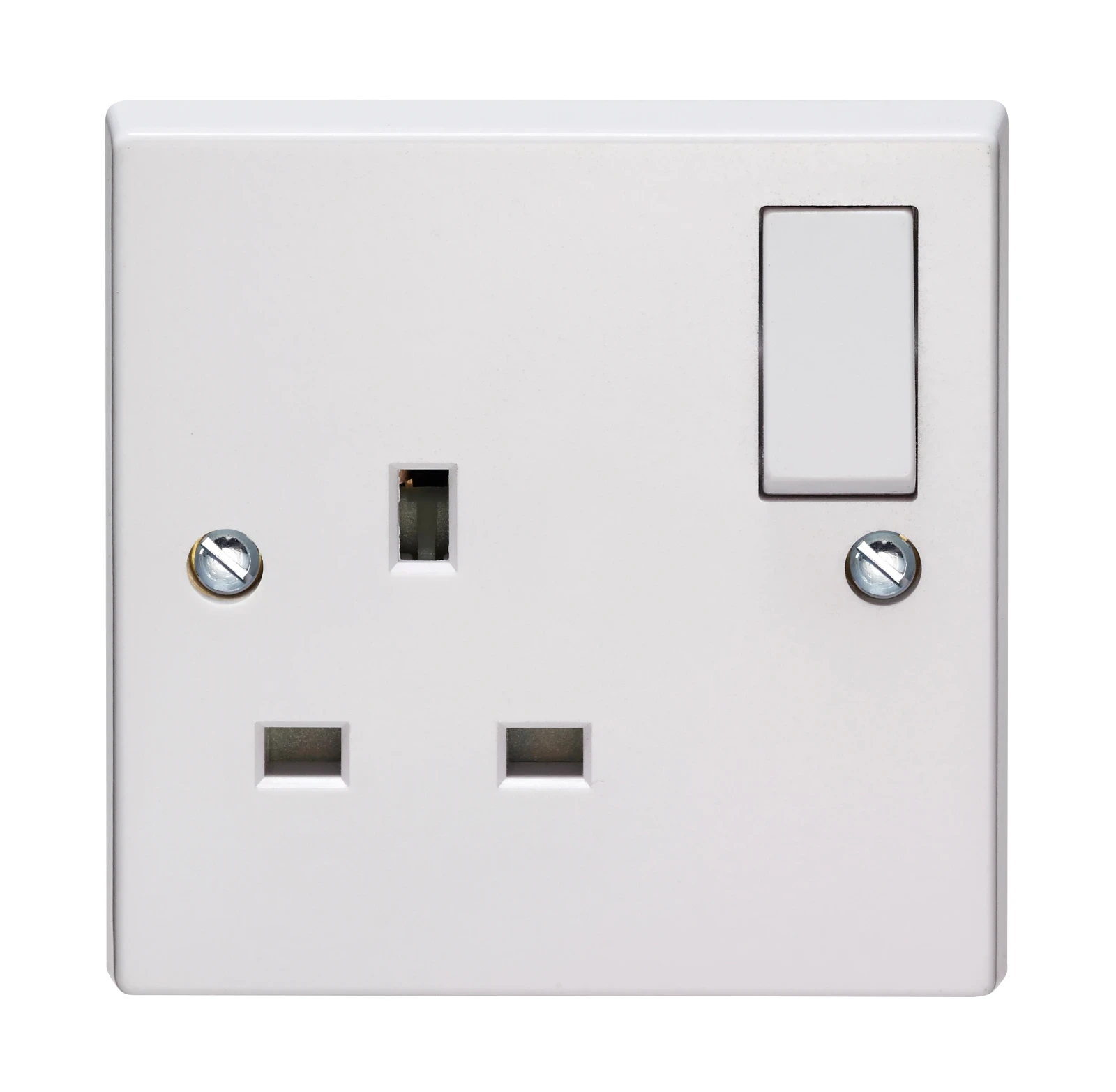

Volex 13A 1 Gang Double Pole Switched Socket
The Volex VX1300/D is a double pole, 1 gang, double pole switched socket. It has a white finish and square corners. · · · Fully Rated to 13A · · Double Pole Switching · · Safety Shutter System · · Switched/Unswitched Switched · · Single Earth · · Terminals suitable for up to 3 x 2.5mm2 or 2 x 4mm2 conductors · · Fixing centres 60.3mm
Description
Technical Specifications Technical Specifications Socket outlet Colour of rocker/switch operator White Colour White Minimum depth of back box 25 mm Number of active contacts (rectangular) 3 Number of active contacts (round) 0 Number of module spaces (modular system) 0 Number of switchable socket outlets 1 Depth of device 31 mm Nominal voltage 250 V Number of phases 2 Number of units/gangs 1 Height of device 85 mm Width of device 85 mm Nominal current 13 A Frequency 50 – 50 Hz Halogen free Yes Label space/information surface Yes With miniature fuse No For heavy conditions (in accordance with VDE) No Lockable No With hinged lid No With enhanced contact protection Yes Eject-mechanism No Transparent No With function lighting No With orientation lighting No With loop through function No With built-in USB power supply No Antibacterial treatment No With indicator lamp No With on/off switch Yes Rotated central insert No Fault current protection No Insulated mounting Yes Over voltage-/surge protection No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
