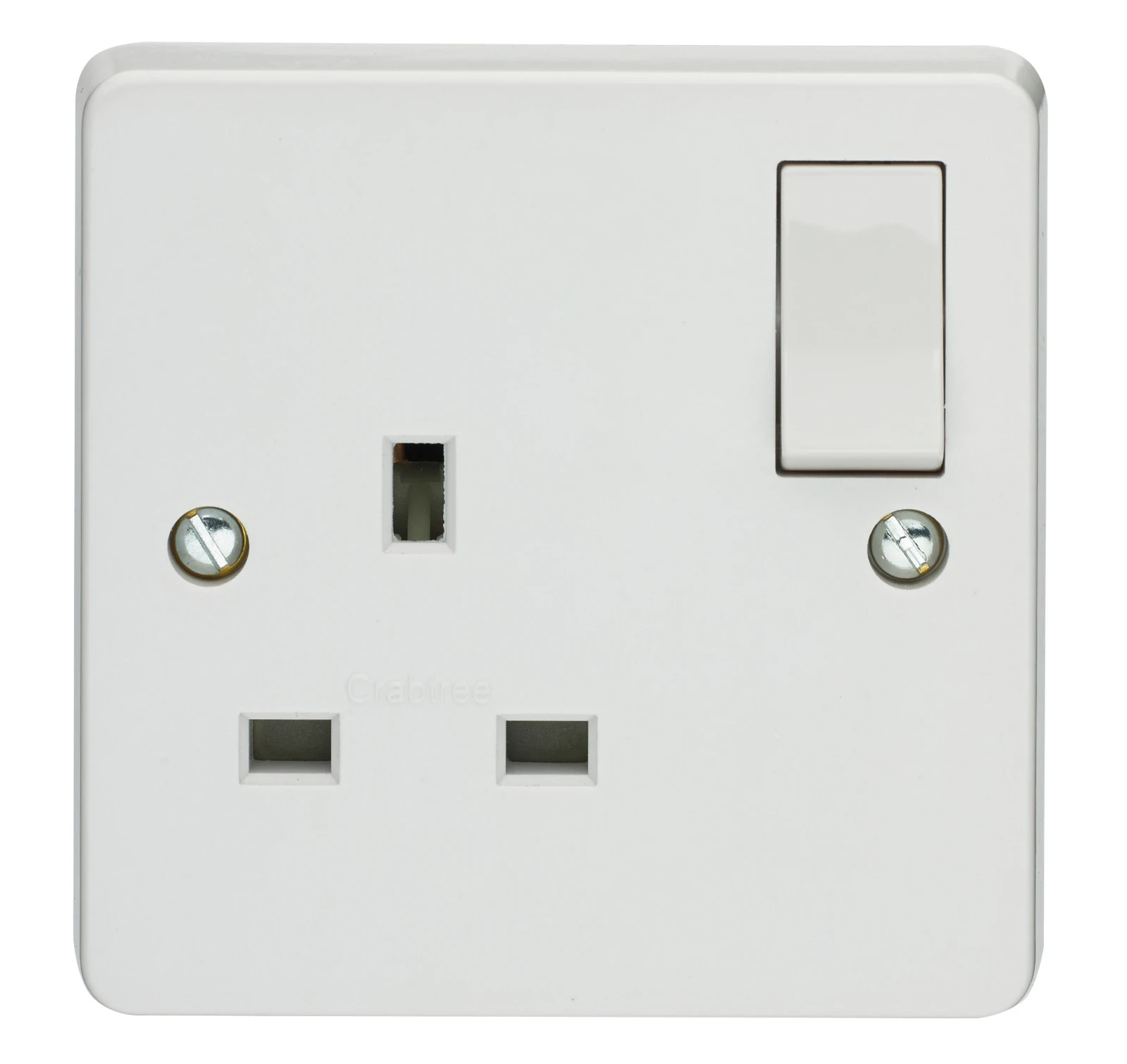

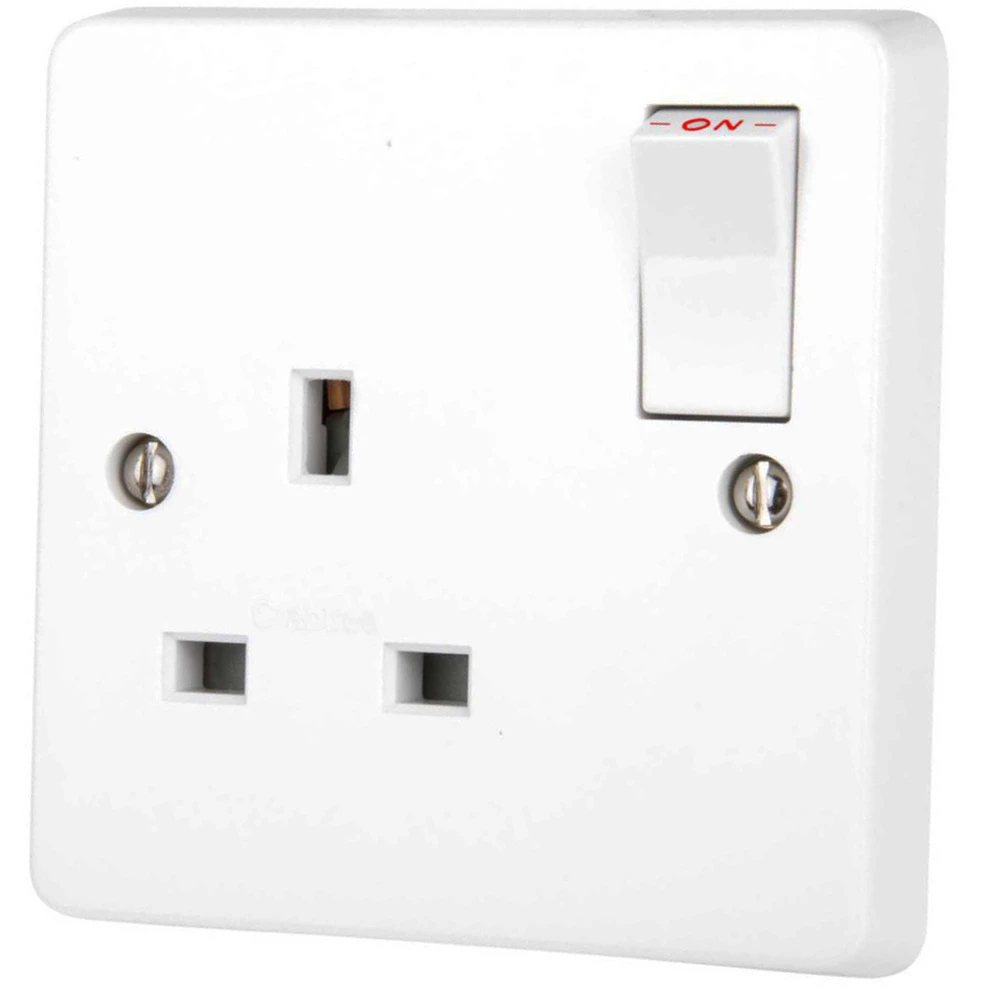

13A 1 Gang Double Pole Switched Socket
£2.80 Incl. VAT
The Crabtree 4304/D is a 1 gang, double pole, 13A switched socket outlet, fitted with dual earth terminals for use where compliance with section 607 (IEE wiring Regs.), high integrity earthing is necessary. Large capacity tunnel type terminals for easy wiring. Shallow back projection for ease of installation in a 25mm deep box. · · · Double Pole Switching · · Fully Rated to 13A · · Safety Shutter System · · With dual earth terminals. · · Terminals Suitable For 3 x 2.5mm and 2 x 4mm · · Switched/Unswitched Switched · · Fixing Centres 60.3mm
Out of stock
Description
Technical Specifications Technical Specifications Socket outlet Colour White Colour of rocker/switch operator White Nominal voltage 250 V Material Plastic Number of active contacts (round) 0 Nominal current 13 A Minimum depth of back box 25 mm Number of module spaces (modular system) 0 Number of active contacts (rectangular) 3 Number of switchable socket outlets 1 Width of device 86 mm Height of device 86 mm Label space/information surface Yes With enhanced contact protection Yes With hinged lid No Lockable No Number of phases 2 Number of units/gangs 1 Depth of device 32 mm Frequency 50 – 50 Hz Transparent No Halogen free Yes With on/off switch Yes Rotated central insert No Over voltage-/surge protection No Eject-mechanism No With indicator lamp No With miniature fuse No Fault current protection No Insulated mounting Yes Antibacterial treatment No With function lighting No With orientation lighting No With loop through function No With built-in USB power supply No For heavy conditions (in accordance with VDE) No · Technical Data Sheet – Click to Download
