150mm² Copper lug contained M8 [Pack of 25]
150mm² Copper lug contained M8 [Pack of 25]
150mm² Copper lug contained M8 [Pack of 25] - Image 2
150mm² Copper lug contained M8 [Pack of 25] - Image 3
150mm² Copper lug contained M8 [Pack of 25] - Image 4

150mm² Copper lug contained M8 [Pack of 25]

£6.53 Incl. VAT

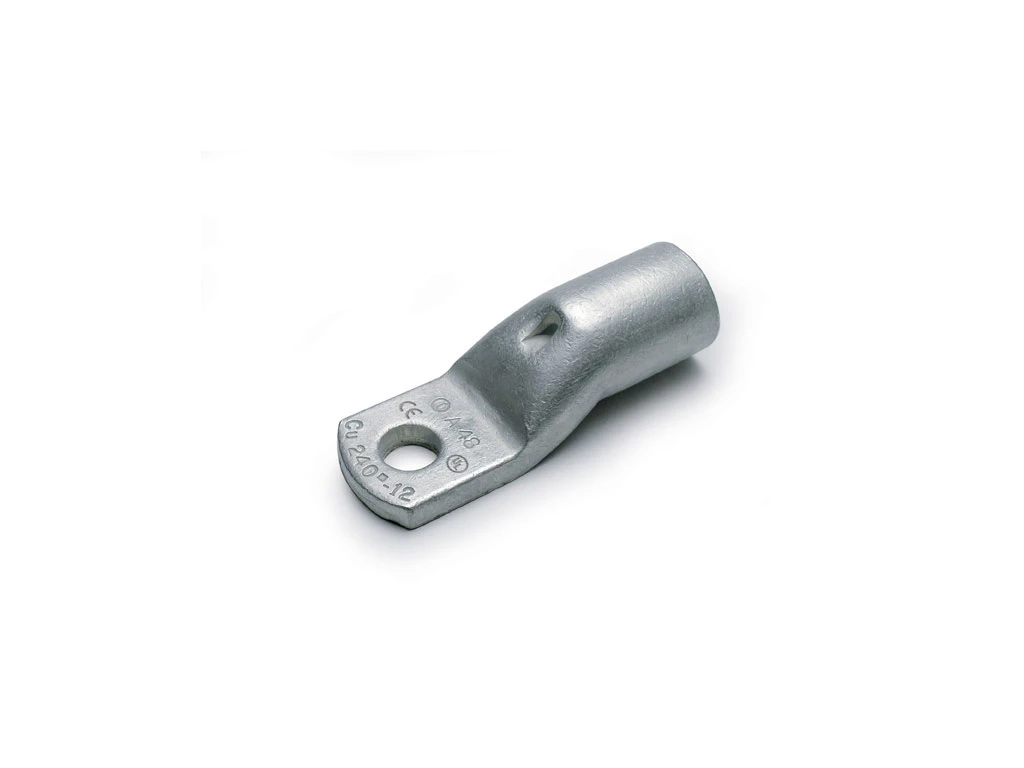

150mm² Copper tube crimping lug with contained palm M8 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Contained Palm

77 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A30B-M8/19 Categories: , , Brand: Part Number: 1062003843

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned Conductor category Class 5 = flexible AWG size 250 kcmil Bolt dimension (metric) 8 Number of fixing holes 1 Flange shape Ring shape Nominal cross section 150 mm² With sight-hole No Slender flange model Yes Insulated No · Technical Data Sheet – Click to Download
