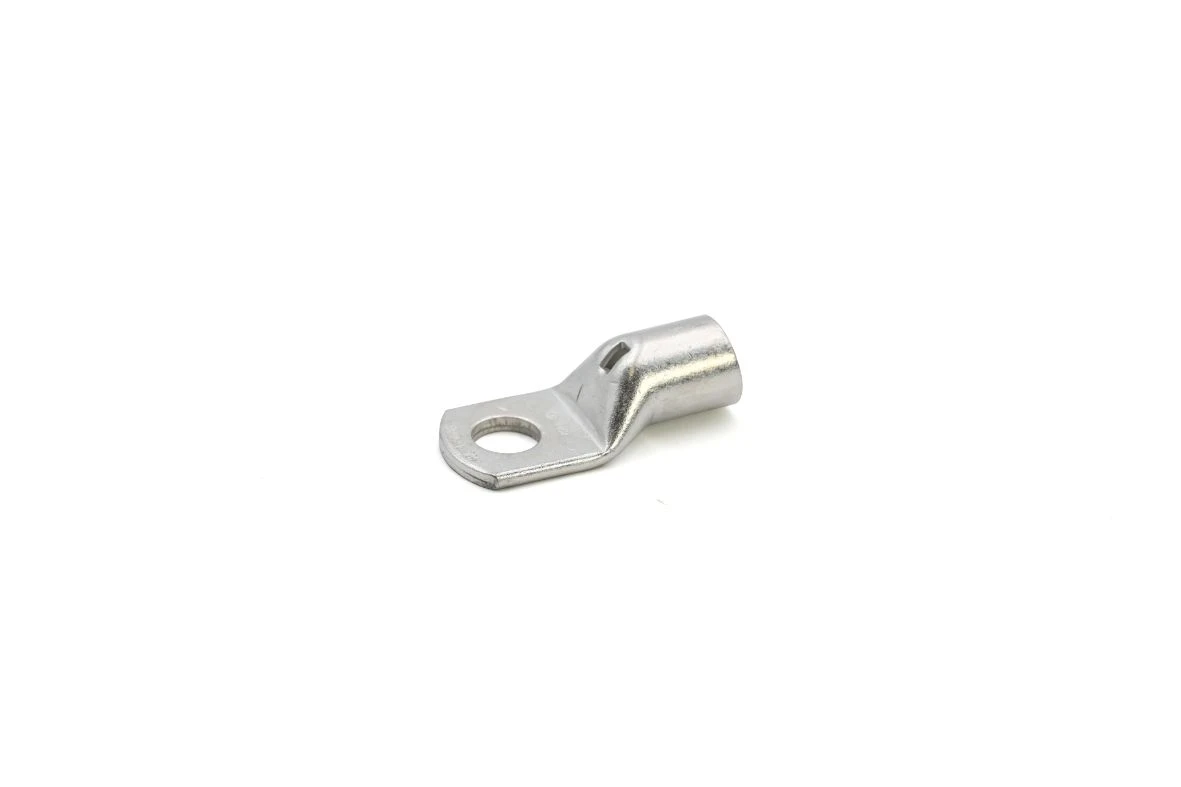

150mm² Copper Lug Flexible M12 [Pack of 25]
150mm² Copper Lug Flexible M12 [Pack of 25]
150mm² Copper Lug Flexible M12 [Pack of 25] - Image 2
150mm² Copper Lug Flexible M12 [Pack of 25] - Image 3
150mm² Copper Lug Flexible M12 [Pack of 25] - Image 4

150mm² Copper Lug Flexible M12 [Pack of 25]

£6.52 Incl. VAT

150mm² Copper tube crimping lug for extra flexible copper conductor M12 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 30 mm · · Diameter: 19.2 mm · · Length Min Max: 71.5 mm · · Width: 34.2 mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A35-M12 Categories: , , Brand: Part Number: 2500006308

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Conductor category Class 6 = very flexible Material Copper AWG size 300 kcmil Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 12 Nominal cross section 150 mm² Number of fixing holes 1 With sight-hole Yes Slender flange model No Insulated No
