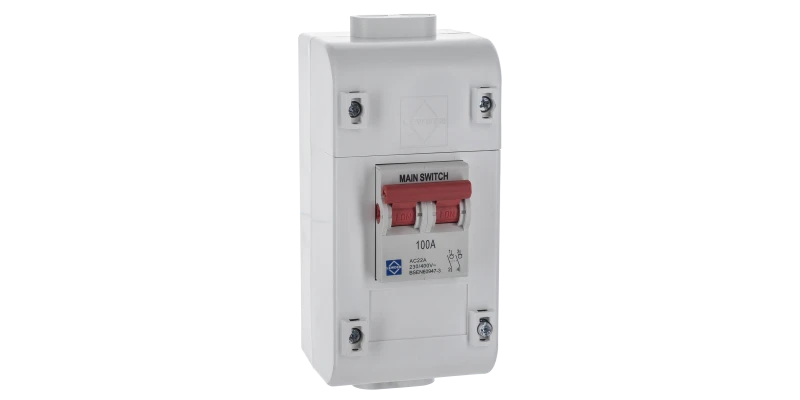

Lewden 156x70x71mm 100A IP20 Electricity Isolator Switch
Lewden 156x70x71mm 100A IP20 Electricity Isolator Switch
Lewden 156x70x71mm 100A IP20 Electricity Isolator Switch - Image 2
Lewden 156x70x71mm 100A IP20 Electricity Isolator Switch - Image 3
Lewden 156x70x71mm 100A IP20 Electricity Isolator Switch - Image 4

Lewden 156x70x71mm 100A IP20 Electricity Isolator Switch

£21.31 Incl. VAT

Provides for electrical isolation between the DNO kWh meter and consumer unit or distribution board. The isolation switch permits the supply to the installation to be interrupted without withdrawing the DNO cut out fuse. Available as either an empty enclosure or with integrated main switch. · · · Available in 2 module enclosure complete with 100A DP Main Switch, or in 4 module enclosure complete with 100A 4P Main Switch. · · Ingress rating IP20 IK07 · · Designed for use with 16mm2 & 25mm2 double insulated meter tails type 6181Y · · Rated current 100A

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SLM2-MS Categories: , , Brand: Product Code: 2501401234

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 100 A Number of poles 2 Conditioned rated short-circuit current Iq – kA Rated short-time withstand current lcw – kA Max. rated operation voltage Ue AC 230 V With error protection No Rated operation power at AC-23, 400 V – kW Motor drive optional No Suitable for busbar mounting No Equipped with connectors No Version as emergency stop installation No Motor drive integrated No Version as safety switch No Version as main switch Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
