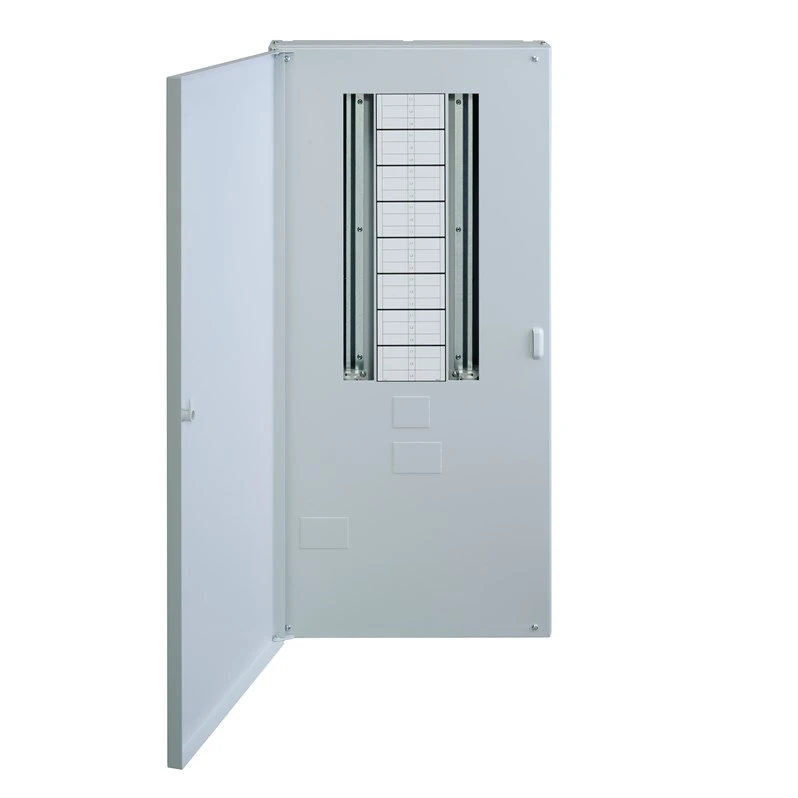

16-Way 125A Surface 3 Pole + Neutral Distribution Board
£340.27 Incl. VAT
The 16-Way 125A Surface 3 Pole + Neutral Distribution Board is a surface-mounted distribution board that is designed to be used with 3-phase and single-phase circuits. It has a 125A busbar rating and can accommodate up to 16 circuit breakers. The board is made from high-quality materials and is designed to be durable and reliable. It is also easy to install and use. · · · 16W 3P+N Type ‘B’ distribution board · · Switch disconnector,RCCB, or direct connection incomer options available · · Accepts Crabtree Loadstar 10kA final circuit protection devices; Single Pole and Triple Pole Type B, C, and D MCBs from 6A to 63A, and Single Pole Type B and C RCBOs from 6A to 50A · · Accepts the Crabtree LS125MPKIT (Pulsed Output/Modbus RTU), LS125MIDMPKIT (MID) integral incoming meter kits or LS125SPKITL integral Type 2 surge protection kit · · RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3
2 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board equipped Width 430 mm Height 895 mm Depth 155 mm Number of outgoing ways 16 Main switch rated current 125 A Number of phases 3 With transparent cover No Extension possible Yes Lockable Yes · Technical Data Sheet – Click to Download
