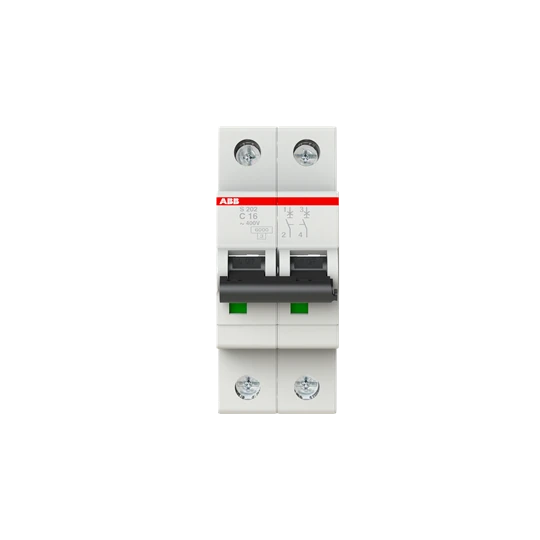

ABB S202-C16 Miniature Circuit Breaker - 2P - C - 16 A - Image 2
ABB S202-C16 Miniature Circuit Breaker - 2P - C - 16 A - Image 3

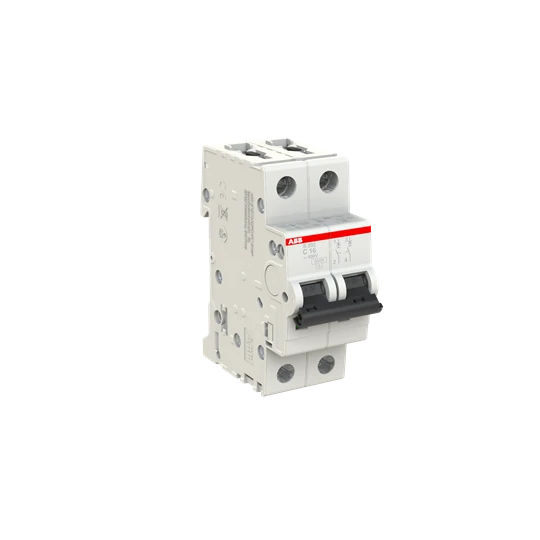

ABB S202-C16 Miniature Circuit Breaker - 2P - C - 16 A - Image 4

ABB S202-C16 Miniature Circuit Breaker – 2P – C – 16 A

£44.10 Incl. VAT

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 2 Pole · · Input Voltage Type: AC/DC · · Frequency (f): 50 Hz · · Contact Position Indication: Red ON / Green OFF · · Electrical Endurance: 20000 AC cycle · · Tightening Torque: 2.8 N·m · · Mounting Type: DIN-Rail · · Reference Ambient Air Temperature: 30 °C

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS252001R0164 Categories: , , Brand: Product Code: 2501531597

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Number of poles (total) 2 Rated insulation voltage Ui 440 V Pollution degree 3 Current limiting class 3 Width in number of modular spacings 2 Rated voltage 400 V Rated current 16 A Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Recess depth 69 mm Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Number of protected poles 2 Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -25 – 55 °C Connectable conductor cross section solid-core 0.75 – 35 mm² Flush-mounted installation No Additional equipment possible Yes Explosion-proof No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
