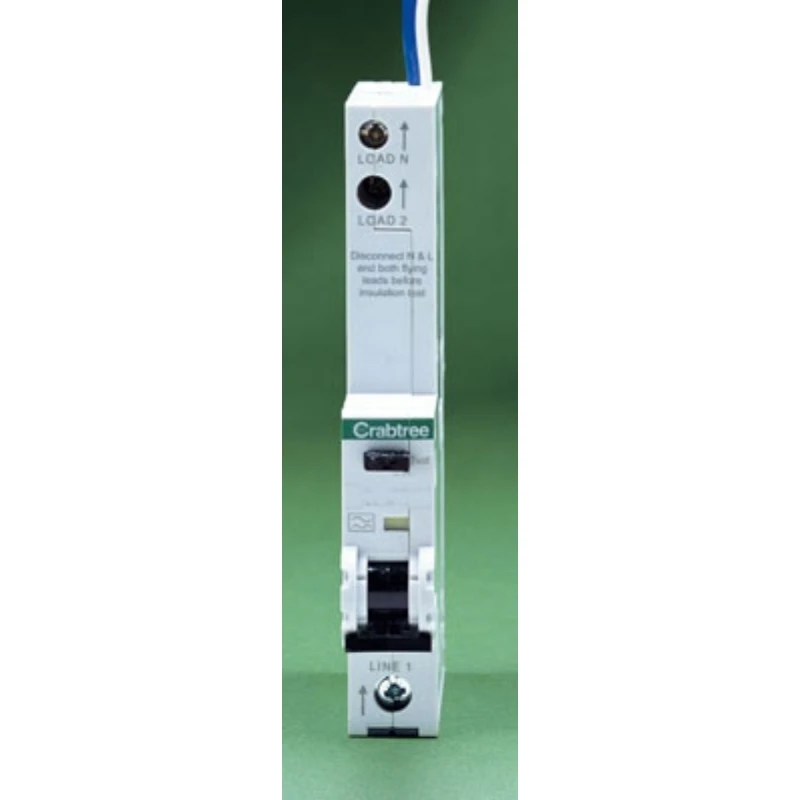

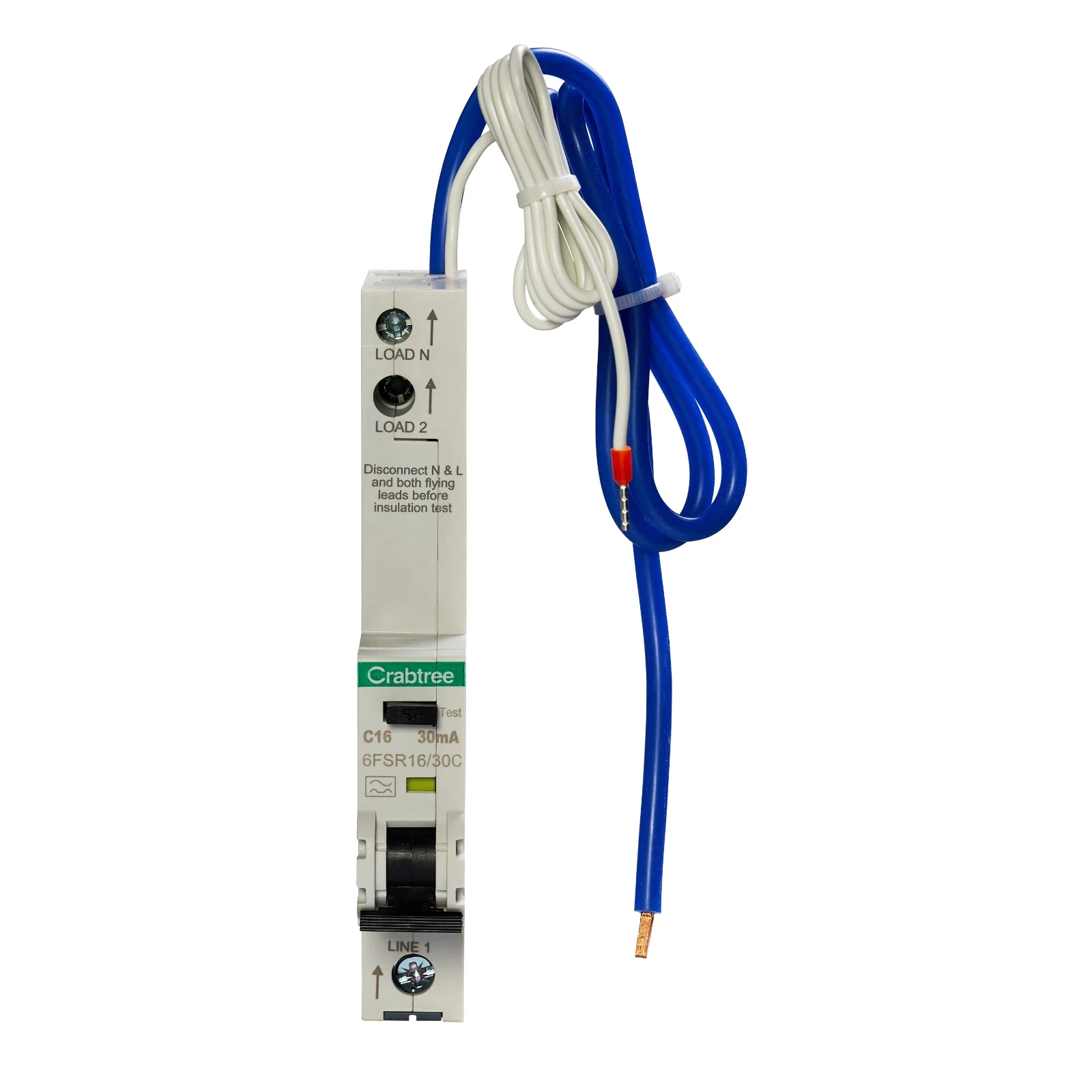

Crabtree 16A 30mA SPN C Curve 6kA Type A RCBO
£48.04 Incl. VAT
Crabtree Loadstar RCBO is a single pole, 30mA trip current and c-curve. It has 16mm terminal capacity (outgoing) for consumer unit. · · · Single module, RCBO · · 16A C curve (MCB), 30mA Type A (RCD) · · Single pole · · 16mm terminal capacity (outgoing) · · 6ka Breaking capacity · · type C curve · · 16A rated
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Over voltage category 3 Mounting method DIN rail Number of poles (total) 2 Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of protected poles 1 Rated insulation voltage Ui 400 V Rated fault current 0.03 A Rated current 16 A Recess depth 74 mm Rated voltage 230 V Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C With interlocking device No Anti-nuisance tripping version No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
