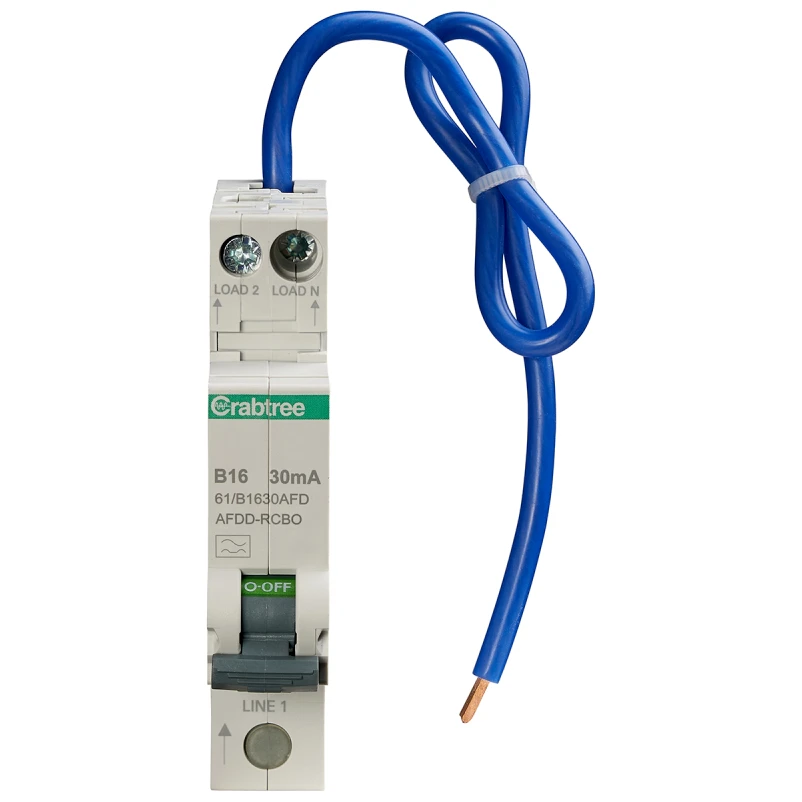

16A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 16 A Rated voltage 230 V Tripping characteristic (type/curve) B Recess depth 73 mm Number of poles (total) 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Width in number of modular spacings 1 Current limiting class 3 Over voltage category 3 Number of protected poles 1 Anti-nuisance tripping version No Flush-mounted installation No Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated fault current 0.03 A Rated insulation voltage Ui 400 V Concurrently switching N-neutral Yes With interlocking device No · Technical Data Sheet – Click to Download
