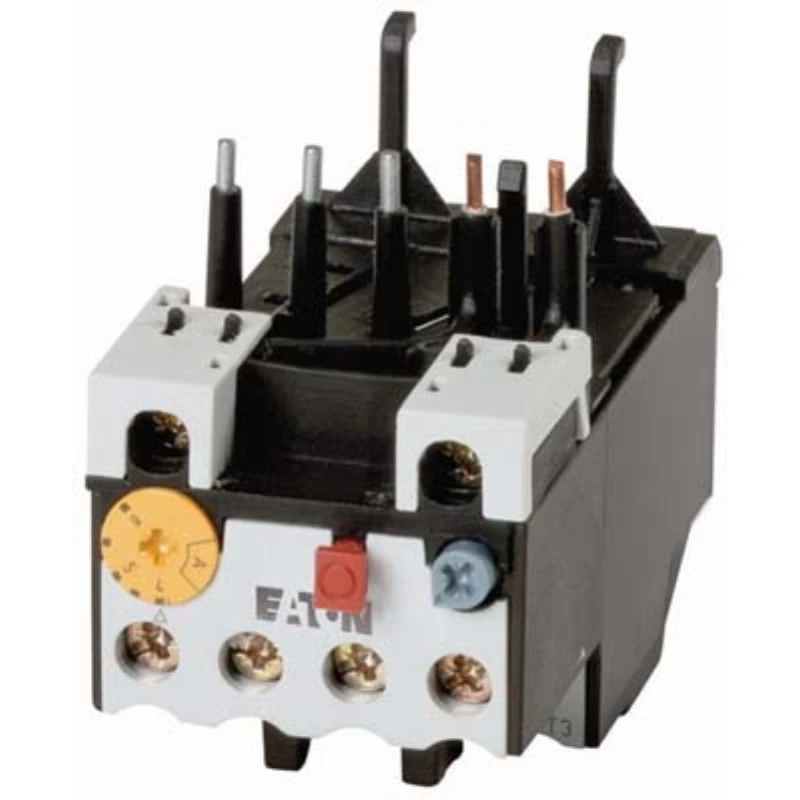

1A Moeller Series ZB Thermal Overload Relay
1A Moeller Series ZB Thermal Overload Relay

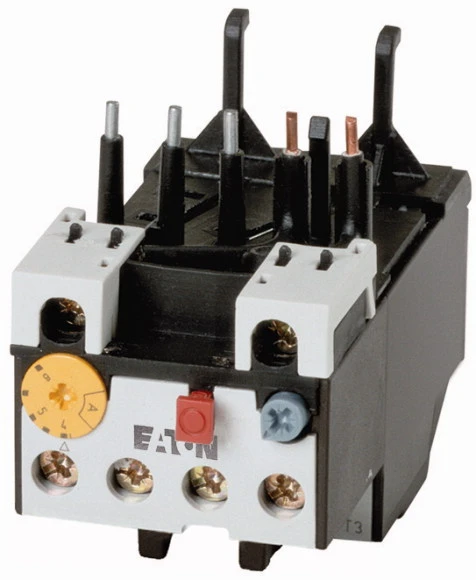

1A Moeller Series ZB Thermal Overload Relay - Image 2
1A Moeller Series ZB Thermal Overload Relay - Image 3
1A Moeller Series ZB Thermal Overload Relay - Image 4

1A Moeller Series ZB Thermal Overload Relay

£49.39 Incl. VAT

The ZB-series motor-protection relays offer reliable protection in the event of phase failures and overloads. They are suitable for the protection of EEx electronic motors and can be directly mounted on DILM contactors with up to 250 A. · · · Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102) · · Trip-free release · · Test/off button · · Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102) · · Width: 108mm · · Depth: 283mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZB12-1 Categories: , , Brand: Part Number: 2500157152

Description

Technical Specifications  Technical Specifications Thermal overload relay Mounting method Direct attachment Release class CLASS 10 A Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as change-over contact 0 Max. rated operation voltage Ue 690 V Adjustable current range 0.6 – 1 A Reset function automatic Yes Reset function input No Reset function push-button Yes · Technical Data Sheet – Click to Download
