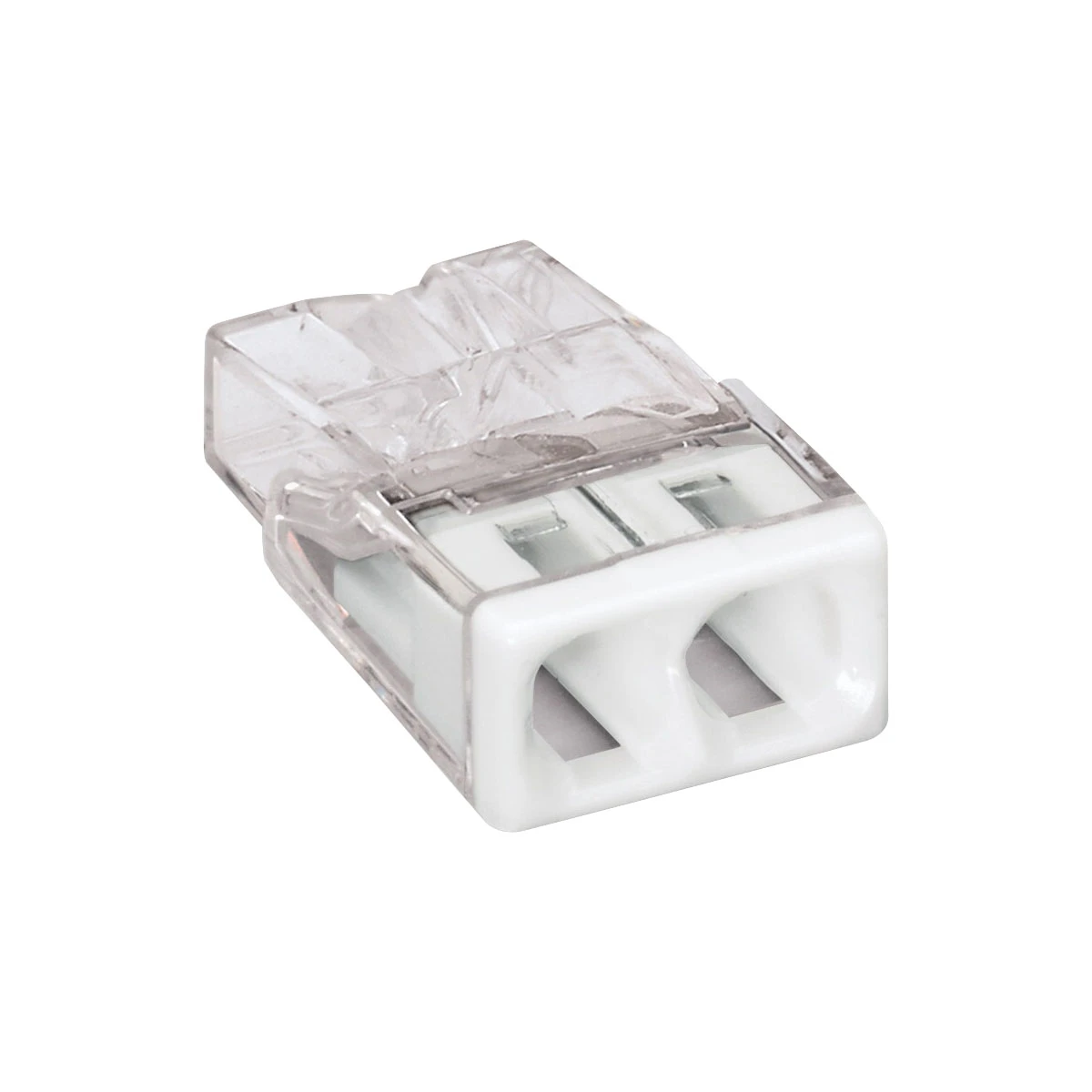

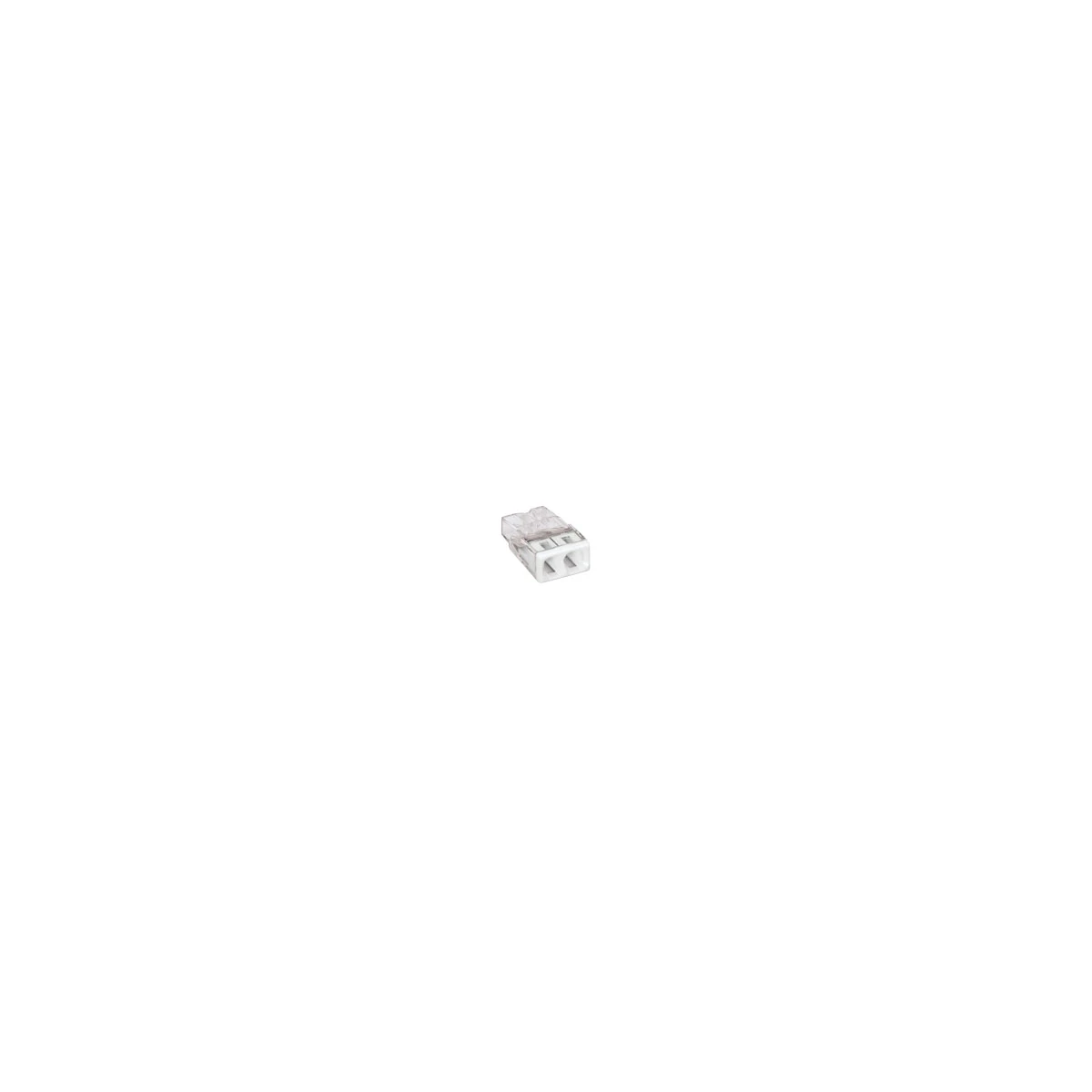

2-Way 0.5-2.5mm² Push-in Connector 10 x 5.8 x 16.7mm White
£0.20 Incl. VAT

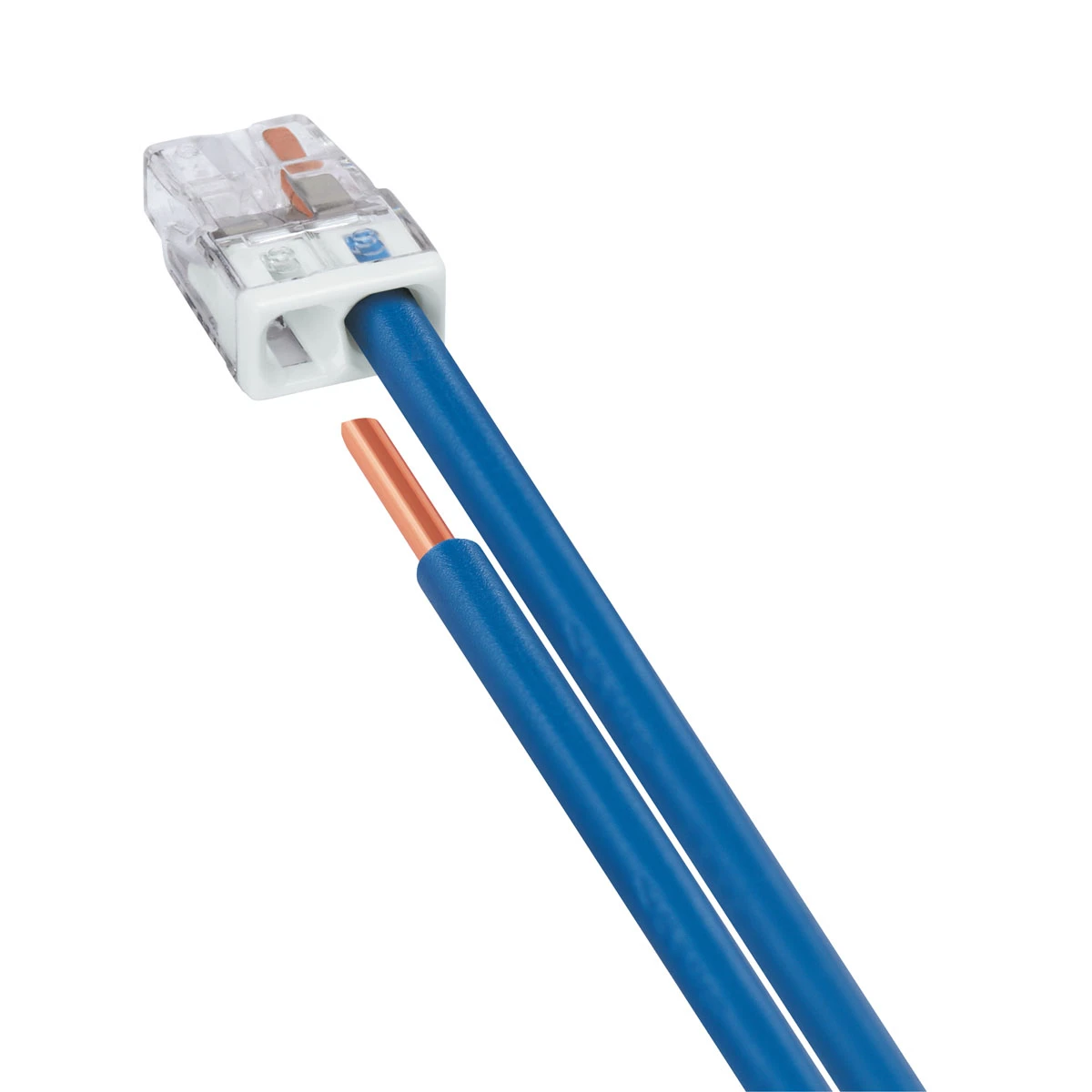

2 Way 0.5-2.5mm² Push-in Connector · · · 2-conductor terminal block · · Transparent housing and white cover · · Suitable for junction box · · With push-in cage clamp · · Any combination of conductor sizes is possible · · PUSH WIRE® connection terminates solid (“s”) copper conductors
Out of stock
Description
Technical Specifications Technical Specifications Push in terminal Nominal current 24 A Nominal voltage 450 V Number of clamp positions 2 Conductor cross section solid (solid, stranded) 0.5 – 2.5 mm² AWG-range 14 – 18 Nominal cross section 0.5 – 2.5 mm² With operation lever No Suitable for solid core Yes Suitable for multi-wire core No Suitable for flexible core No Transparent Yes
