Enclosed Fuse Switches

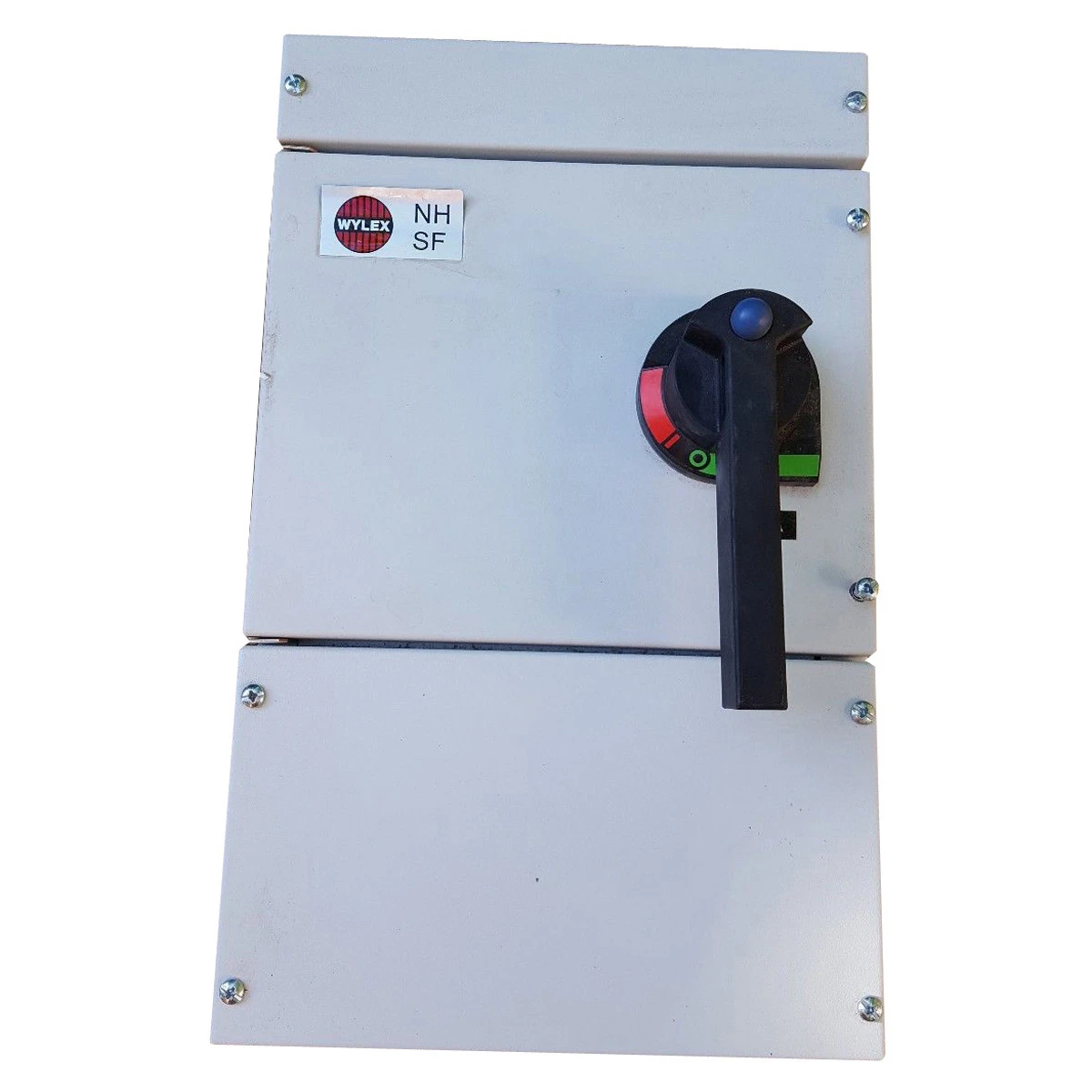

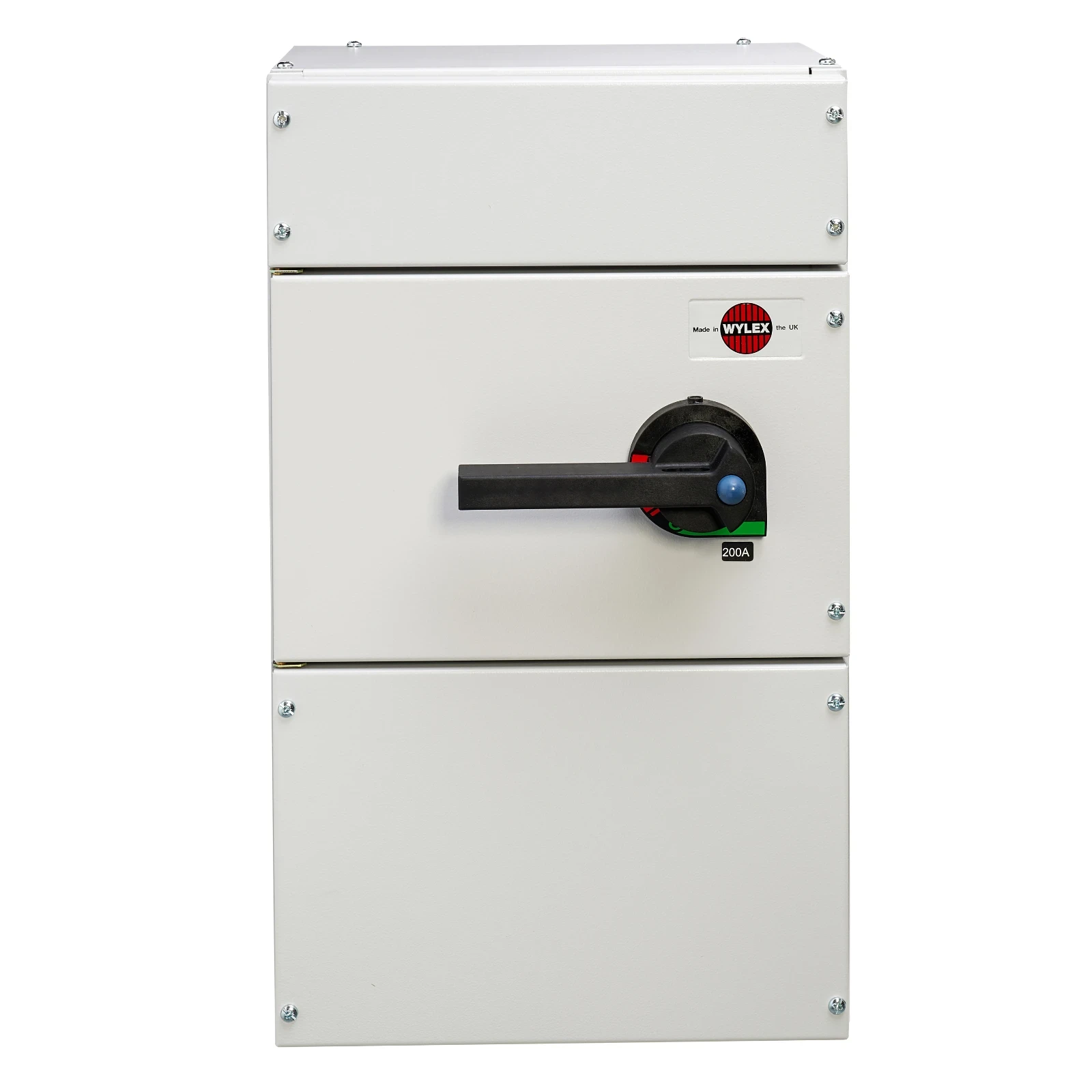

Wylex 200A 3P+N Fuse Combination Unit

SKU: NHTPSF200Go Magpie ID: 5060062343732

Robust steel enclosures with cable glanding plate supplied top and bottom removable door opens through 180 for ease of access. · · · Supplied without fuses. Switch only. · · Painted RAL 7035 steel enclosure 530mmH x 315mmW x 241mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 150mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB3) is required.

£838.49inc VAT£698.74 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 200 A Max. rated operation voltage Ue AC 415 V Number of poles 3 Motor drive integrated No Version as emergency stop installation No With error protection No Version as main switch Yes Version as safety switch No Equipped with connectors Yes Motor drive optional No Suitable for busbar mounting No · Technical Data Sheet – Click to Download
