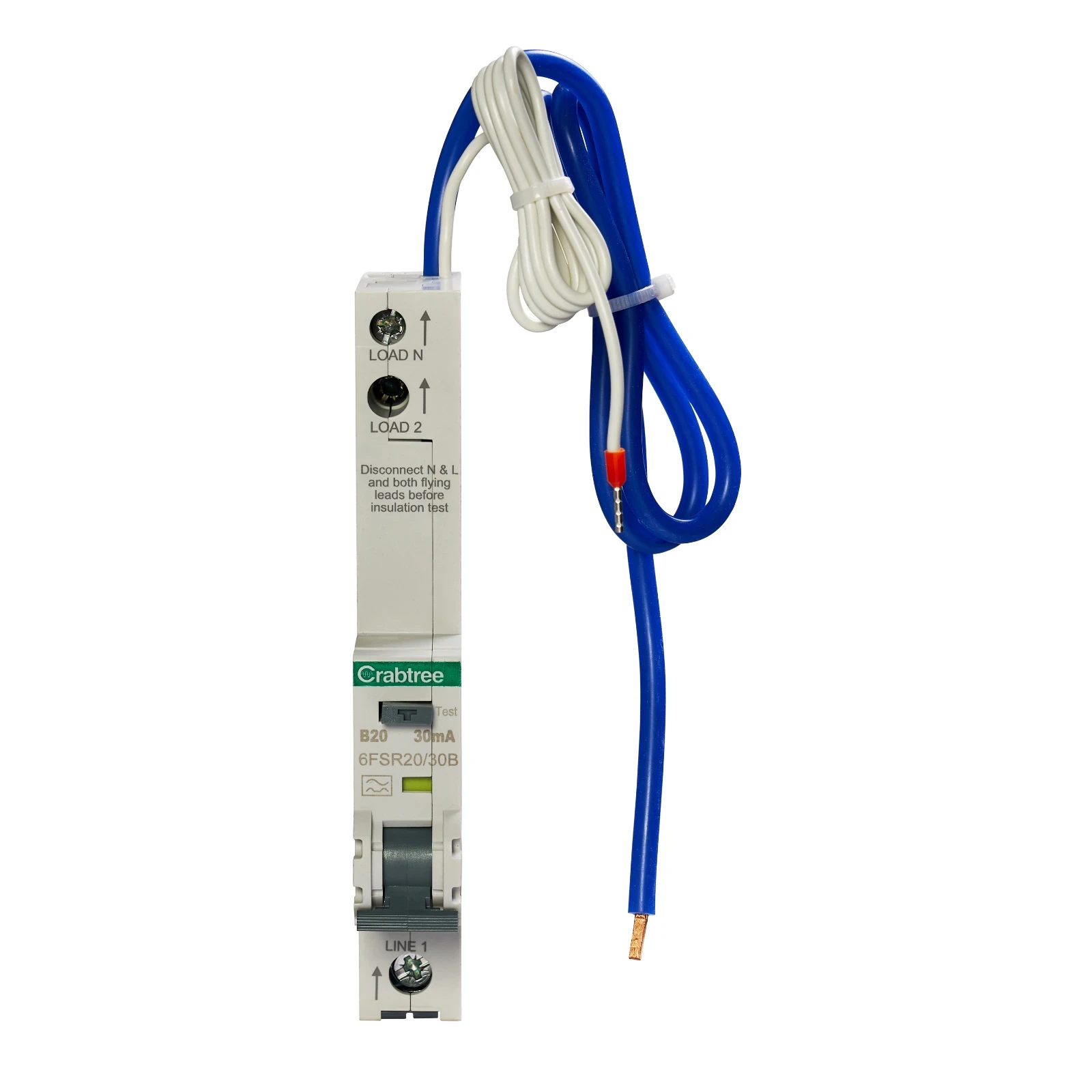

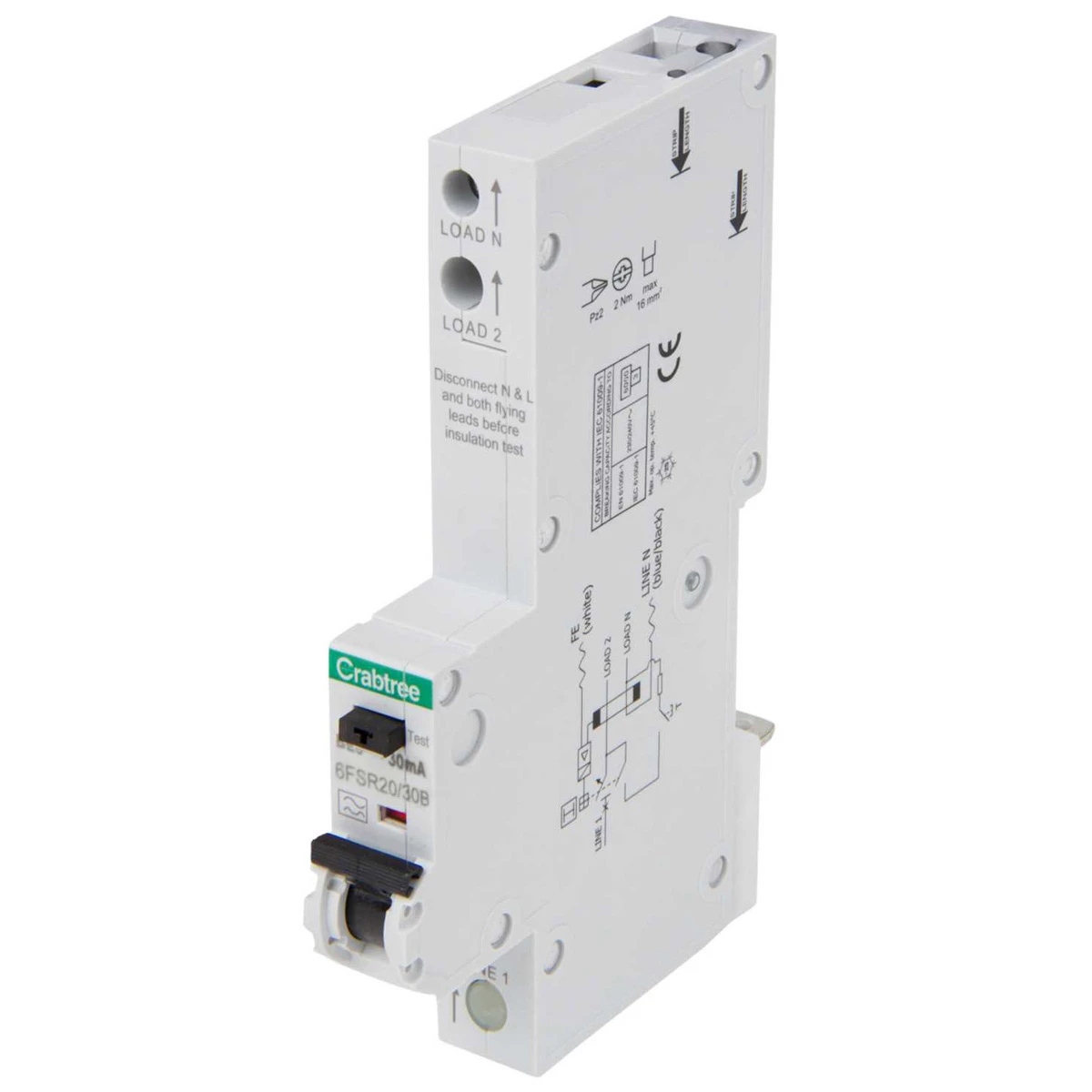

20A 30mA SPN B Curve 6kA Type A RCBO
20A 30mA SPN B Curve 6kA Type A RCBO
20A 30mA SPN B Curve 6kA Type A RCBO - Image 2
20A 30mA SPN B Curve 6kA Type A RCBO - Image 3

20A 30mA SPN B Curve 6kA Type A RCBO

£46.40 Incl. VAT

Crabtree Loadstar RCBO is a single pole, 30mA trip current and c-curve. It has 16mm terminal capacity (outgoing) for consumer unit. · · · Single module, RCBO · · 20A B curve (MCB), 30mA Type A (RCD) · · Single pole · · Tripping characteristics Type B · · Suitable for use within Loadstar Consumer Units · · Unswitched Neutral · · Tail length 600mm · · BS EN 61009

10 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6FSR20/30B Categories: , , Brand: Part Number: 2500329810

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated insulation voltage Ui 400 V Tripping characteristic (type/curve) B Current limiting class 3 Width in number of modular spacings 1 Rated fault current 0.03 A Rated current 20 A Rated voltage 230 V Recess depth 74 mm Number of poles (total) 2 Number of protected poles 1 Concurrently switching N-neutral No Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
