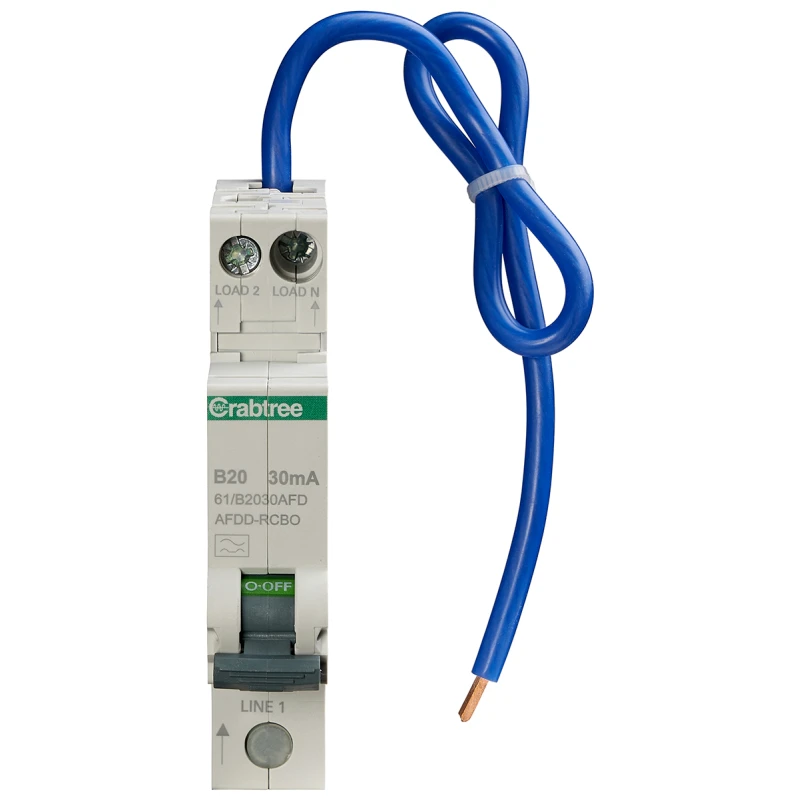

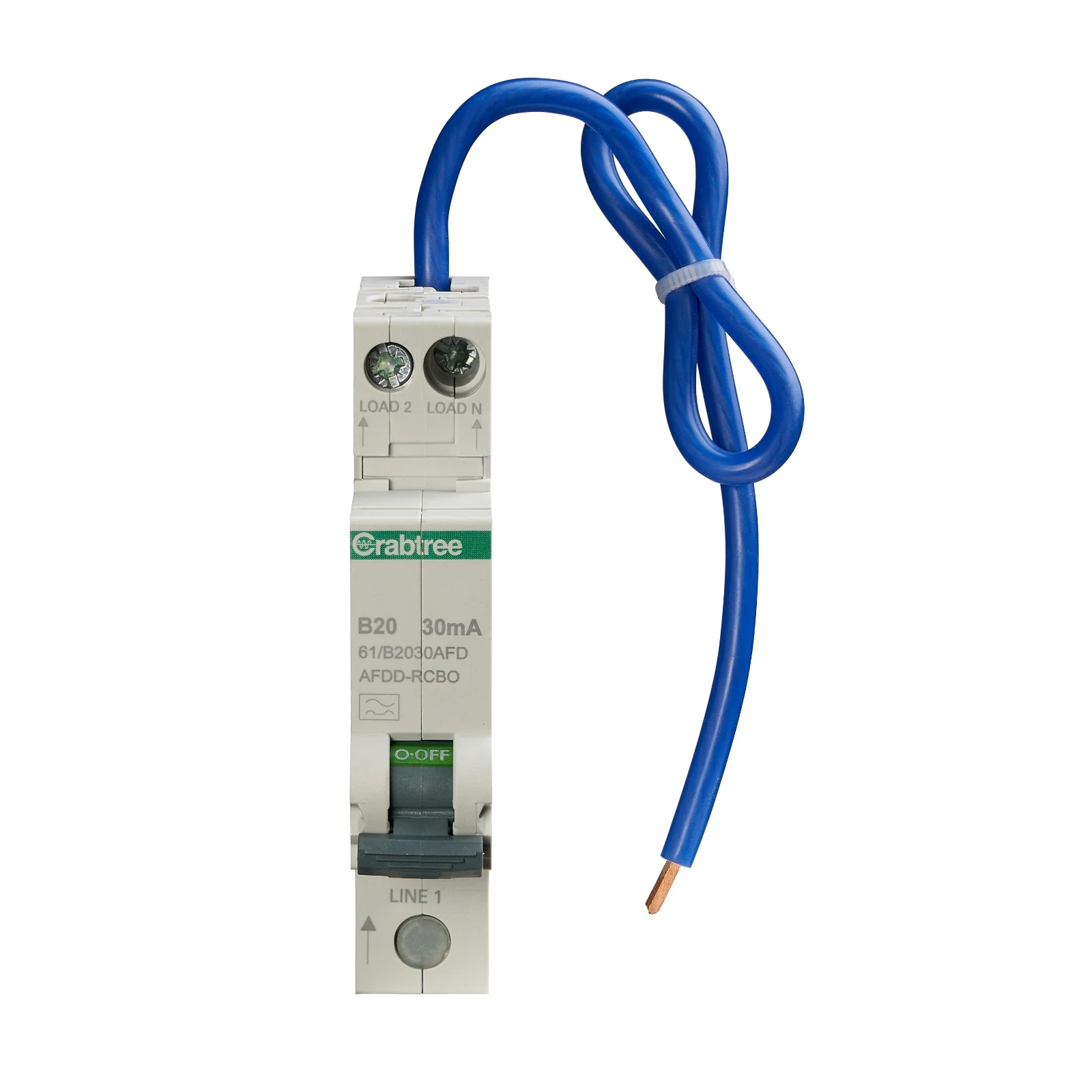

20A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO
£127.04 Incl. VAT
Crabtree Single module Miniature AFDD/RCBO provides the highest levels of protection for the installation and its users, do not require larger consumer units and AFDDs can easily be retro fitted into existing installations · · · Single module, Miniature AFDD/RCBO combined · · 20A B curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · Plug in · · 6kA Fault Rating · · AFFD/RCBO · · Suitable for use within Starbreaker Consumer Units · · Switched Neutral · · Type A RCD · · BS EN 62606
15 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Rated insulation voltage Ui 400 V Tripping characteristic (type/curve) B Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Rated current 20 A Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section solid-core 0.75 – 16 mm² Recess depth 73 mm Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 2 Over voltage category 3 Width in number of modular spacings 1 Rated voltage 230 V Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes With interlocking device No Flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
