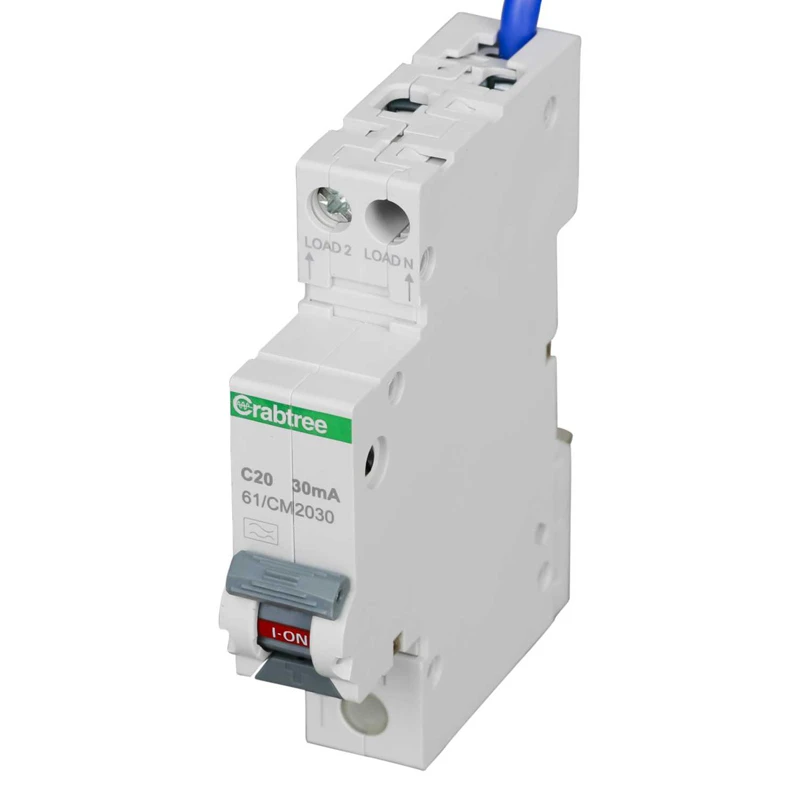

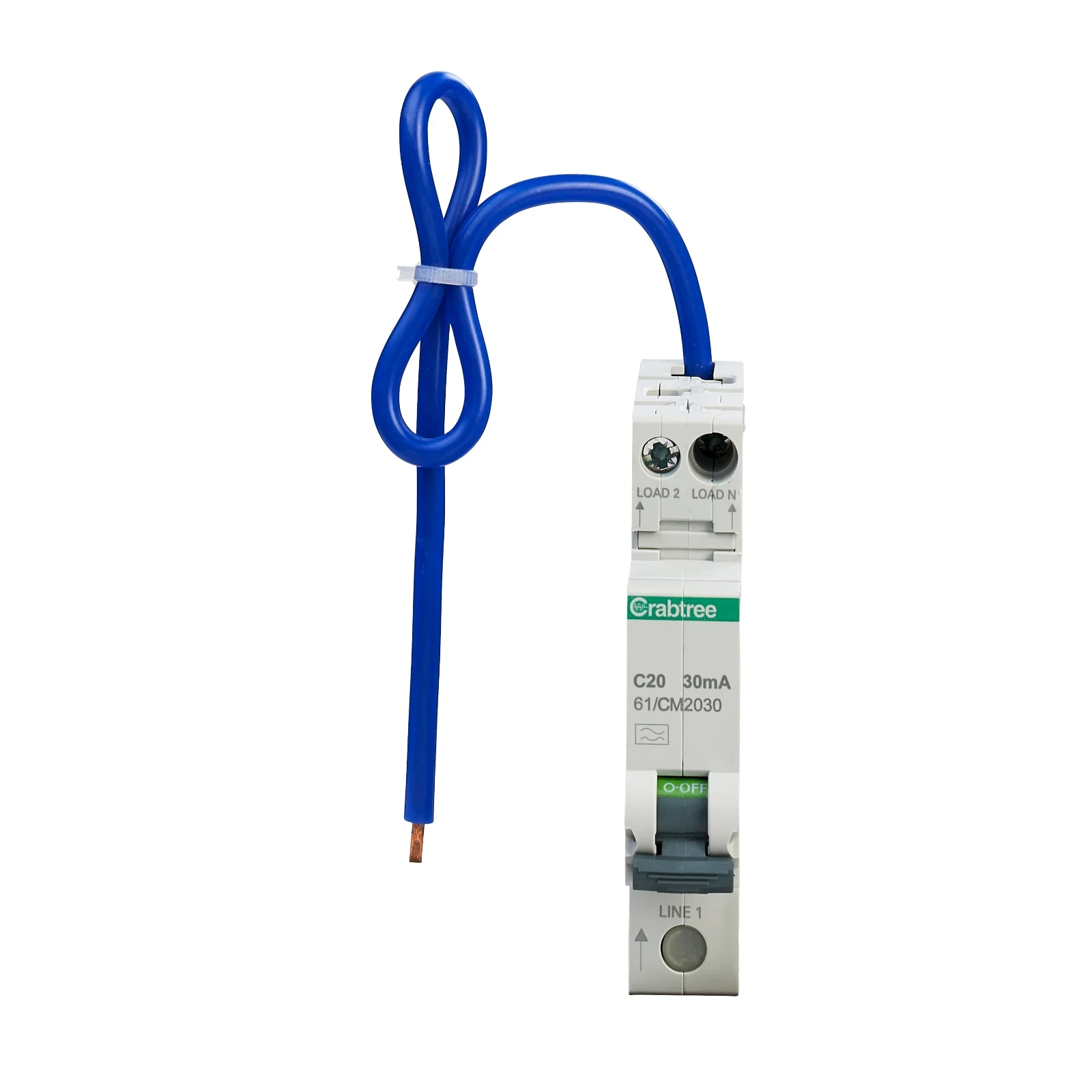

Crabtree 20A 30mA SPswN C Curve 6kA Type A Miniature RCBO
Crabtree 20A 30mA SPswN C Curve 6kA Type A Miniature RCBO
Crabtree 20A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 2
Crabtree 20A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 3
Crabtree 20A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 4

Crabtree 20A 30mA SPswN C Curve 6kA Type A Miniature RCBO

£38.86 Incl. VAT

Crabtree Starbreaker Miniature Residual Current Circuit Breaker with overcurrent protection (RCBO) brings higher levels of safety to an electrical installation and its users because it includes switched neutral as standard and bring cost savings by reduci · · · Single module, Miniature RCBO · · 20A C curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · Plug in · · RCD Type A – Pure AC and pulsating DC sensitivity · · BS 7671 IET Wiring Regulations · · Switched neutral built in as standard, fully isolates faults · · Instant guaranteed plug in connections · · Fully insulated busbar with permanent shields · · Neutral conductor switching

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 61/CM2030 Categories: , , Brand: Product Code: 2501074753

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Degree of protection (IP rating) IP20 Mounting method DIN rail Recess depth 73 mm Rated current 20 A Rated voltage 230 V Number of poles (total) 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Width in number of modular spacings 1 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Current limiting class 3 Over voltage category 3 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
