20AX 2 Way Grid Switch With Key Printed 'Emergency Light Test'
20AX 2 Way Grid Switch With Key Printed 'Emergency Light Test'

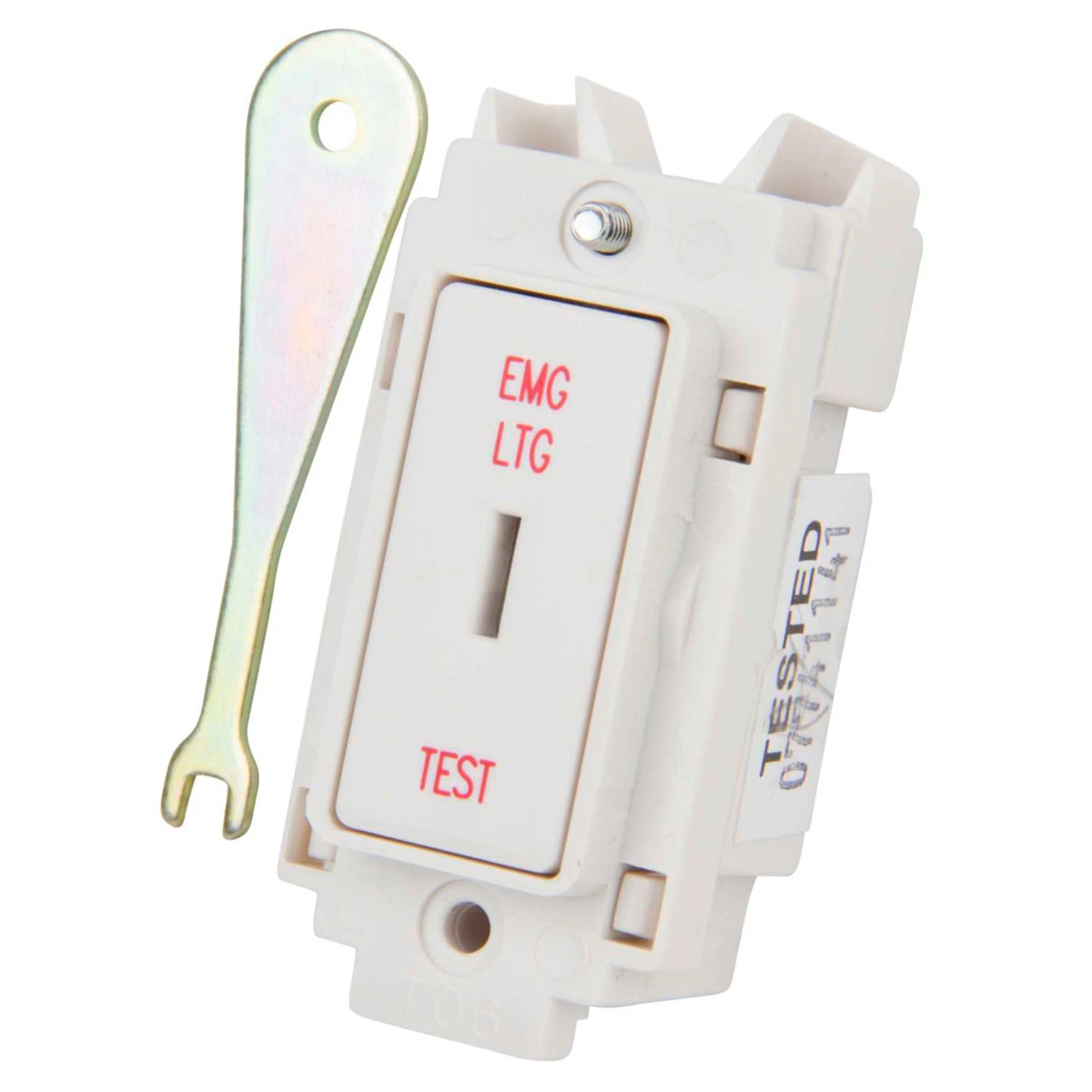

20AX 2 Way Grid Switch With Key Printed 'Emergency Light Test' - Image 2

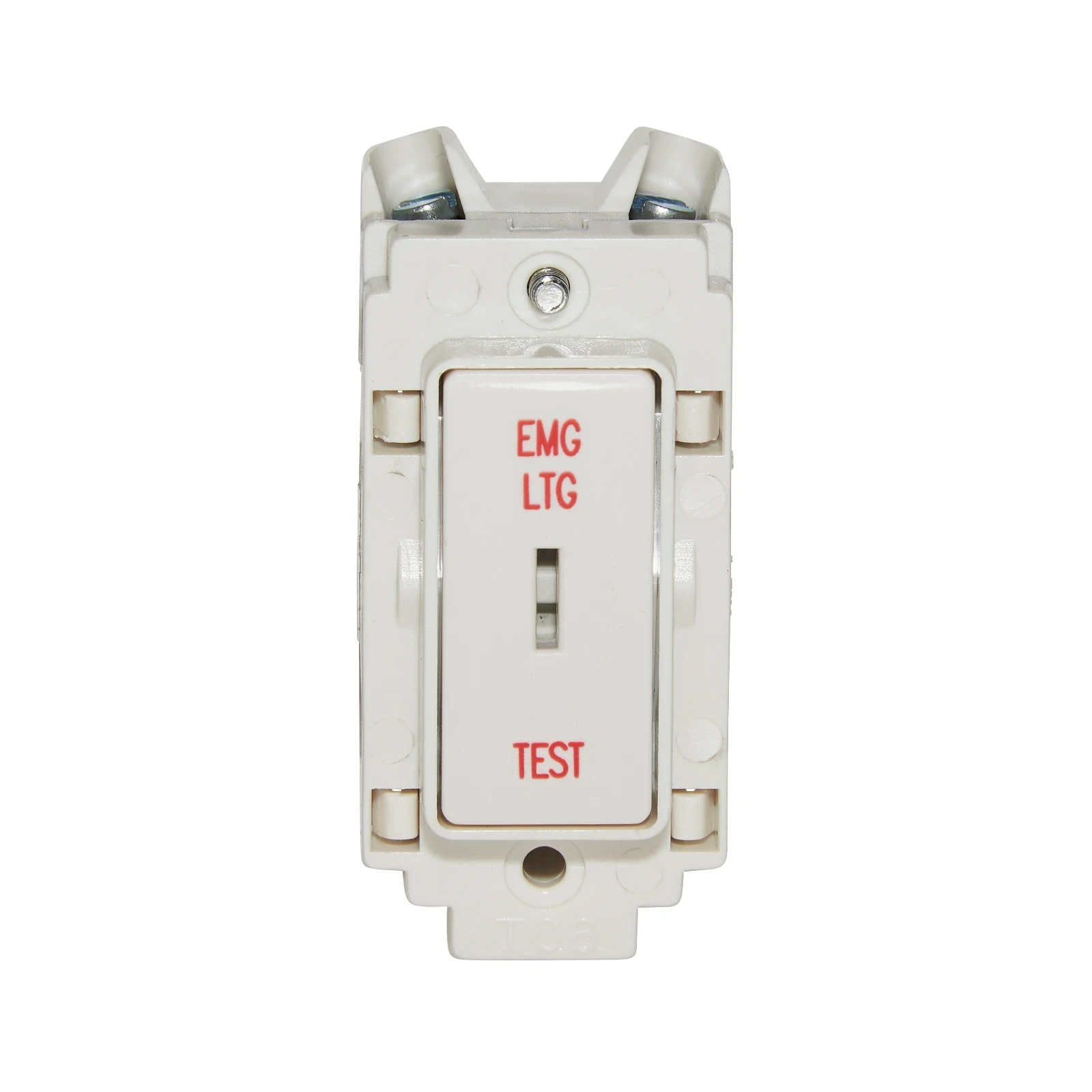

20AX 2 Way Grid Switch With Key Printed 'Emergency Light Test' - Image 3

20AX 2 Way Grid Switch With Key Printed ‘Emergency Light Test’

£12.73 Incl. VAT

· · Fully Rated for Fluorescent Loads · · Screw Fixed · · Positive drive switch action · · Can be wired for normally open (N/O) or normally closed (N/C) circuits

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 4551/ELT Categories: , , Brand: Part Number: 2500117531

Description

Technical Specifications  Technical Specifications Switch Minimum depth of back box 25 mm Width of device 25 mm Height of device 55.5 mm Depth of device 25 mm Rated current 20 A Number of rockers/gangs 0 Switching current for fluorescent lamps 20 AX Nominal voltage 250 V Number of module spaces (modular system) 1 Recess depth 20.5 mm Feedback-signal contact No Push button switch No Washing machine switch No With mounting plate No Halogen free Yes · Technical Data Sheet – Click to Download
