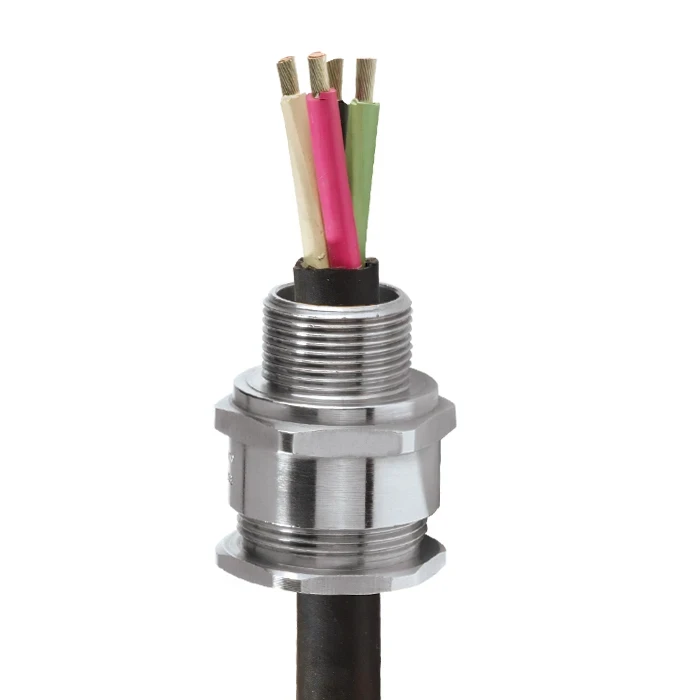

CMP Products 20mm Brass A2F Explosive Atmosphere PVC05 Shroud Cable Gland
CMP Products 20mm Brass A2F Explosive Atmosphere PVC05 Shroud Cable Gland

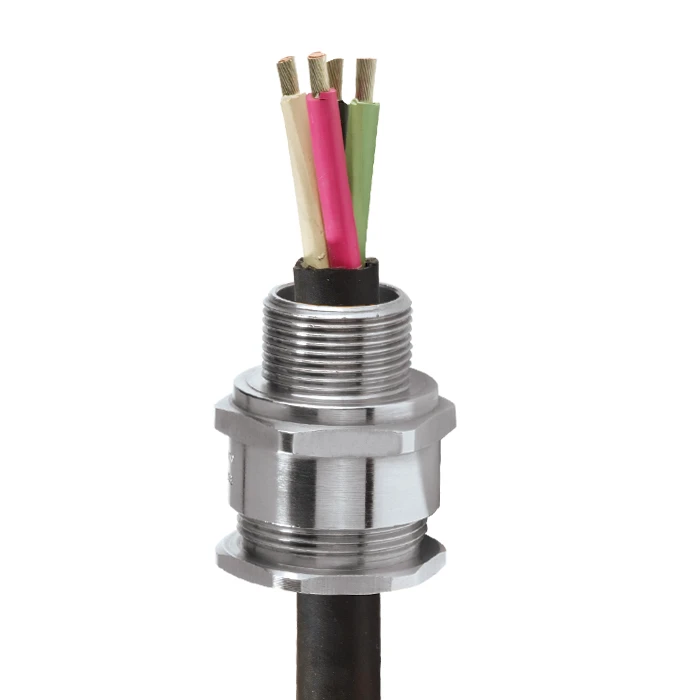

CMP Products 20mm Brass A2F Explosive Atmosphere PVC05 Shroud Cable Gland - Image 2
CMP Products 20mm Brass A2F Explosive Atmosphere PVC05 Shroud Cable Gland - Image 3
CMP Products 20mm Brass A2F Explosive Atmosphere PVC05 Shroud Cable Gland - Image 4

CMP Products 20mm Brass A2F Explosive Atmosphere PVC05 Shroud Cable Gland

£11.36 Incl. VAT

A2f globally approved, explosive atmosphere cable gland for all types of unarmoured & braided cables. · · · Displacement type flameproof seal · · Deluge protected · · Operating temperature -60C to +130C · · Globally marked, IECEx, ATEX & CSA · · Cable Type Unarmoured & Braided when terminated inside enclosure · · Sealing Technique CMP Unique Displacement Seal Concept · · Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium · · Compliance Standards EN 60079-0,1,7,15,31

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20A2F1RA Categories: , , Brand: Product Code: 2501072690

Description

Technical Specifications  Technical Specifications Cable gland Nominal thread size metric/PG 20 Hexagon angular dimension 29.7 mm Pitch thread 1.5 mm Spanner width 27 mm Thread length 15 mm Suitable for cable outer diameter 6.5 – 14 mm Working temperature -60 – 130 °C For armoured cable No Snapping in opening No EMC-version No Glass fibre reinforced No Bend radius protection/trumpet flare No Explosion-tested version Yes Locknut included No Multi cable sealing No Flat cable sealing No Shock resistant Yes With strain relief No Screened No · Technical Data Sheet – Click to Download
