22-32A Class10 Screw Terminal
22-32A Class10 Screw Terminal
22-32A Class10 Screw Terminal - Image 2
22-32A Class10 Screw Terminal - Image 3

22-32A Class10 Screw Terminal

£76.44 Incl. VAT

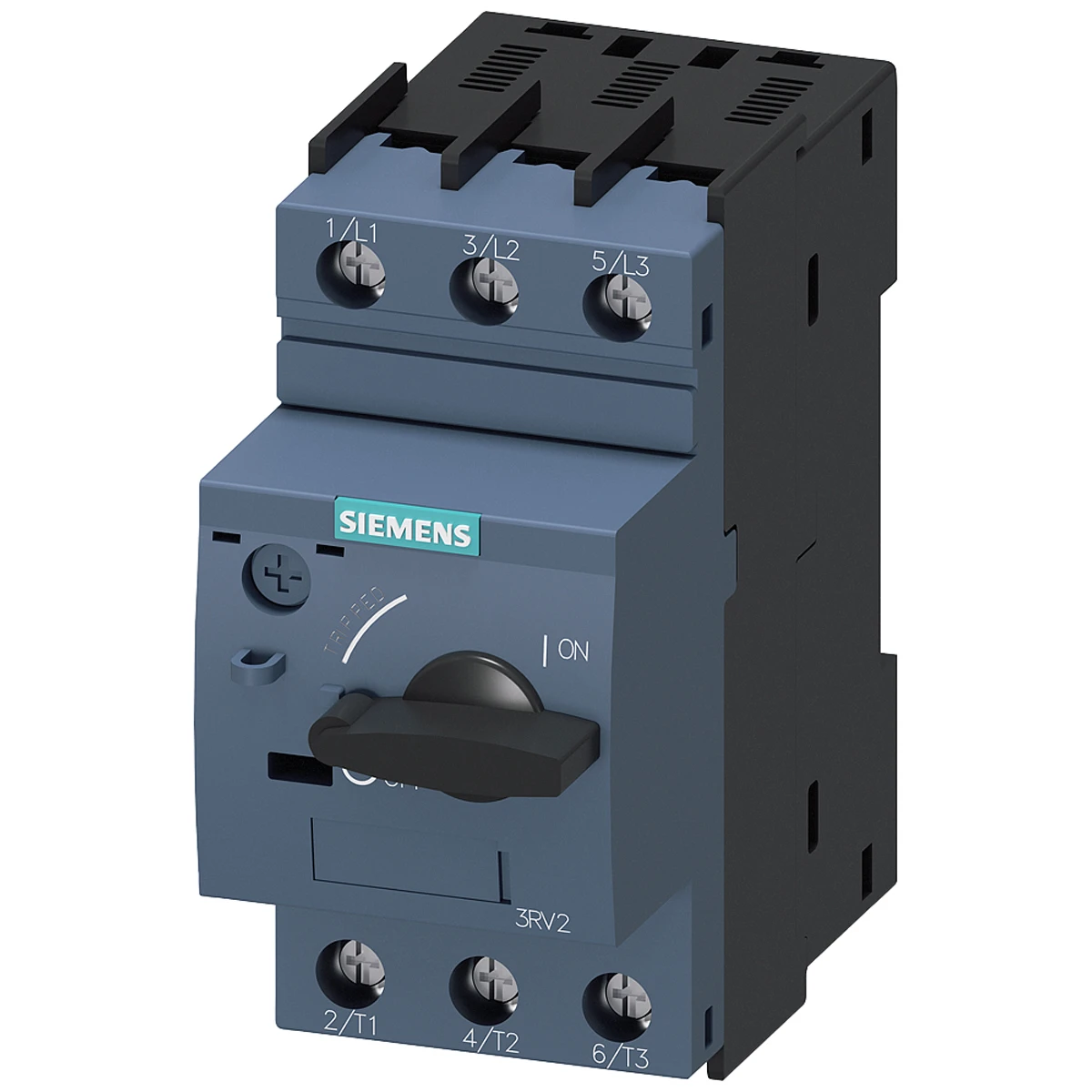

Siemens size S00 circuit breaker for motor protection with auxiliary switch. This circuit breaker has a CLASS 10 trip class and a thermal overload release design. Breaker also has a phase failure detection function. · · · Adjustable pick-up value current of overload release: 2.2 – 3.2A · · Response value current: 42A · · Screw clamp terminals: 2x (0.75 – 2.5mm²), 2 x 4mm² · · Any mounting position · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Tightening torque: 0.8 – 1.2Nm · · Mechanical/Electrical durability: 100000 cycles · · Ambient operating temperature: -20°C to 60°C · · IP20 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RV2011-1DA10 Categories: , , Brand: Part Number: 1050391774

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Degree of protection (IP rating) IP20 Switch off technique Magnetic Type of control element Rotating button Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Rated operation power at AC-3, 230 V 0.55 kW Rated permanent current Iu 3.2 A Number of poles 3 Rated operation power at AC-3, 400 V 1.1 kW Width 45 mm Type of electrical connection of main circuit Screw connection Device construction Built-in device fixed built-in technique Depth 97 mm Height 97 mm Overload release current setting 2.2 – 3.2 A Adjustment range undelayed short-circuit release 42 – 42 A Rated operating voltage 690 – 690 V Phase failure sensitive Yes With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
