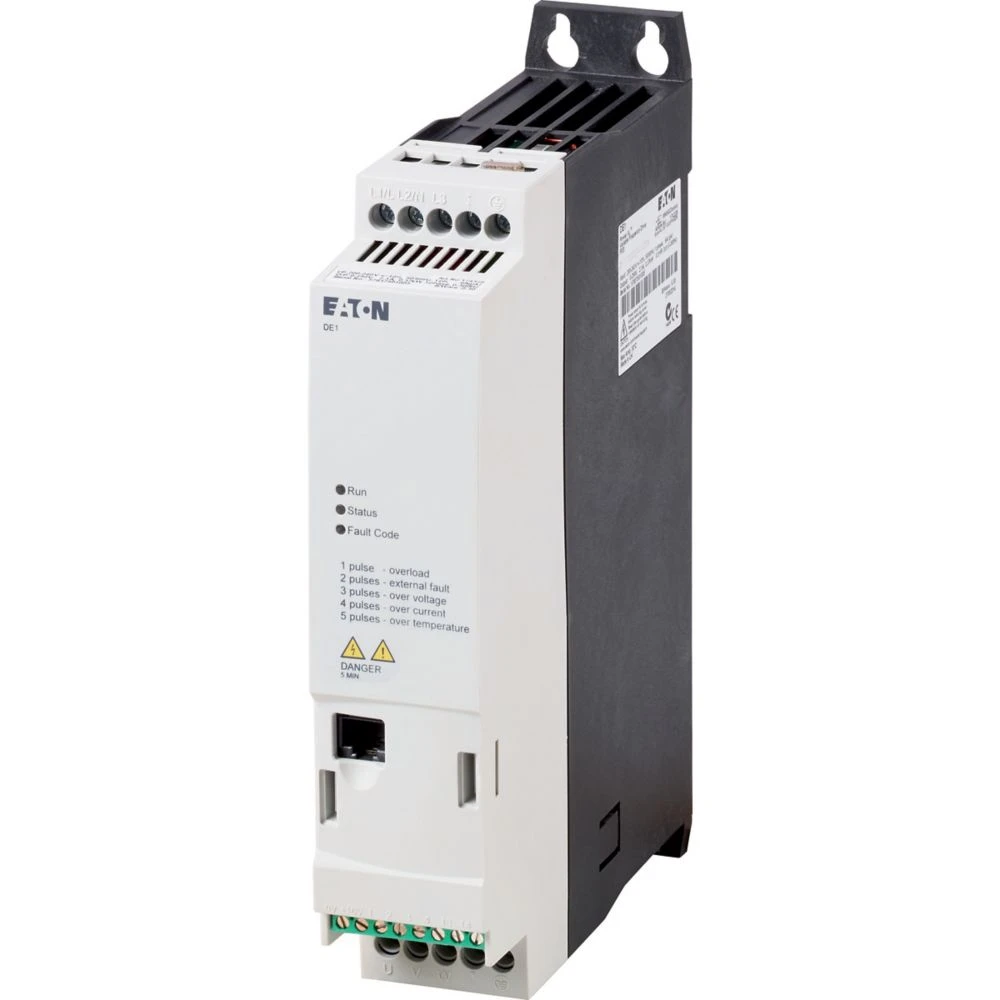

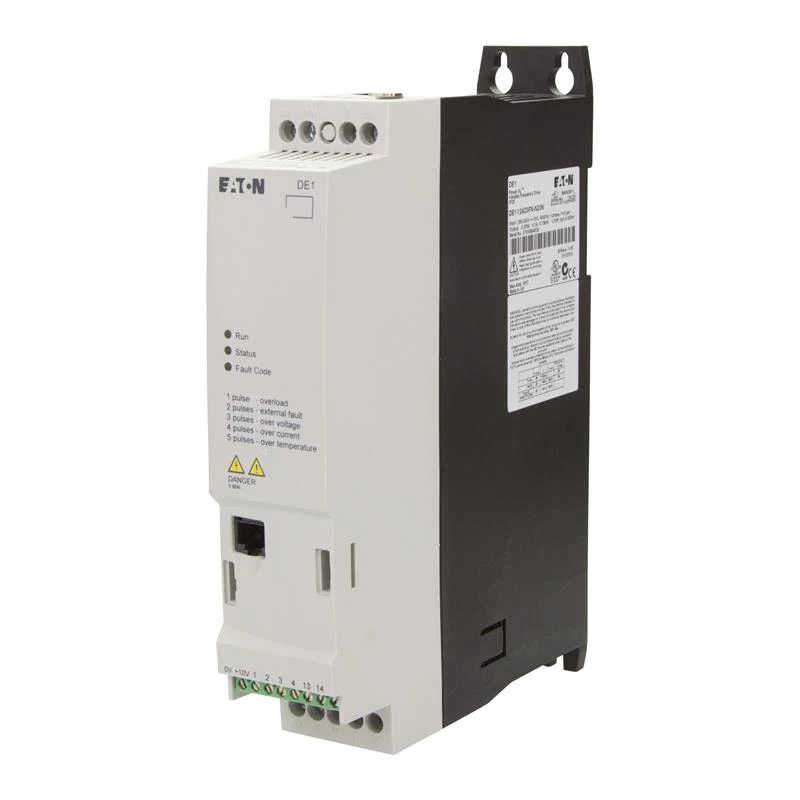

230V Ac 4.3A PowerXL DE1 Variable Speed Starter
230V Ac 4.3A PowerXL DE1 Variable Speed Starter
230V Ac 4.3A PowerXL DE1 Variable Speed Starter - Image 2
230V Ac 4.3A PowerXL DE1 Variable Speed Starter - Image 3
230V Ac 4.3A PowerXL DE1 Variable Speed Starter - Image 4

230V Ac 4.3A PowerXL DE1 Variable Speed Starter

£184.13 Incl. VAT

The Moeller series PowerXL DE1 was designed for customers who have basic applications but still require variable frequency and advanced motor protection. The PowerXL DE1 allows customers to simplify their design and reduce installation and commissioning time while introducing an innovative solution to their system. · · · Fit & forget design makes this style of starter perfect for less complicated installations · · Available in power rating varying from 0.25kW to 7.5kW, with both single & three phase options available · · Utilises SmartWire-DT technology, making installation even simpler to other compatible products · · Fitted with a radio interference suppression filter · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · Mechanical durability: 30 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DE1-124D3FN-N20N Categories: , , Brand: Part Number: 2500808285

Description

Technical Specifications  Technical Specifications Frequency converter =< 1 kV Number of phases input 1 Degree of protection (IP rating) IP20 Type of converter U converter Mains frequency 50/60 Hz Width 45 mm Number of phases output 3 Depth 169 mm Power consumption 32 W Number of digital outputs 0 Number of digital inputs 4 Height 230 mm Number of analogue outputs 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-232 0 Number of HW-interfaces industrial Ethernet 0 Number of analogue inputs 1 Number of HW-interfaces RS-485 1 Number of HW-interfaces USB 0 Max. output frequency 300 Hz Relative symmetric net frequency tolerance 10 % Relative symmetric net voltage tolerance 10 % Max. output at quadratic load at rated output voltage 0.75 kW Max. output at linear load at rated output voltage 0.75 kW Number of HW-interfaces PROFINET 0 Number of HW-interfaces other 0 Number of HW-interfaces parallel 0 With PC connection Yes Supporting protocol for AS-Interface Safety at Work No Supporting protocol for LON No Supporting protocol for PROFIBUS No Mains voltage 200 – 240 V Nominal output current I2N 4.3 A Max. output voltage 250 V Supporting protocol for TCP/IP No 4-quadrant operation possible No Integrated breaking resistance No Application in industrial area permitted Yes Supporting protocol for INTERBUS-Safety No Supporting protocol for SERCOS No Supporting protocol for other bus systems Yes Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for MODBUS Yes With optical interface No With control unit No Supporting protocol for ASI No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for KNX No Supporting protocol for Data-Highway No Supporting protocol for BACnet No Supporting protocol for SafetyBUS p No Application in domestic- and commercial area permitted Yes Supporting protocol for PROFIsafe No Supporting protocol for PROFINET CBA No Supporting protocol for PROFINET IO No Supporting protocol for Foundation Fieldbus No Supporting protocol for DeviceNet Safety No Supporting protocol for EtherNet/IP Yes · Technical Data Sheet – Click to Download
