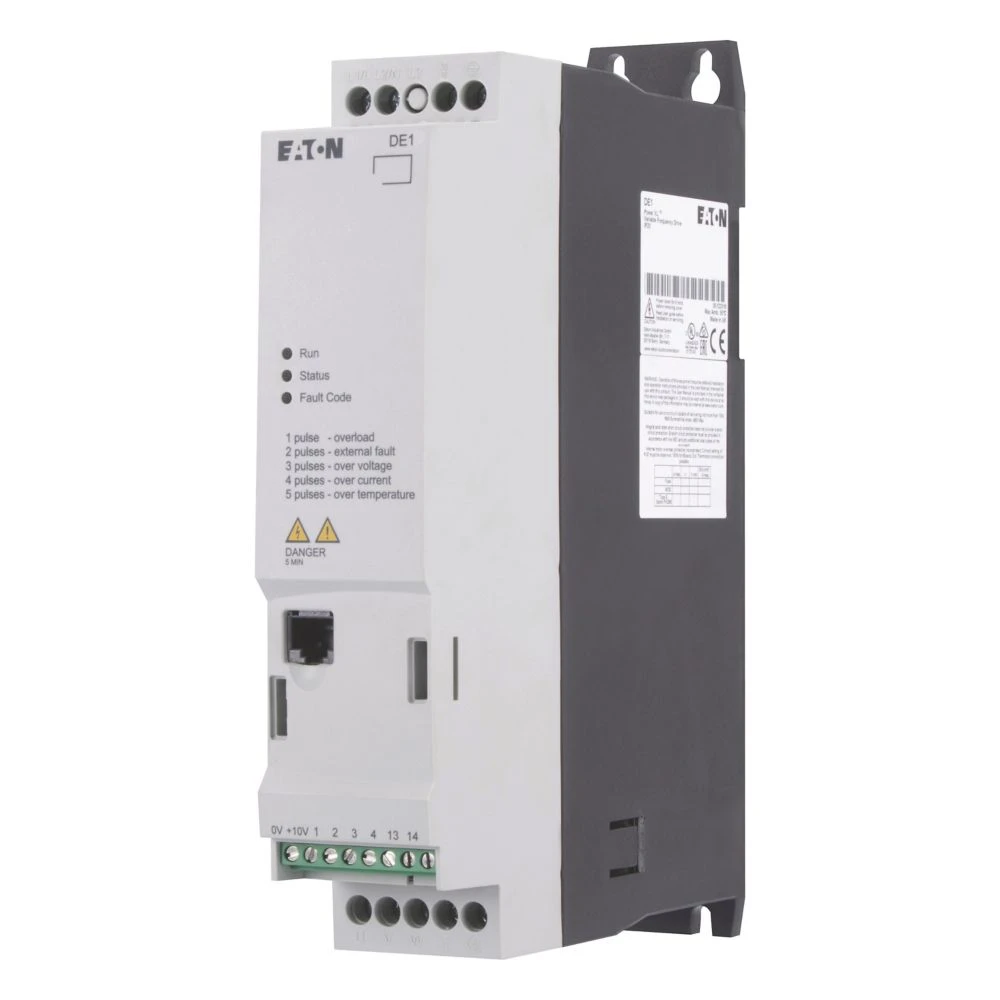

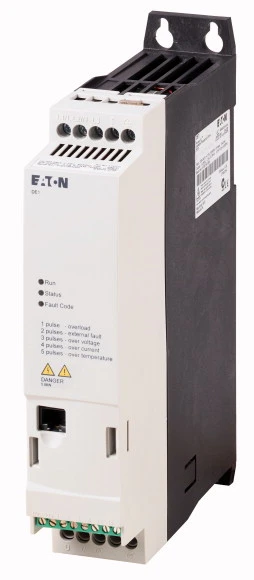

230V Ac 7.5A PowerXL DE1 Variable Speed Starter
230V Ac 7.5A PowerXL DE1 Variable Speed Starter
230V Ac 7.5A PowerXL DE1 Variable Speed Starter - Image 2
230V Ac 7.5A PowerXL DE1 Variable Speed Starter - Image 3
230V Ac 7.5A PowerXL DE1 Variable Speed Starter - Image 4

230V Ac 7.5A PowerXL DE1 Variable Speed Starter

£274.38 Incl. VAT

The Moeller series PowerXL DE1 was designed for customers who have basic applications but still require variable frequency and advanced motor protection. The PowerXL DE1 allows customers to simplify their design and reduce installation and commissioning time while introducing an innovative solution to their system. · · · Fit & forget design makes this style of starter perfect for less complicated installations · · Available in power rating varying from 0.25kW to 7.5kW, with both single & three phase options available · · Utilises SmartWire-DT technology, making installation even simpler to other compatible products · · Fitted with a radio interference suppression filter · · It has a Zamak body with a booted pushbutton reset, Chloroprene bellows, no pilot light, and 1 normally open and 1 normally closed slow break contacts. · · Its B10D reliability data is 4 000 000. · · This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. · · Its IP65 degree of protection makes it ideal for heavy duty use in harsh conditions.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DE1-127D0FN-N20N Categories: , , Brand: Part Number: 2500808287

Description

Technical Specifications  Technical Specifications Frequency converter =< 1 kV Mains frequency 50/60 Hz Degree of protection (IP rating) IP20 Number of phases input 1 Number of phases output 3 Type of converter U converter Width 45 mm Depth 169 mm Height 230 mm Power consumption 59 W Number of analogue inputs 1 Number of digital outputs 0 Number of HW-interfaces other 0 Number of HW-interfaces RS-485 1 Number of HW-interfaces RS-422 0 Number of HW-interfaces parallel 0 Number of digital inputs 4 Number of HW-interfaces RS-232 0 Number of HW-interfaces industrial Ethernet 0 Number of analogue outputs 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces USB 0 Number of HW-interfaces PROFINET 0 Max. output frequency 300 Hz Max. output at linear load at rated output voltage 1.5 kW Max. output at quadratic load at rated output voltage 1.5 kW Relative symmetric net voltage tolerance 10 % Relative symmetric net frequency tolerance 10 % Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for LON No With control unit No Mains voltage 200 – 240 V Nominal output current I2N 7 A Max. output voltage 250 V Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No With optical interface No Supporting protocol for ASI No Supporting protocol for KNX No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for MODBUS Yes Supporting protocol for EtherNet/IP Yes 4-quadrant operation possible No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Application in domestic- and commercial area permitted Yes Application in industrial area permitted Yes Integrated breaking resistance No With PC connection Yes Supporting protocol for AS-Interface Safety at Work No Supporting protocol for other bus systems Yes Supporting protocol for SUCONET No Supporting protocol for Foundation Fieldbus No Supporting protocol for DeviceNet Safety No Supporting protocol for SafetyBUS p No Supporting protocol for BACnet No Supporting protocol for PROFIsafe No Supporting protocol for PROFINET CBA No Supporting protocol for PROFINET IO No · Technical Data Sheet – Click to Download
