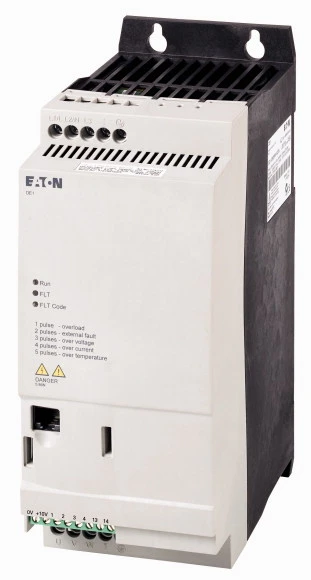

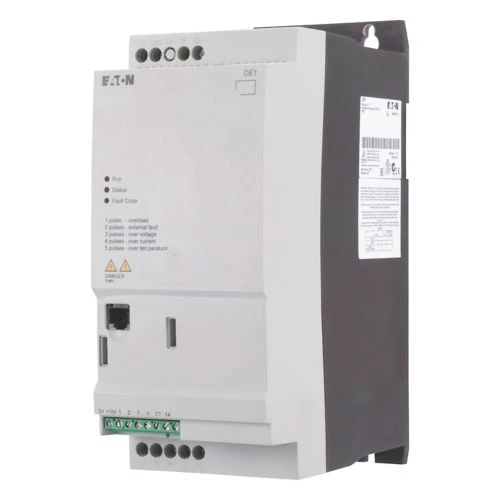

230V Ac 9.6A PowerXL DE1 Variable Speed Starter
£314.77 Incl. VAT
The Moeller series PowerXL DE1 was designed for customers who have basic applications but still require variable frequency and advanced motor protection. The PowerXL DE1 allows customers to simplify their design and reduce installation and commissioning time while introducing an innovative solution to their system. · · · Fit & forget design makes this style of starter perfect for less complicated installations · · Available in power rating varying from 0.25kW to 7.5kW, with both single & three phase options available · · Utilises SmartWire-DT technology, making installation even simpler to other compatible products · · Fitted with a radio interference suppression filter · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). · · Mechanical durability: 5 Mcycles · · Minimum switching current/voltage: 5mA/17V · · Non-overlap time: 1.5ms (energisation/de-energisation) · · Ambient operating temperature: -5°C to 60°C · · IP2x Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Frequency converter =< 1 kV Mains frequency 50/60 Hz Degree of protection (IP rating) IP20 Number of phases input 1 Type of converter U converter Number of phases output 3 Width 90 mm Max. output at quadratic load at rated output voltage 2.2 kW Number of HW-interfaces PROFINET 0 Max. output voltage 250 V Relative symmetric net frequency tolerance 10 % Relative symmetric net voltage tolerance 10 % Max. output at linear load at rated output voltage 2.2 kW Max. output frequency 300 Hz Height 230 mm Number of HW-interfaces industrial Ethernet 0 Number of HW-interfaces USB 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces RS-485 1 Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-232 0 Nominal output current I2N 9.6 A Number of HW-interfaces parallel 0 Number of HW-interfaces other 0 Depth 169 mm Number of digital inputs 4 Power consumption 105 W Number of digital outputs 0 Number of analogue outputs 0 Number of analogue inputs 1 With control unit No Supporting protocol for INTERBUS No Supporting protocol for KNX No With optical interface No Supporting protocol for LON No Supporting protocol for TCP/IP No Mains voltage 200 – 240 V Supporting protocol for ASI No Supporting protocol for CAN No Supporting protocol for PROFIBUS No Supporting protocol for PROFINET IO No Supporting protocol for Foundation Fieldbus No With PC connection Yes 4-quadrant operation possible No Integrated breaking resistance No Application in industrial area permitted Yes Supporting protocol for EtherNet/IP Yes Supporting protocol for other bus systems Yes Supporting protocol for SERCOS No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Application in domestic- and commercial area permitted Yes Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for MODBUS Yes Supporting protocol for PROFIsafe No Supporting protocol for PROFINET CBA No Supporting protocol for SafetyBUS p No Supporting protocol for BACnet No · Technical Data Sheet – Click to Download
