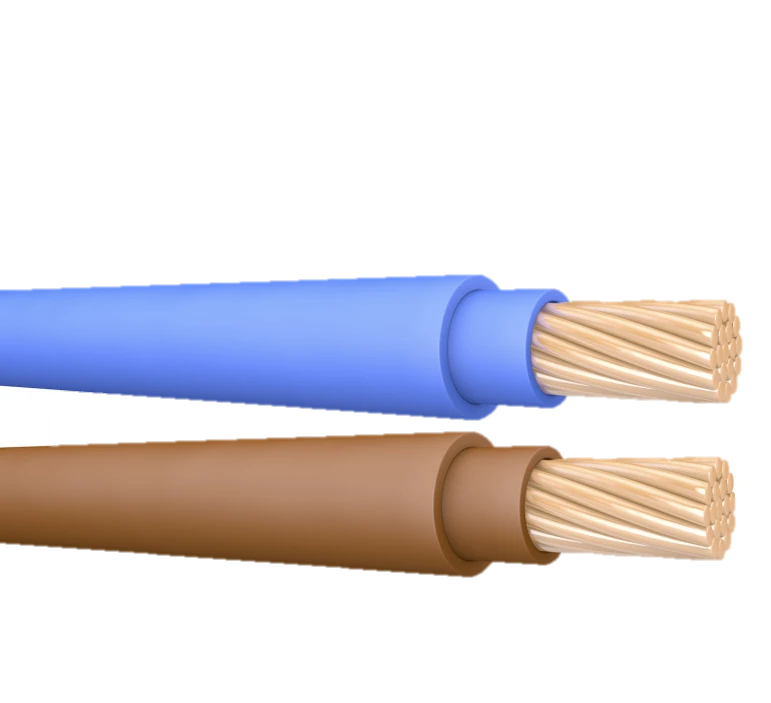

25.0mm² Blue/Brown PVC Insulated Sheathed 1-Core Flexible 1m Cable

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Conductor material Copper Protective barrier None Sheath colour Blue Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Max. conductor temperature 70 °C Oil resistant according to IEC 60811-404 No Permitted cable outer temperature during assembling/handling 0 – 60 °C Nominal cross sectional area of conductor 25 mm² Nominal voltage U 500 V Number of cores 1 Outer diameter approx. 10.9 mm Nominal voltage U0 300 V Drain wire No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
