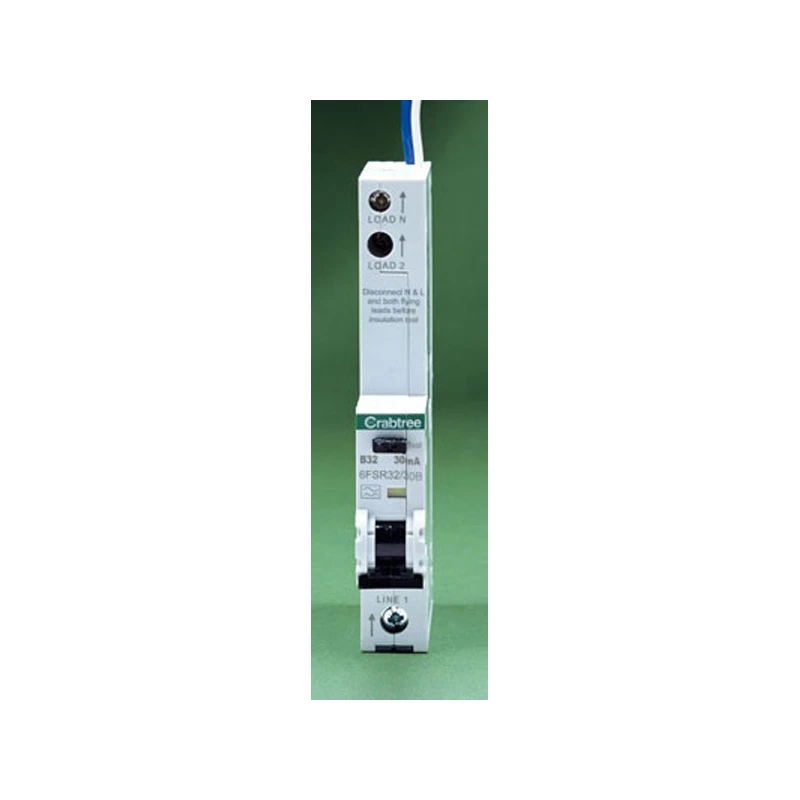

32A 30mA SPN B Curve 6kA Type A RCBO
32A 30mA SPN B Curve 6kA Type A RCBO
32A 30mA SPN B Curve 6kA Type A RCBO - Image 2

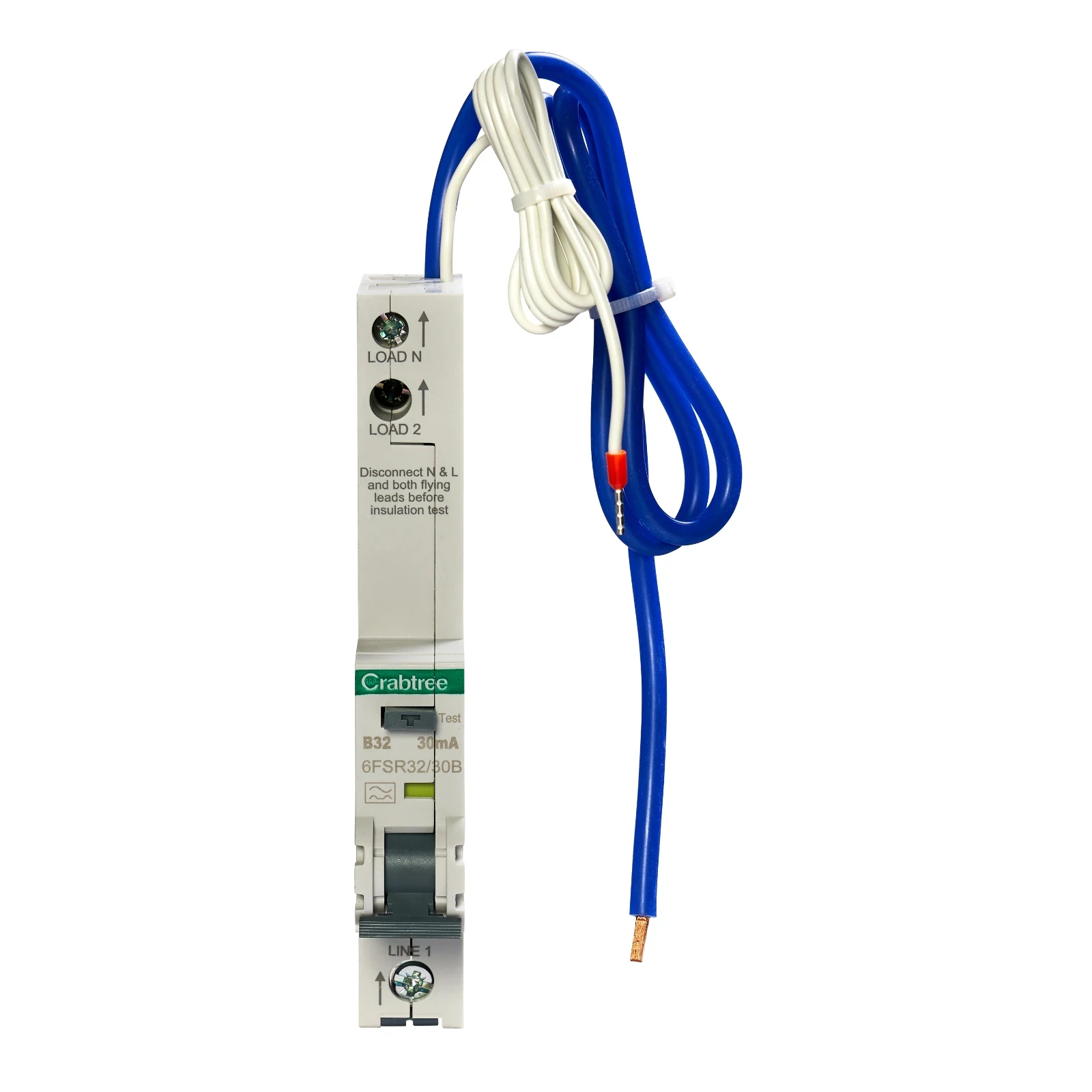

32A 30mA SPN B Curve 6kA Type A RCBO - Image 3

32A 30mA SPN B Curve 6kA Type A RCBO

£46.40 Incl. VAT

A Residual Current Circuit Breaker, combination with miniature circuit breaker in a compact single module design. An RCBO with a rated residual tripping current of 30mA meeting the requirements of can be used for circuits and cable installation. · · · Single module, RCBO · · 32A B curve (MCB), 30mA Type A (RCD) · · Single pole · · Cross section conductor 0.75-16mm² · · B release characteristic

8 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6FSR32/30B Categories: , , Brand: Part Number: 2500329811

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) B Recess depth 74 mm Rated current 32 A Rated voltage 230 V Current limiting class 3 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated fault current 0.03 A Rated insulation voltage Ui 400 V Number of protected poles 1 Number of poles (total) 2 Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
