Description

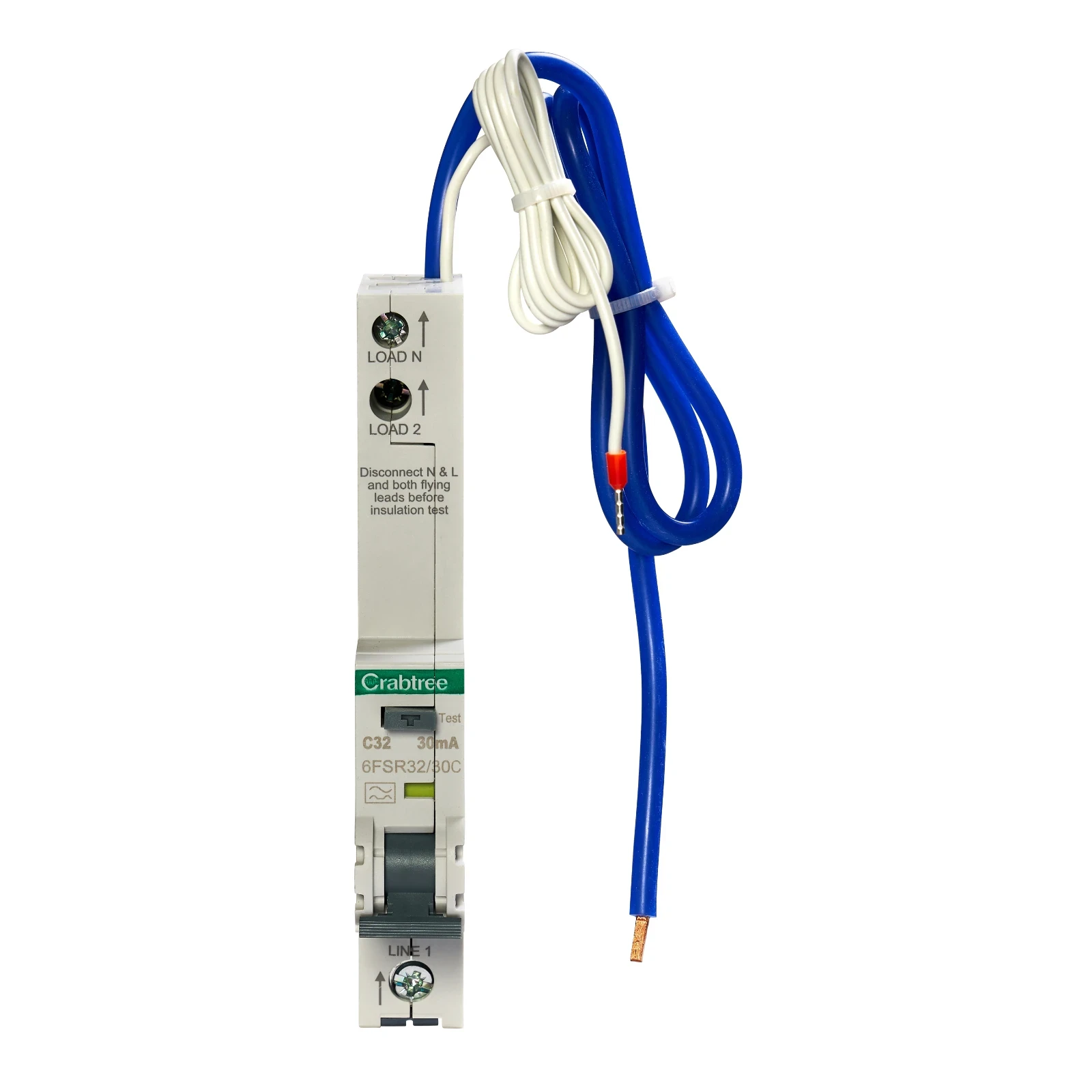

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Recess depth 74 mm Tripping characteristic (type/curve) C Rated current 32 A Rated voltage 230 V Rated insulation voltage Ui 400 V Rated fault current 0.03 A Width in number of modular spacings 1 Current limiting class 3 Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 2 Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Concurrently switching N-neutral No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
