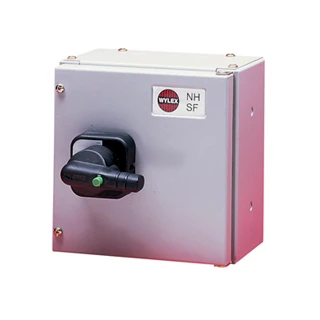

32A 3P+N Fuse Combination Unit c/w Fuses
32A 3P+N Fuse Combination Unit c/w Fuses

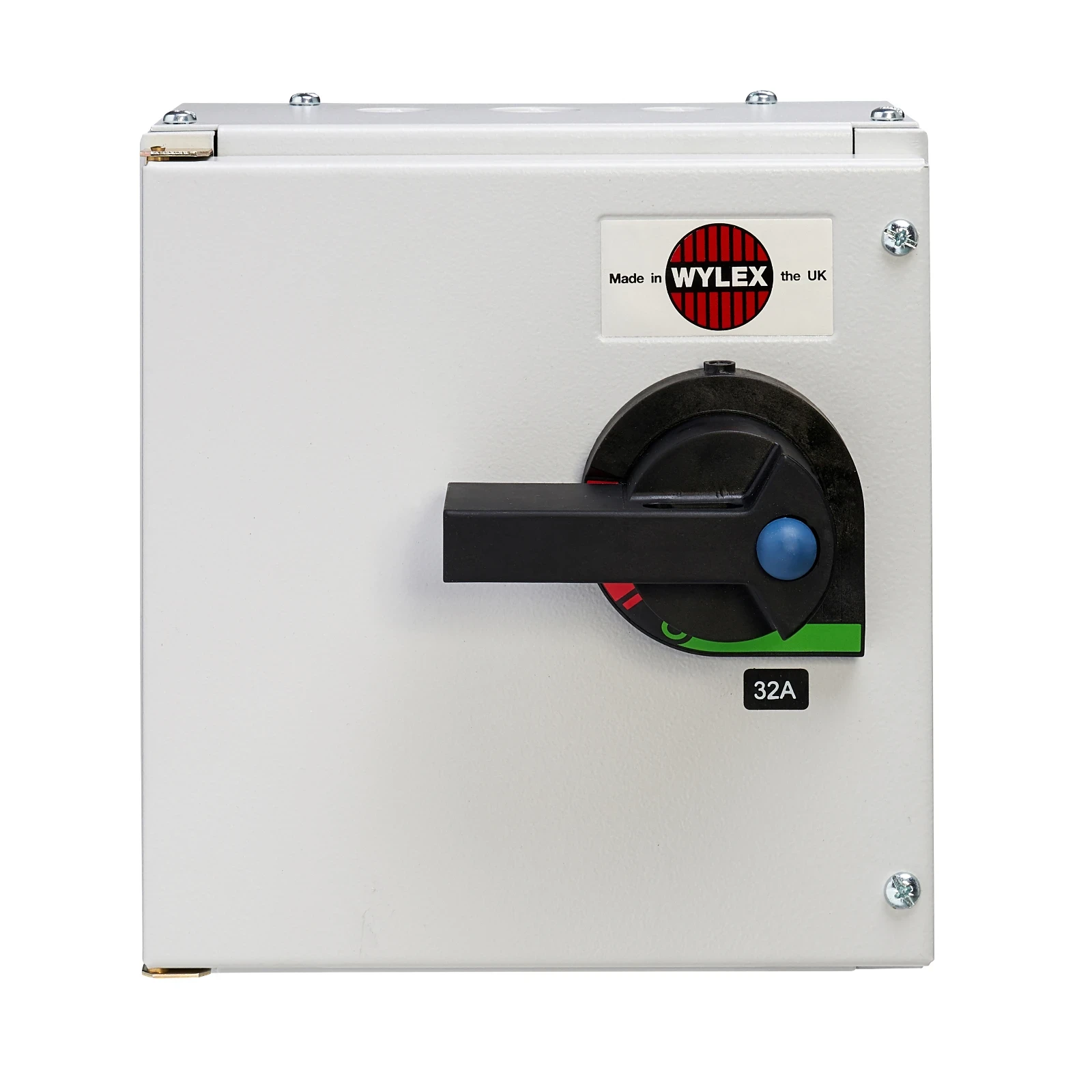

32A 3P+N Fuse Combination Unit c/w Fuses - Image 2
32A 3P+N Fuse Combination Unit c/w Fuses - Image 3

32A 3P+N Fuse Combination Unit c/w Fuses

£207.26 Incl. VAT

Robust steel enclosures with cable glanding plate supplied top and bottom removable door opens through 180 for ease of access. Easy access fuse link fixings fully rated neutral. Fully shrouded terminals. Handle padlocking facility locks switch and door in. · · · Supplied with 32A fuses. · · Painted RAL 7035 steel enclosure 225mmH x 210mmW x 136mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked · · Material: Steel (Enclosure) · · Number of Poles: Triple Pole · · Width: 210mm · · Depth: 200mm · · IP Rating: IP4X · · Number of Knockouts: Three Knockouts

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHTPSF32 Categories: , , Brand: Part Number: 2500116475

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 32 A Conditioned rated short-circuit current Iq 50 kA Max. rated operation voltage Ue AC 415 V Rated short-time withstand current lcw 1.26 kA Rated operation power at AC-23, 400 V 11 kW Number of poles 3 With error protection No Suitable for busbar mounting No Suitable for front mounting 4-hole No Motor drive optional No Equipped with connectors Yes Motor drive integrated No Version as emergency stop installation No Suitable for floor mounting No Version as safety switch No Version as main switch Yes · Technical Data Sheet – Click to Download
