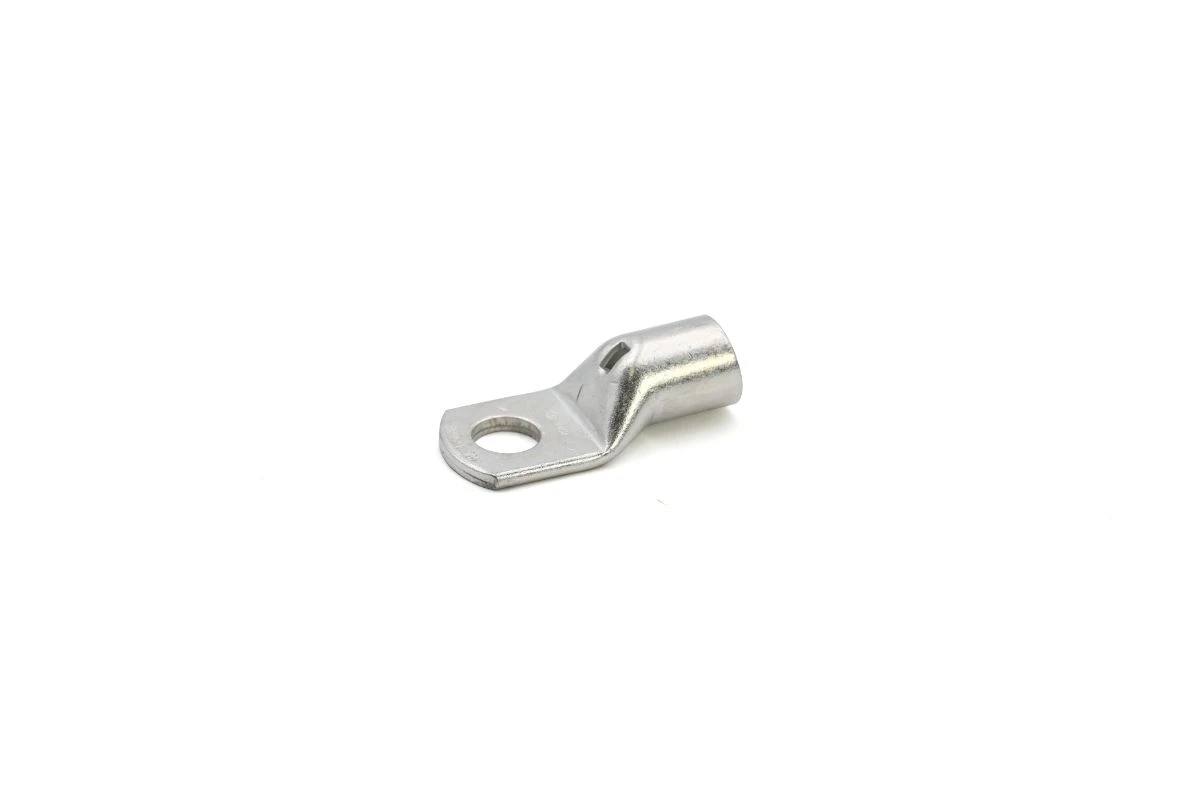

Cembre 35mm² Copper lug flexible M8 [Pack of 100]
Cembre 35mm² Copper lug flexible M8 [Pack of 100]
Cembre 35mm² Copper lug flexible M8 [Pack of 100] - Image 2
Cembre 35mm² Copper lug flexible M8 [Pack of 100] - Image 3
Cembre 35mm² Copper lug flexible M8 [Pack of 100] - Image 4

Cembre 35mm² Copper lug flexible M8 [Pack of 100]

£1.40 Incl. VAT

35mm² Copper tube crimping lug for extra flexible copper conductor M8 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Designed to accept a variety of conductor forms · · Tab/Pin Size: 17 mm · · Diameter: 9.3 mm · · Length Min Max: 40.5 mm · · Width: 17 mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9-M8 Categories: , , Brand: Product Code: 2500005288

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper AWG size 2 Connecting angle 180° (horizontal) Surface protection Tinned Bolt dimension (metric) 8 Nominal cross section 35 mm² Flange shape Ring shape Number of fixing holes 1 With sight-hole Yes Insulated No Slender flange model No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573501
