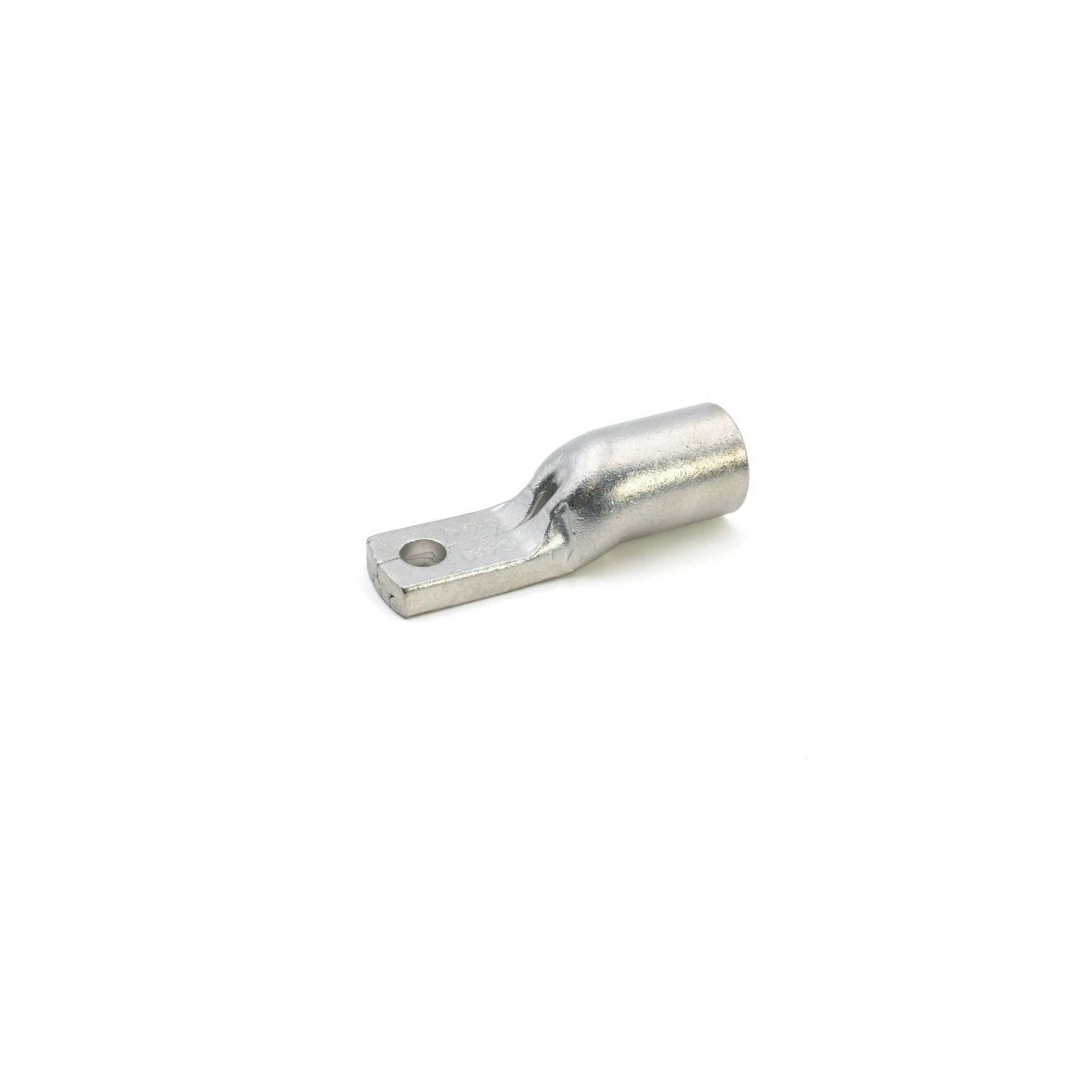

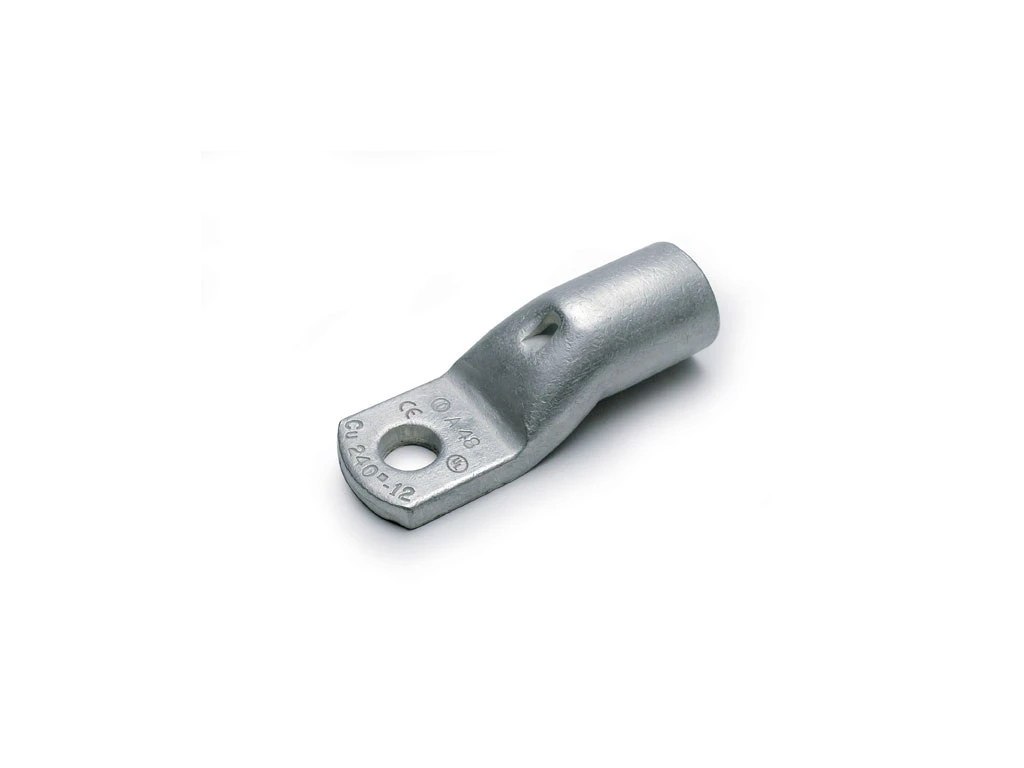

35mm² Copper Tube Crimping Lug With Contained Palm M8 Stud
35mm² Copper Tube Crimping Lug With Contained Palm M8 Stud
35mm² Copper Tube Crimping Lug With Contained Palm M8 Stud - Image 2
35mm² Copper Tube Crimping Lug With Contained Palm M8 Stud - Image 3

35mm² Copper Tube Crimping Lug With Contained Palm M8 Stud

£2.45 Incl. VAT

· · Contained Palm Connector · · Funnel Entry- Facilitated Introduction Of The Conductor · · Annealed Material · · Electrolytically Tin Plated To Avoid Oxidation; Min 3Μm · · Operating Temperature Range: -50°C To + 150°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A7B-M8/14 Categories: , Brand: Part Number: 2501492944

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) AWG size 2 Material Copper Conductor category Class 5 = flexible Flange shape Ring shape Surface protection Tinned Number of fixing holes 1 Nominal cross section 35 mm² Bolt dimension (metric) 8 With sight-hole No Slender flange model Yes Insulated No
