Schneider Electric 3P 36kA Motor CB

£866.34 Incl. VAT

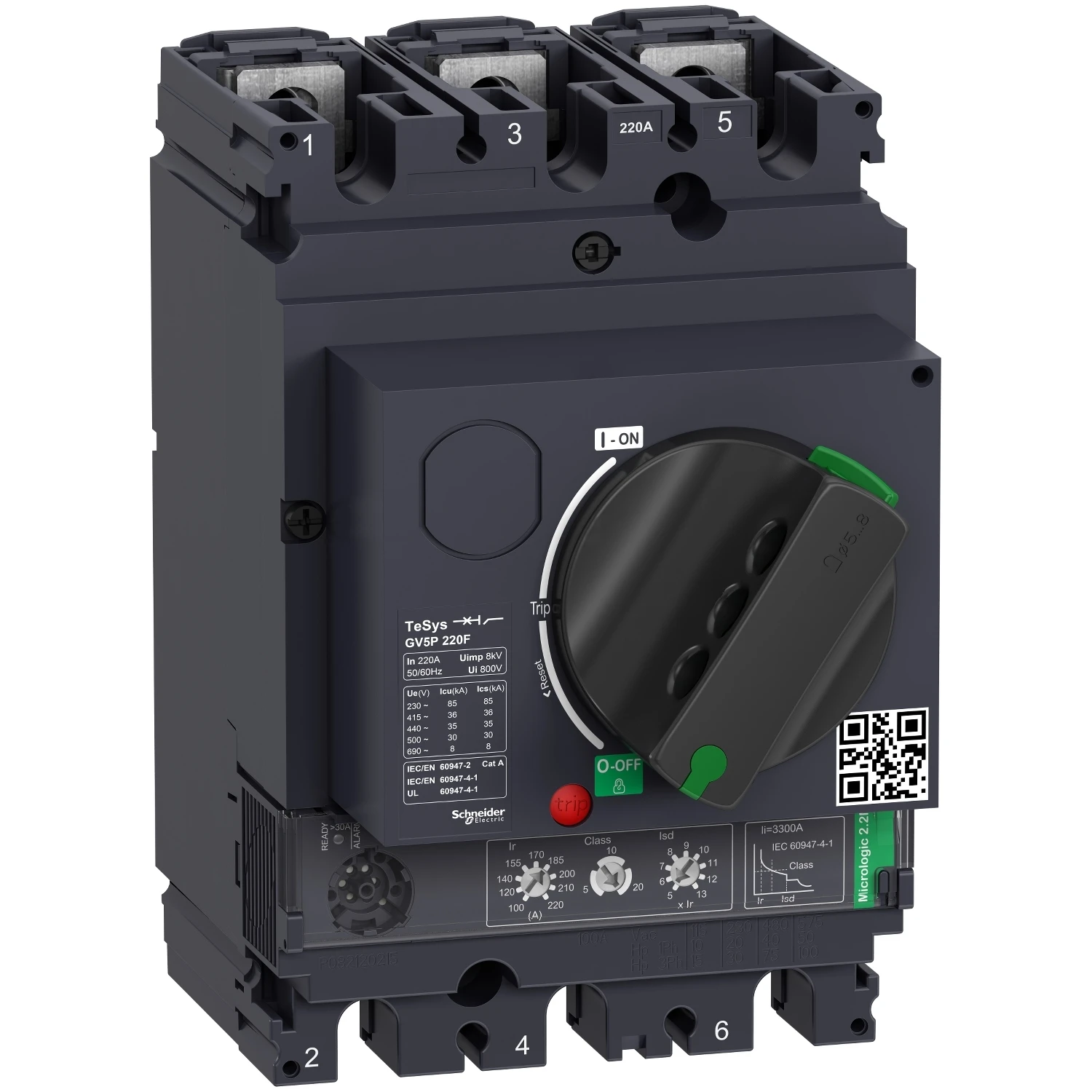

GV5P220F 3P 36KA MOTOR CB · · · TeSys GV motor circuit breaker, 3 poles (3P), 220A/690V, for protection of 3-phase motors 90-110kW@400V. · · It provides thermal magnetic protection and additional protections, breaking capacity Icu 36kA, start-stop control by rotary handle, connection for bars or cables with lugs (direct connection of cables with additional connectors). · · Thermal protection adjustable by dials with a setting current Ir in range 100-220A and a selectable tripping class 5, 10 or 20, magnetic protection at 15 In. · · Additional protections with fixed pick-up include short time delay protection Isd at 13 Ir, phase unbalance and loss protection. · · It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX).

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV5P220F Categories: , , Brand: Product Code: 2501231790

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 105.00 mm Height 161.00 mm Rated operation power at AC-3, 230 V 63.00 kW Rated short-circuit breaking capacity Icu at 400 V, AC 36.00 kA Number of poles 3.00 Rated permanent current Iu 220.00 A Rated operation power at AC-3, 400 V 110.00 kW Rated operating voltage 0.00 – 690.00 V Depth 155.00 mm Overload release current setting 100.00 – 220.00 A Adjustment range undelayed short-circuit release 3300.00 – 3300.00 A With integrated auxiliary switch No With integrated under voltage release No Phase failure sensitive Yes With thermal overload protection Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/420805
