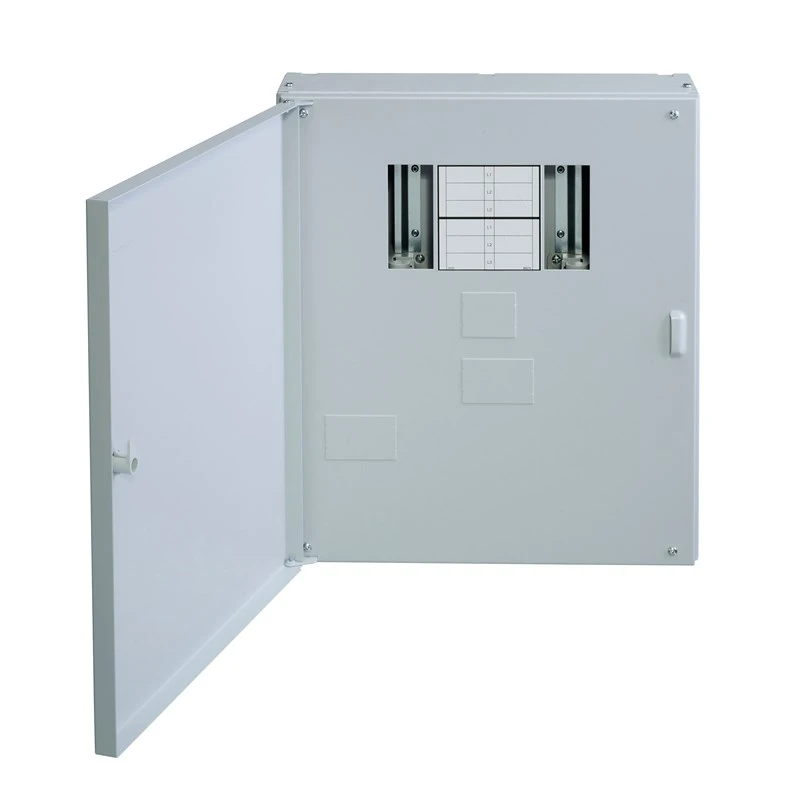

4-Way 125A Surface 3P+N Distribution Board
4-Way 125A Surface 3P+N Distribution Board

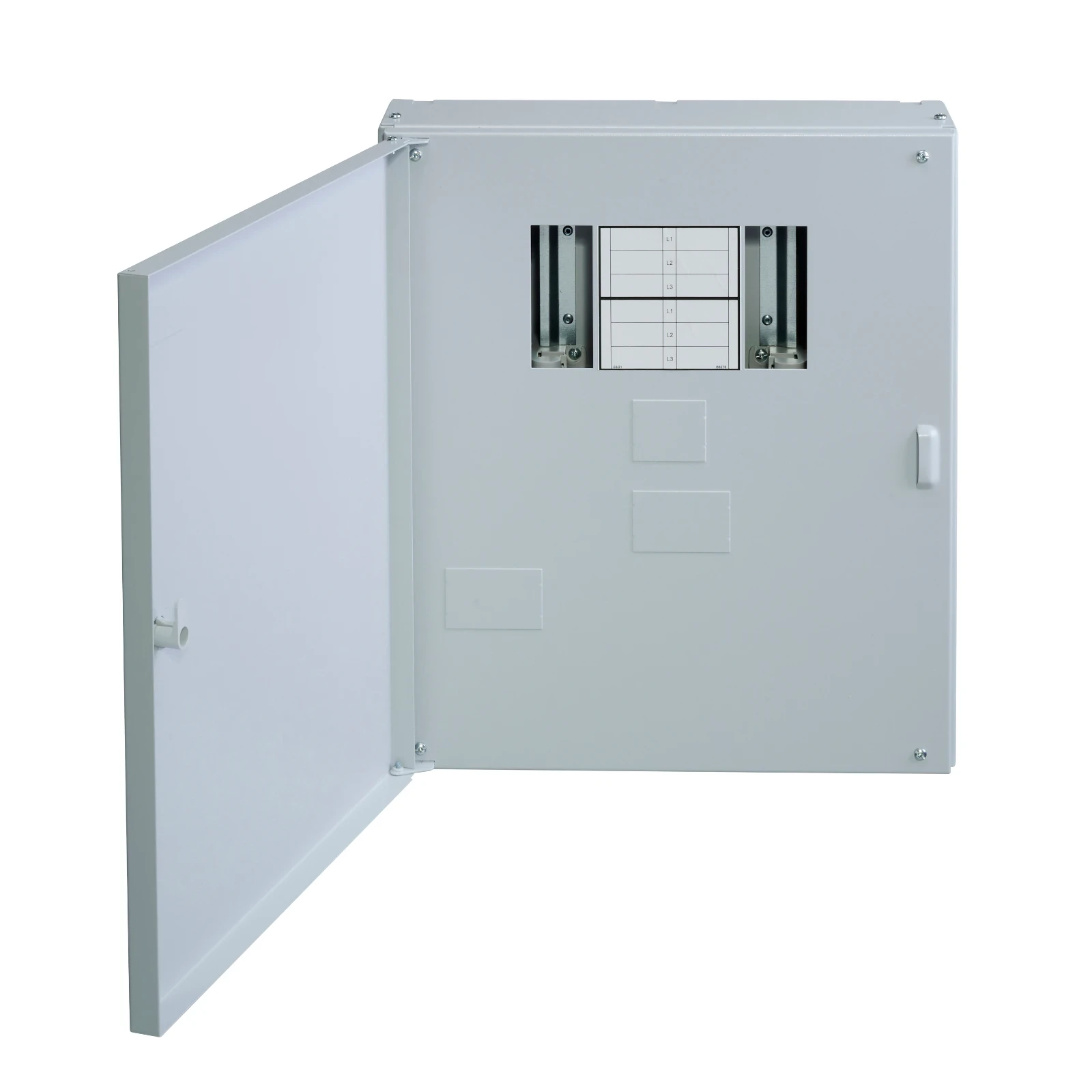

4-Way 125A Surface 3P+N Distribution Board - Image 2
4-Way 125A Surface 3P+N Distribution Board - Image 3

4-Way 125A Surface 3P+N Distribution Board

£193.66 Incl. VAT

· · 4W 3P+N Type “B” distribution board · · Switch disconnector,RCCB, or direct connection incomer options available · · Accepts Wylex 10kA and miniature 6kA final circuit protection devices; Single and Triple Pole MCBs from 6A to 63A, Single Pole RCBOs from 6A to 50A and AFDDs from 6A to 40A · · Accepts the Wylex NHCM125INMP (Pulsed Output/Modbus RTU), NHMID125INMP (MID) integral incoming meter kits or NHTNSP125L integral Type 2 surge protection kit · · RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHTN04L Categories: , , Brand: Part Number: 2501515359

Description

Technical Specifications  Technical Specifications Small distribution board equipped Width 430 mm Main switch rated current 125 A Number of outgoing ways 4 Number of phases 3 Depth 155 mm Height 490 mm With transparent cover No Extension possible Yes Lockable Yes · Technical Data Sheet – Click to Download
