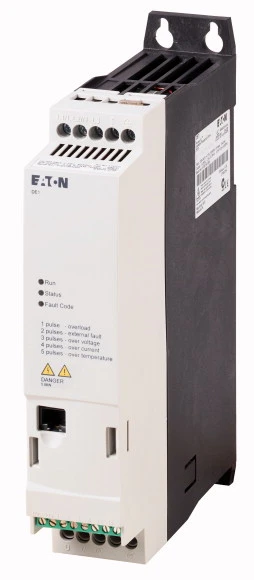

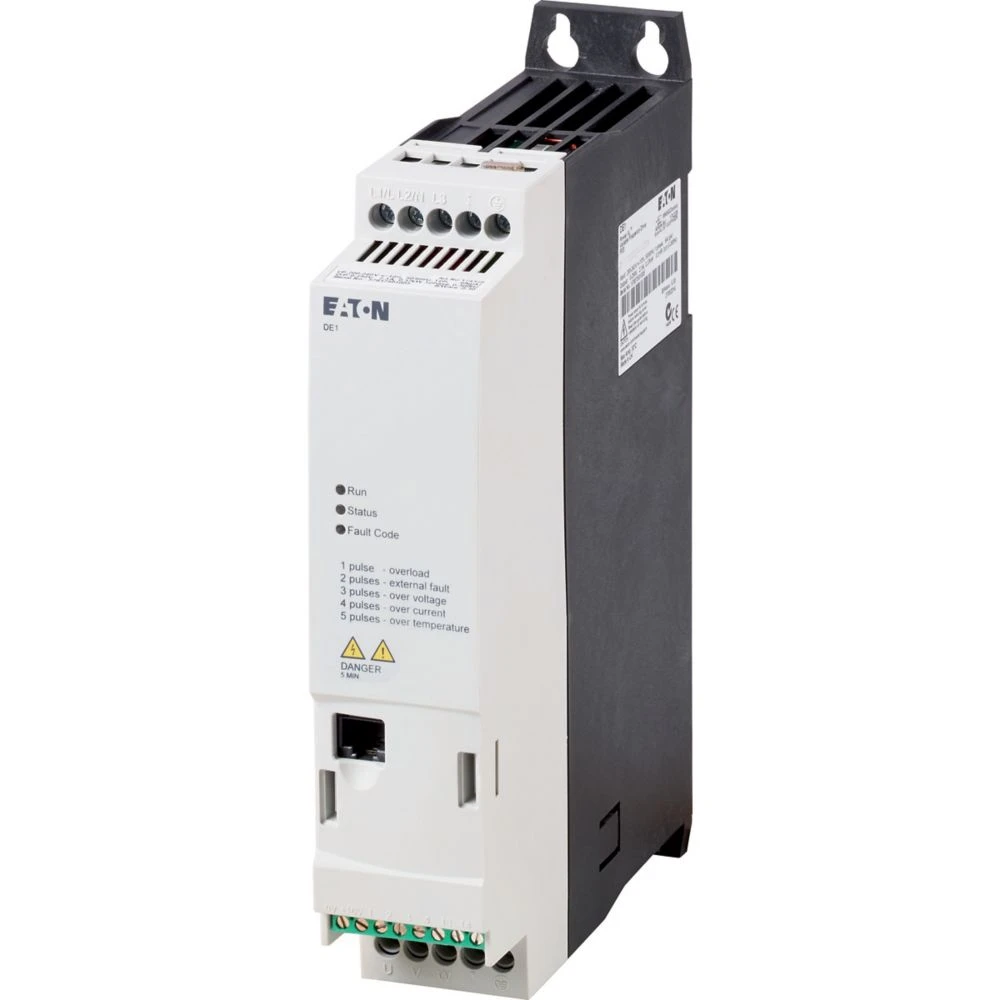

400V Ac 2.1A 3 Phase PowerXL DE1 Variable Speed Starter
£291.60 Incl. VAT
The Moeller series PowerXL DE1 was designed for customers who have basic applications but still require variable frequency and advanced motor protection. The PowerXL DE1 allows customers to simplify their design and reduce installation and commissioning time while introducing an innovative solution to their system. · · · Fit & forget design makes this style of starter perfect for less complicated installations · · Available in power rating varying from 0.25kW to 7.5kW, with both single & three phase options available · · Utilises SmartWire-DT technology, making installation even simpler to other compatible products · · Fitted with a radio interference suppression filter · · Green Premium compliant (RoHS/REACh). · · Poles description 3 pole
Out of stock
Description
Technical Specifications Technical Specifications Frequency converter =< 1 kV Degree of protection (IP rating) IP20 Mains frequency 50/60 Hz Number of phases input 3 Number of phases output 3 Type of converter U converter Max. output frequency 300 Hz Relative symmetric net frequency tolerance 10 % Max. output at quadratic load at rated output voltage 0.75 kW Relative symmetric net voltage tolerance 10 % Max. output at linear load at rated output voltage 0.75 kW Depth 169 mm Height 230 mm Width 45 mm Number of HW-interfaces RS-485 1 Number of HW-interfaces other 0 Number of HW-interfaces parallel 0 Number of HW-interfaces USB 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-232 0 Max. output voltage 500 V Number of HW-interfaces PROFINET 0 Number of digital inputs 4 Power consumption 28 W Number of digital outputs 0 Number of analogue outputs 0 Number of analogue inputs 1 Number of HW-interfaces industrial Ethernet 0 Nominal output current I2N 2.1 A With control unit No With optical interface No Supporting protocol for PROFIBUS No Supporting protocol for CAN No Supporting protocol for LON No Supporting protocol for TCP/IP No Mains voltage 380 – 480 V Supporting protocol for INTERBUS No Supporting protocol for ASI No Supporting protocol for KNX No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for MODBUS Yes Supporting protocol for EtherNet/IP Yes Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for SERCOS No 4-quadrant operation possible No With PC connection Yes Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET IO No Supporting protocol for SUCONET No Supporting protocol for other bus systems Yes Supporting protocol for INTERBUS-Safety No Integrated breaking resistance No Application in industrial area permitted Yes Supporting protocol for PROFIsafe No Supporting protocol for PROFINET CBA No Supporting protocol for SafetyBUS p No Supporting protocol for BACnet No Application in domestic- and commercial area permitted Yes · Technical Data Sheet – Click to Download
